Automatic Light Control: Notes

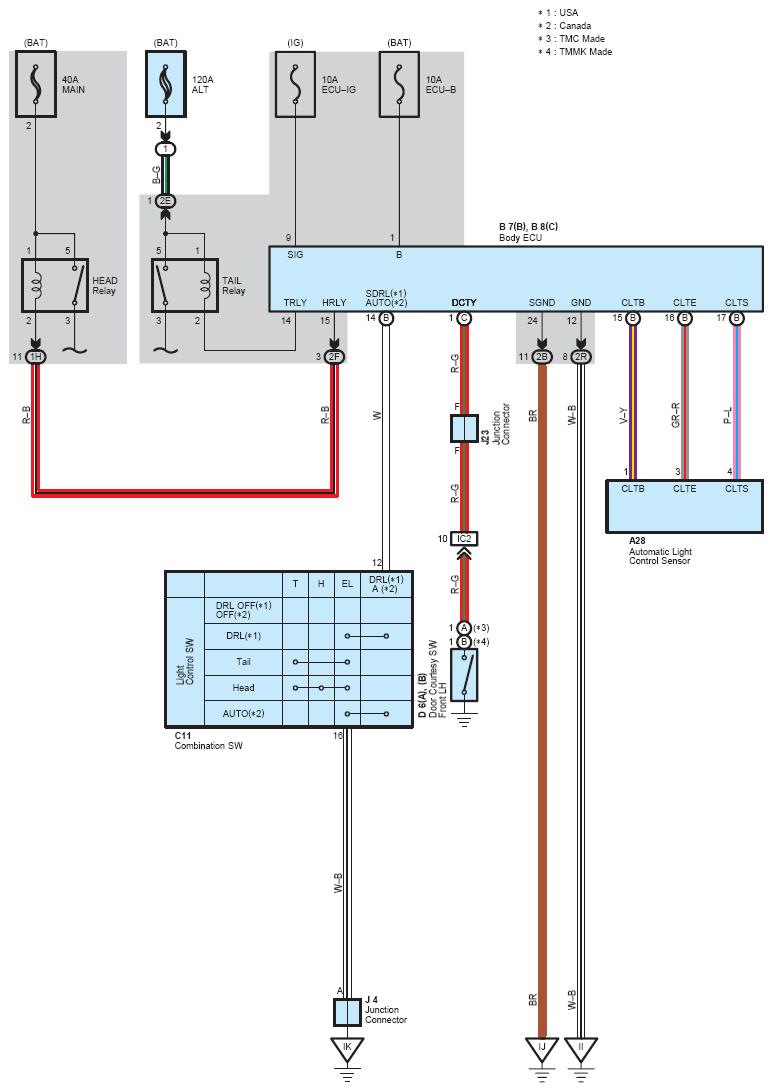

Fig 1: Automatic Light Control System Wiring Diagram
G08775589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
