Circuit Description

The Intake Manifold Runner Valve (IMRV) motor is driven by the ECM. The IMRV motor opens and closes the IMRV.

When the current of the IMRV motor deviates from the standard range, the ECM determines that there is a malfunction.

The related DTCs are P2004 and P2006 and P2014 , P2016 and P2017 .

NOTE: Do not disassemble the IMRV and the IMRV motor.

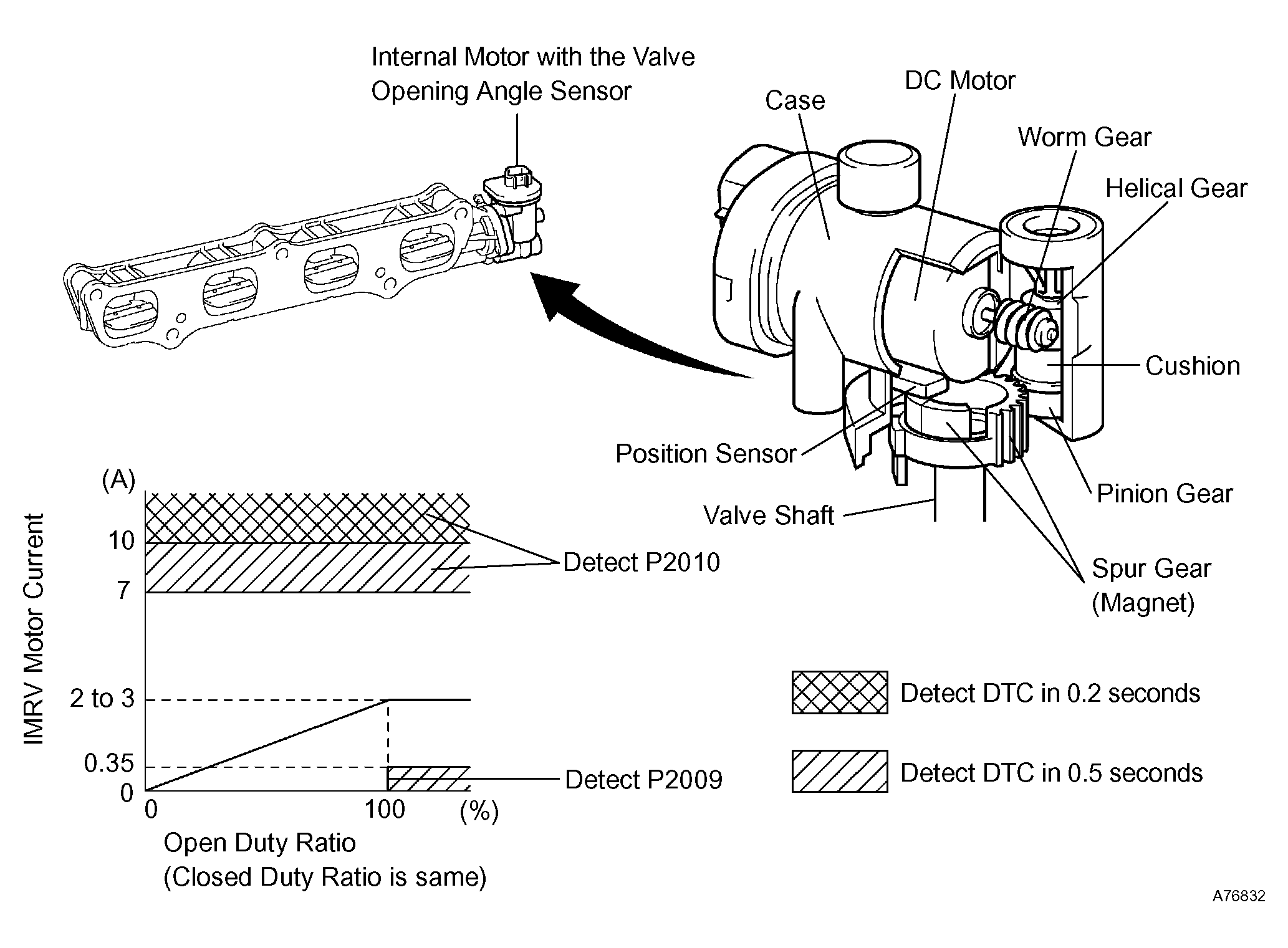

Fig 1: Identifying IMRV Motor Operation Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

DTC REFERENCE TABLE

DTC No.	DTC Detection Condition	Trouble Area
P2009	Detecting open (in the motor or in the motor circuit) Condition (a) and (b) continue for 1 second: IMRV motor output duty is 100 % IMRV motor current is less than 0.35 A	Open in IMRV motor circuit IMRV motor ECM
P2010	Detecting excess current (in the motor or in the motor circuit) Condition (a) continues for 0.2 seconds: IMRV motor current is 10 A or more Condition (a) continues for 0.5 seconds: IMRV motor current is 7 A or more	Short in IMRV motor circuit IMRV motor ECM

DTC No.

DTC Detection Condition

Trouble Area

P2009

Detecting open (in the motor or in the motor circuit)
Condition (a) and (b) continue for 1 second:

IMRV motor output duty is 100 %
IMRV motor current is less than 0.35 A

Open in IMRV motor circuit
IMRV motor
ECM

P2010

Detecting excess current (in the motor or in the motor circuit)

Condition (a) continues for 0.2 seconds:

IMRV motor current is 10 A or more

Condition (a) continues for 0.5 seconds:

IMRV motor current is 7 A or more

Short in IMRV motor circuit
IMRV motor
ECM

HINT:

After repair is completed, you can use the hand-held tester to confirm the IACV POSITION (IMRV position sensor output voltage) while performing the IACV MOTOR (IMRV motor) of the ACTIVE TEST.

Reference (Normal condition):

IACV MOTOR - OPERATION TABLE

IACV MOTOR operation	IACV POSITION
100 %	3.2 to 4.8 V
-100 %	0.2 to 1.0 V
