DTC P0110 Intake Air Temperature Circuit; DTC P0112 Intake Air Temperature Circuit Low Input; DTC P0113 Intake Air Temperature Circuit High Input: Wiring Diagram

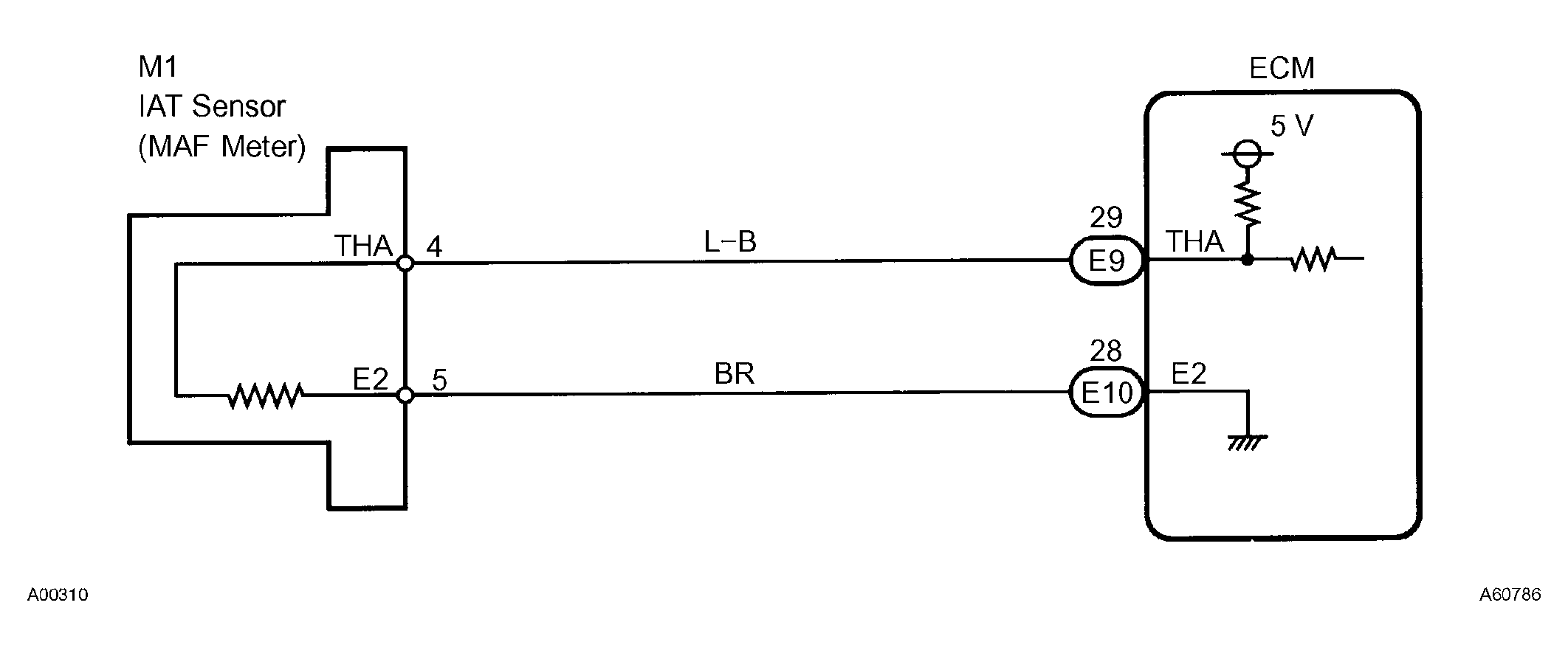

Fig 1: DTCs P0110, P0112, P0113 - Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
