Navigation and Audio System: Notes

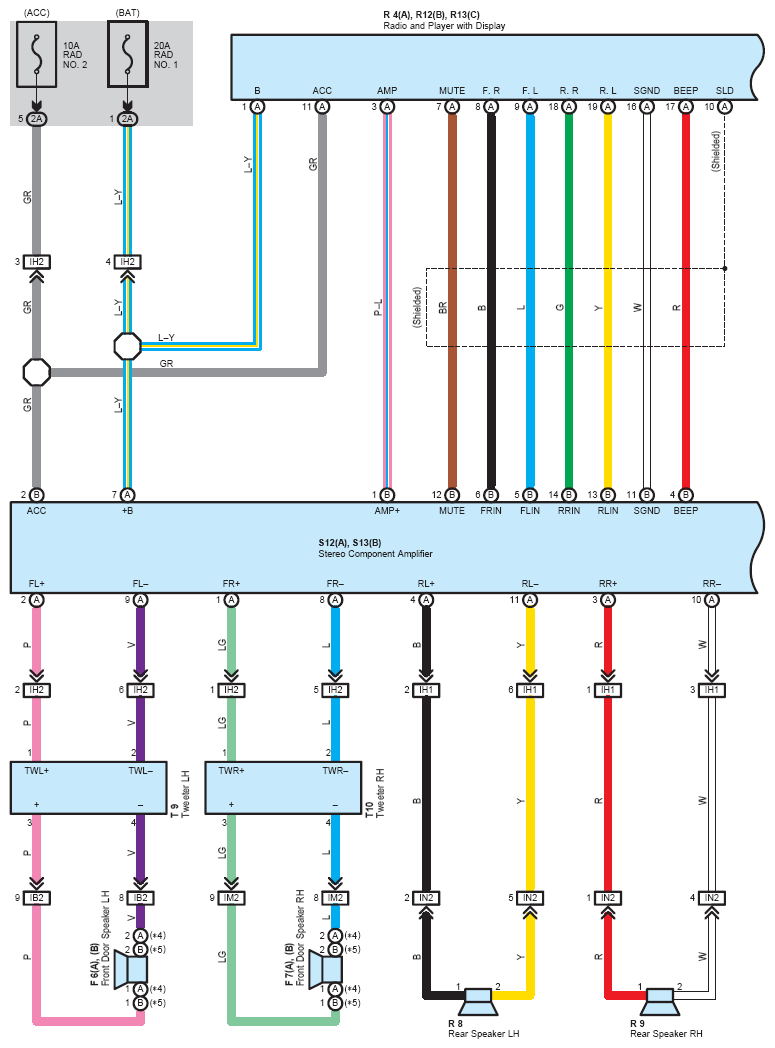

Fig 1: Navigation And Audio System Wiring Diagram (1 Of 2)
G08775656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

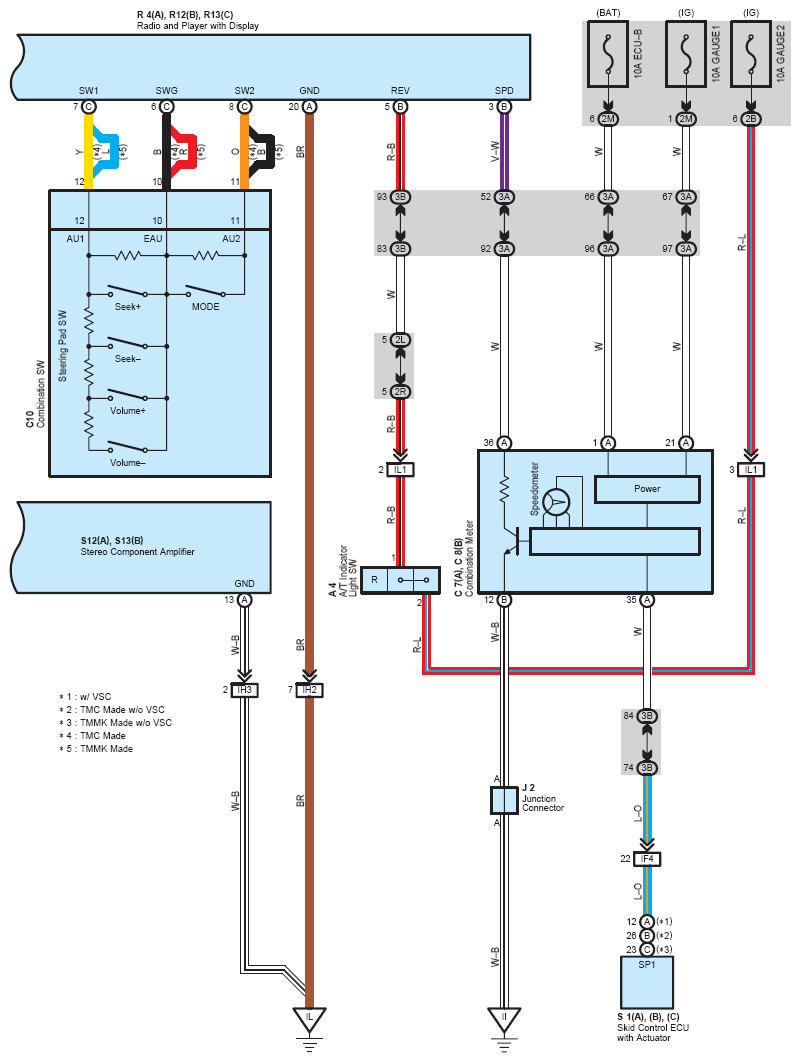

Fig 2: Navigation And Audio System Wiring Diagram (2 Of 2)
G08775657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
