Cruise Control for 2ZZ-GE: Notes

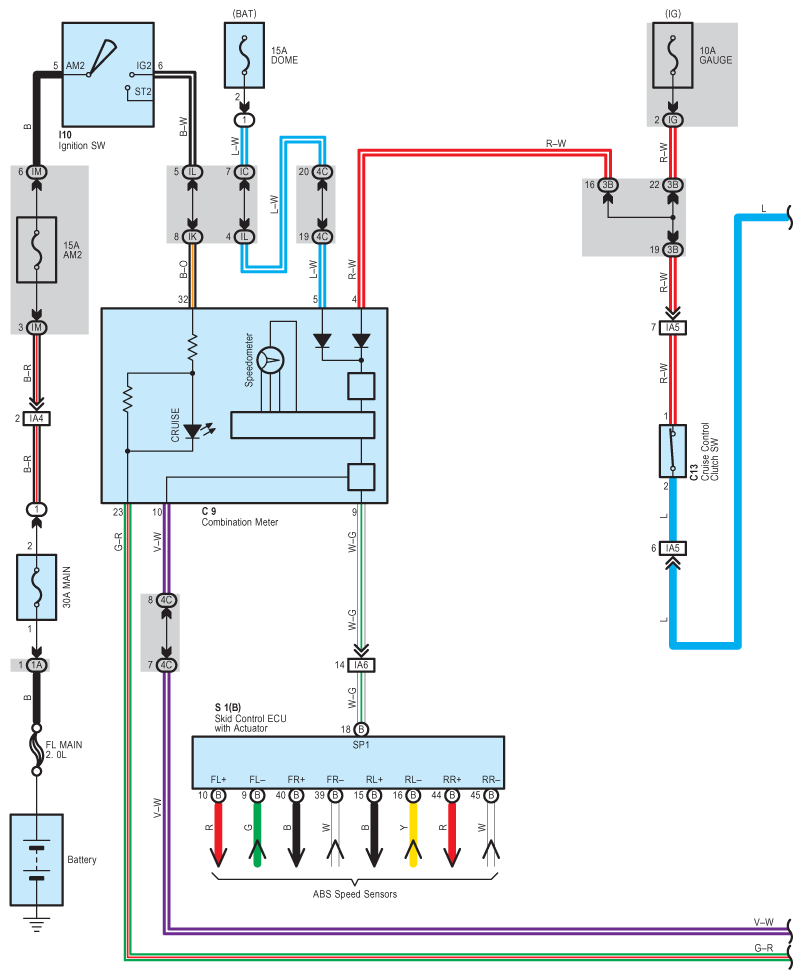

Fig 1: Cruise Control System (For 2ZZ-GE) Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

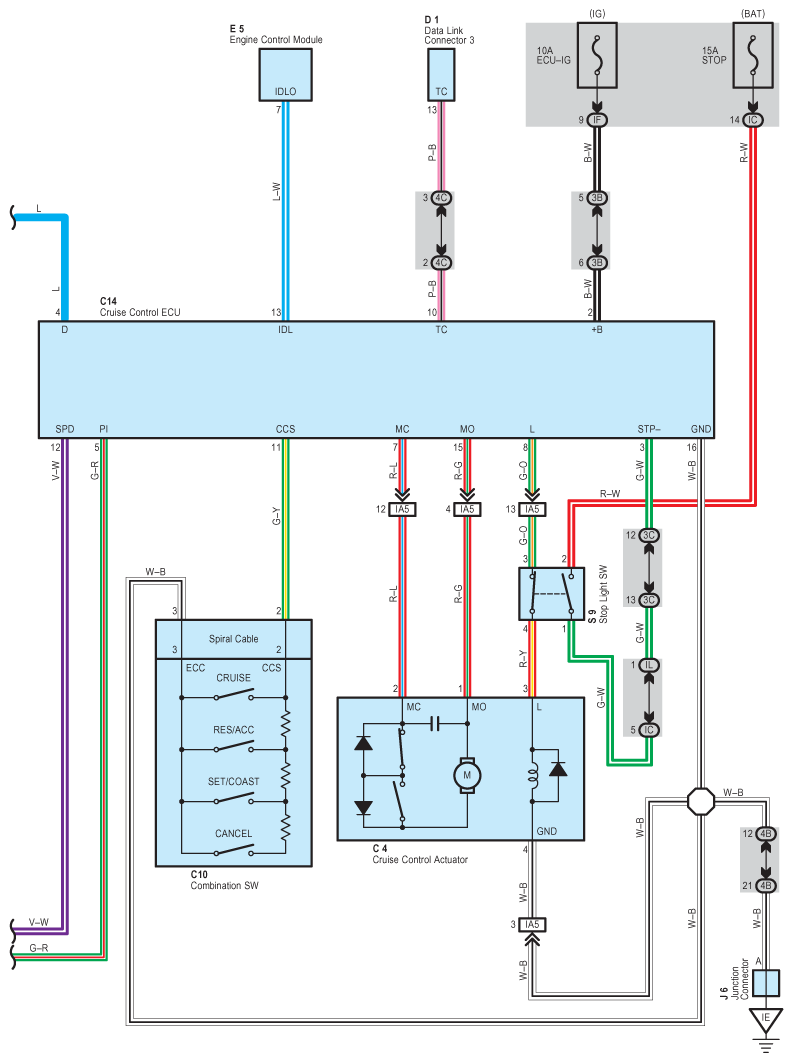

Fig 2: Cruise Control System (For 2ZZ-GE) Wiring Diagram (2 Of 2)
