Combination Meter: Notes

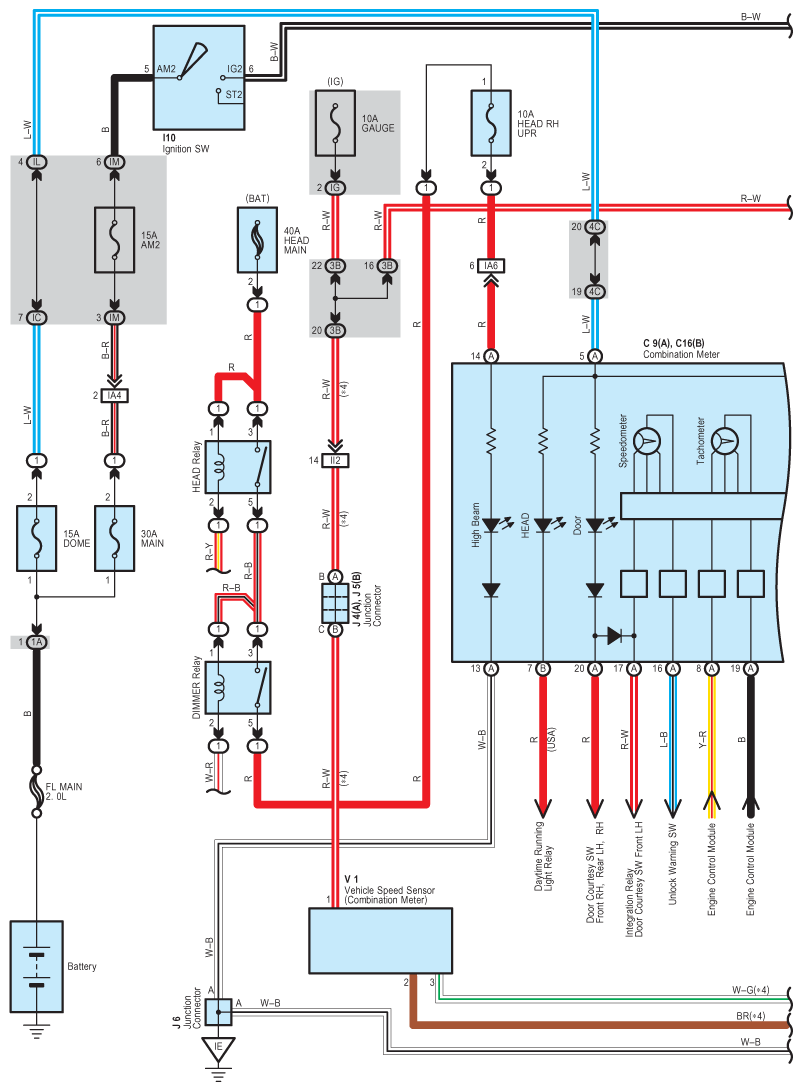

Fig 1: Combination Meter System Wiring Diagram (1 Of 4)
G08779739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

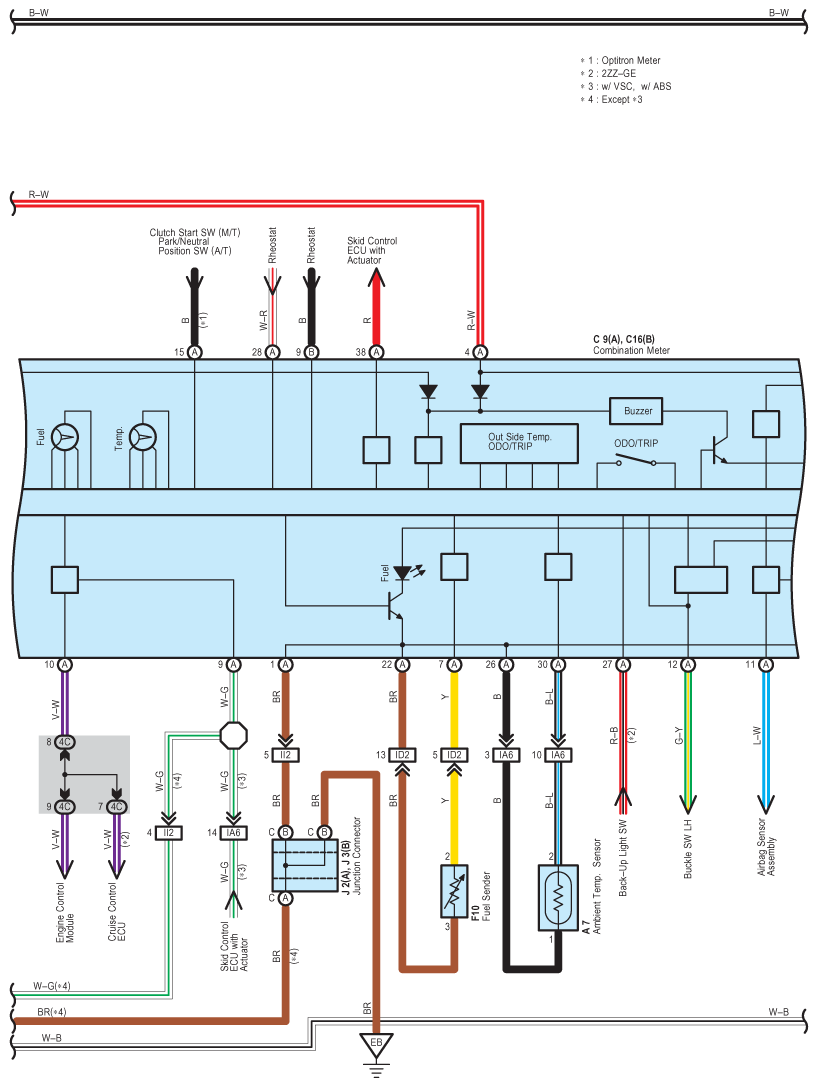

Fig 2: Combination Meter System Wiring Diagram (2 Of 4)
G08779740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

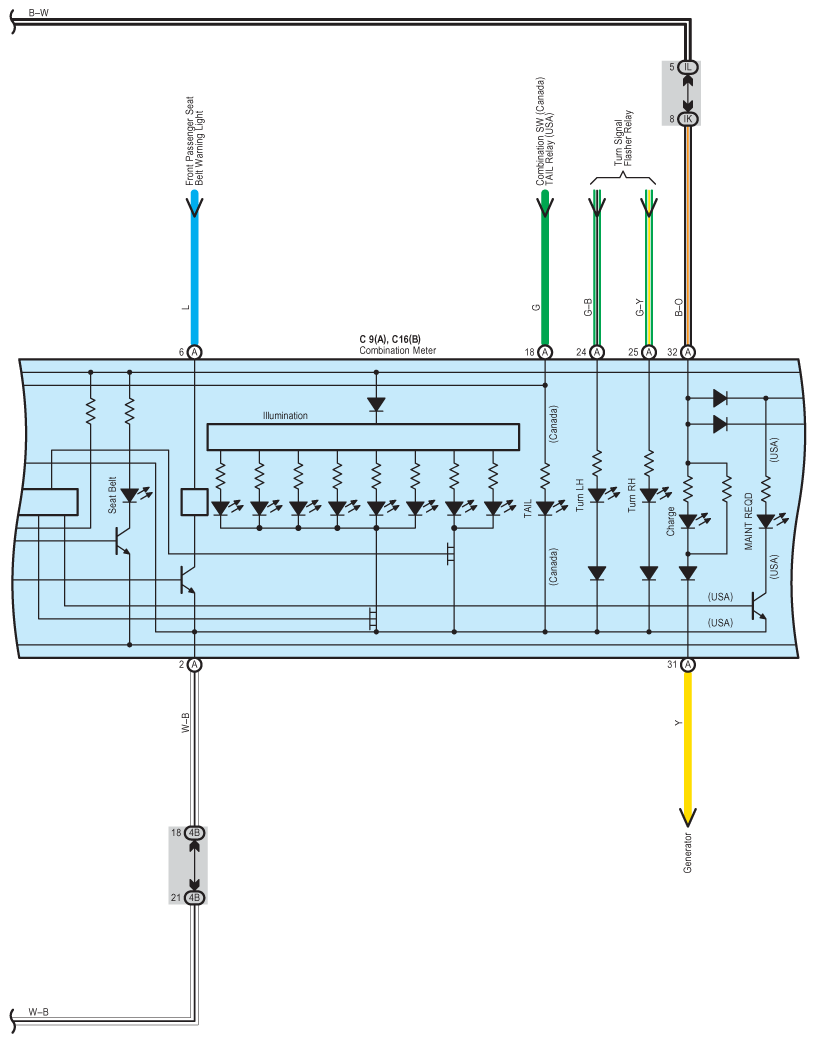

Fig 3: Combination Meter System Wiring Diagram (3 Of 4)
G08779741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

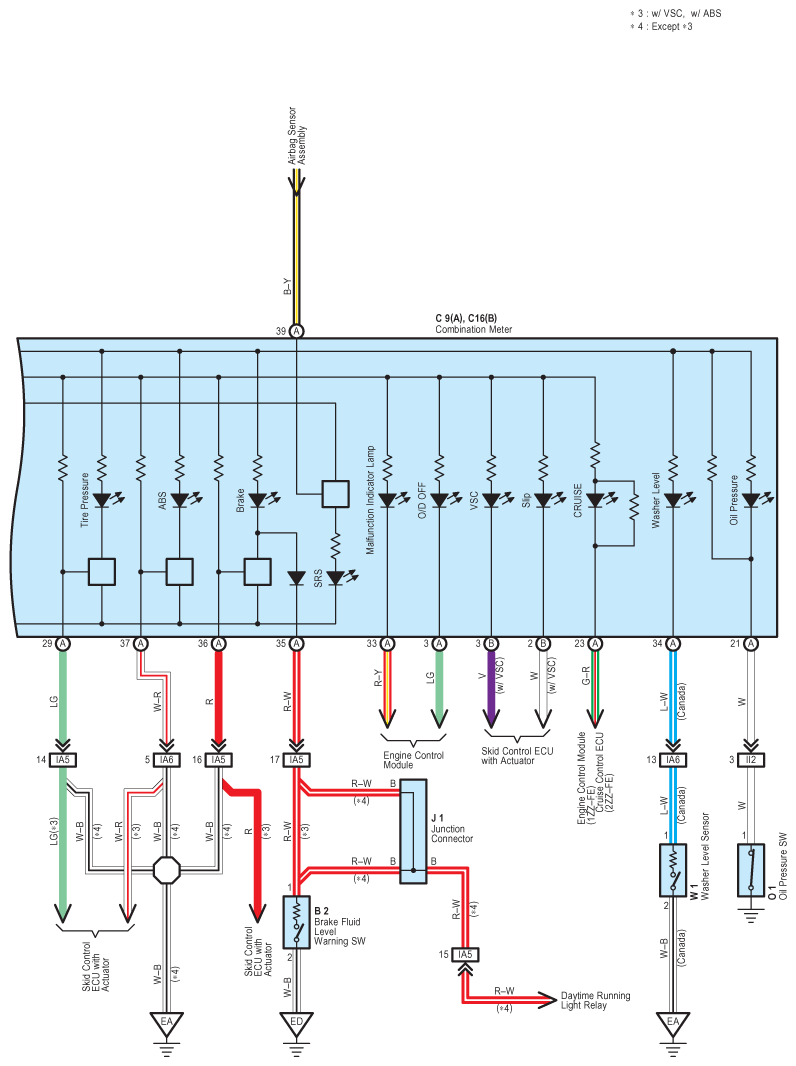

Fig 4: Combination Meter System Wiring Diagram (4 Of 4)
G08779742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
