Engine Control for 2ZZ-GE: Notes

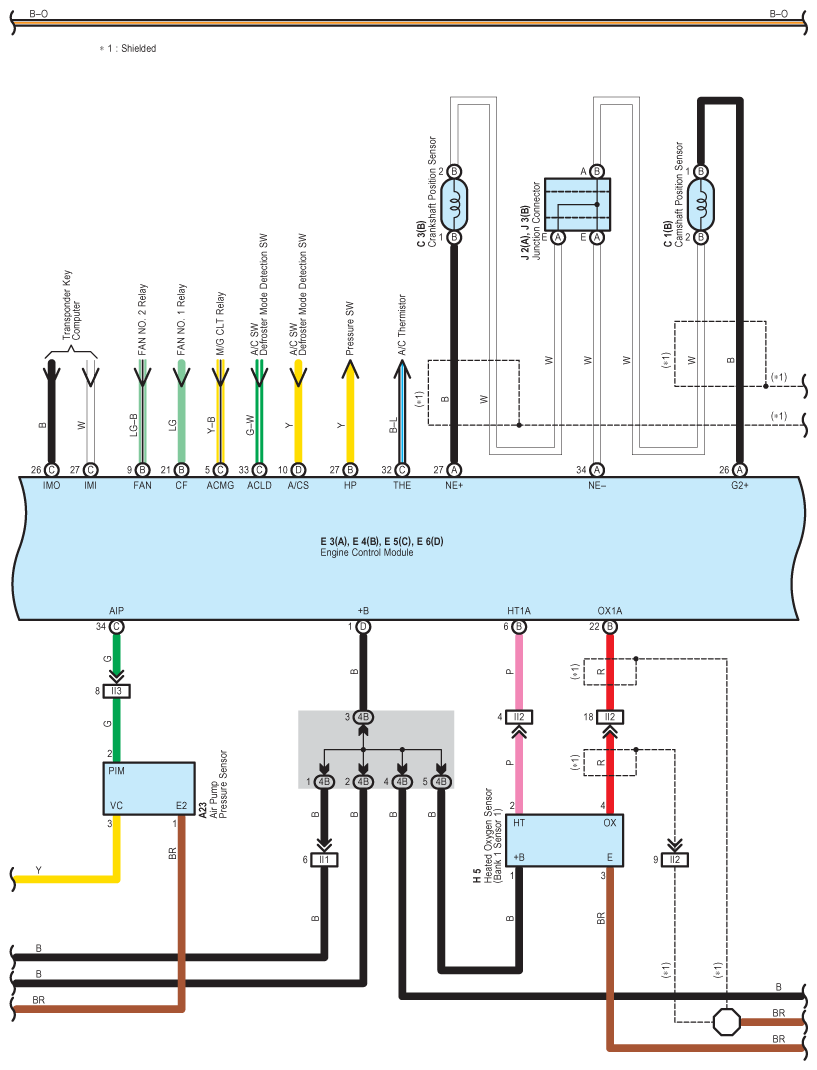

Fig 1: Engine Control System (For 2ZZ-GE) Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

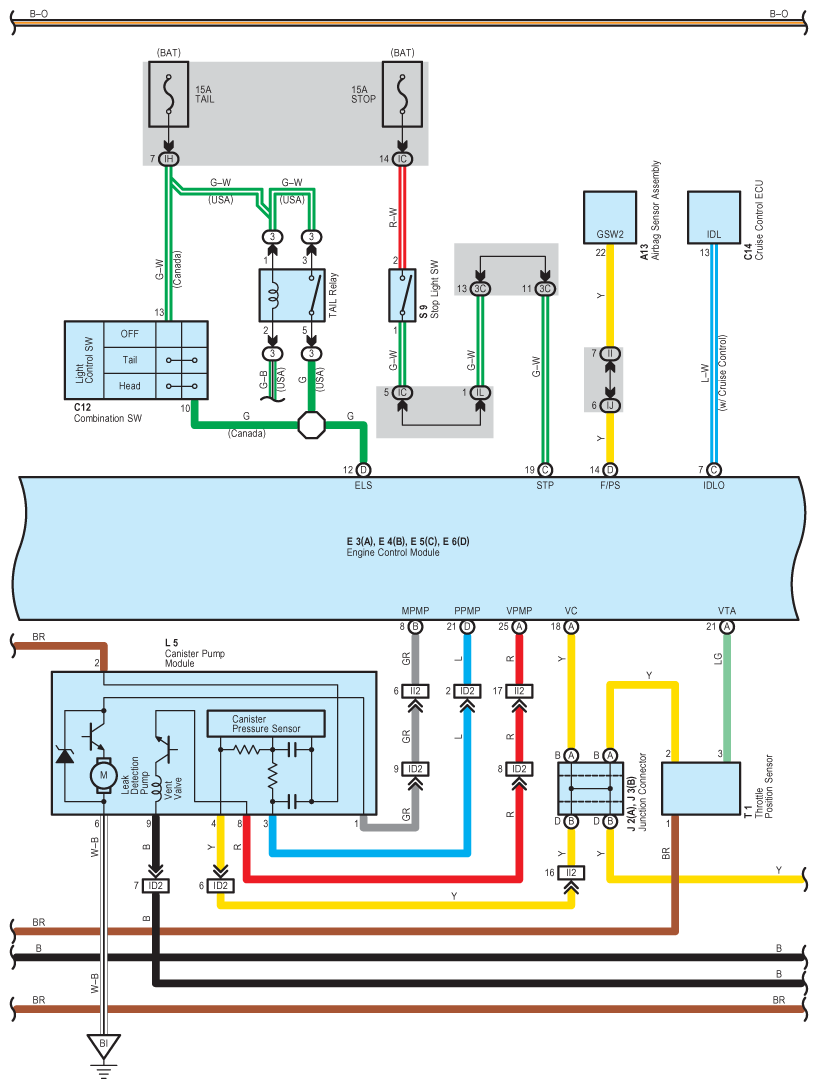

Fig 2: Engine Control System (For 2ZZ-GE) Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

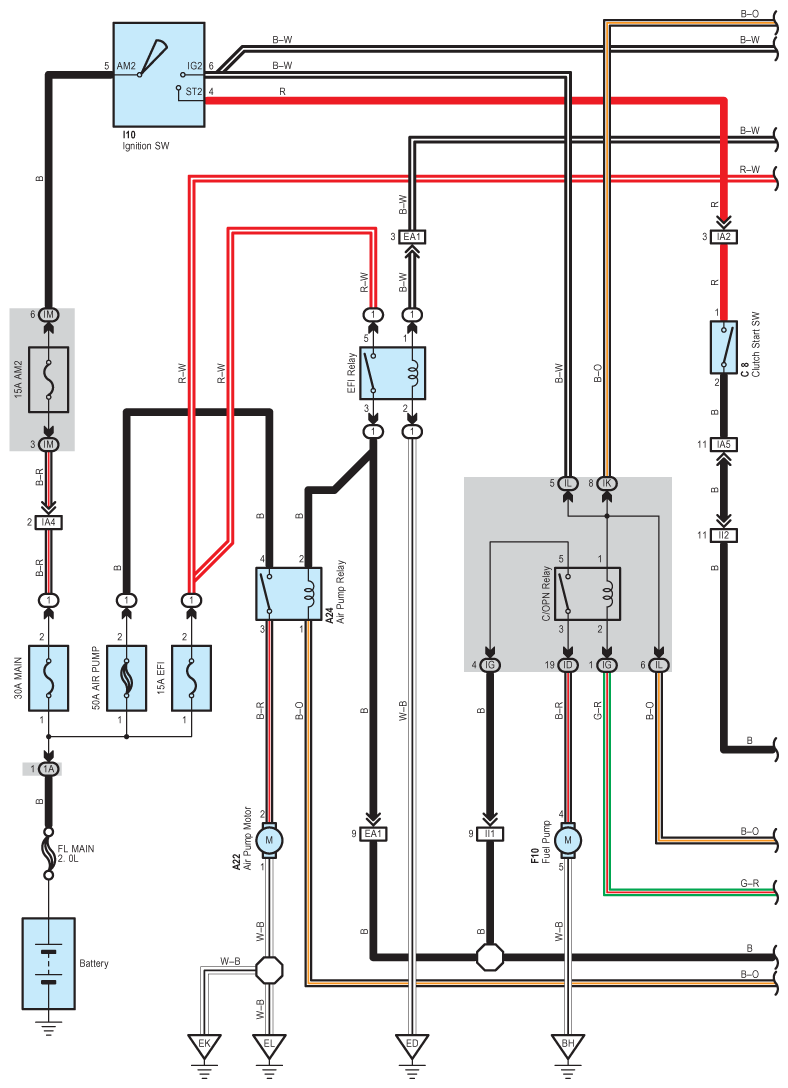

Fig 3: Engine Control System (For 2ZZ-GE) Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

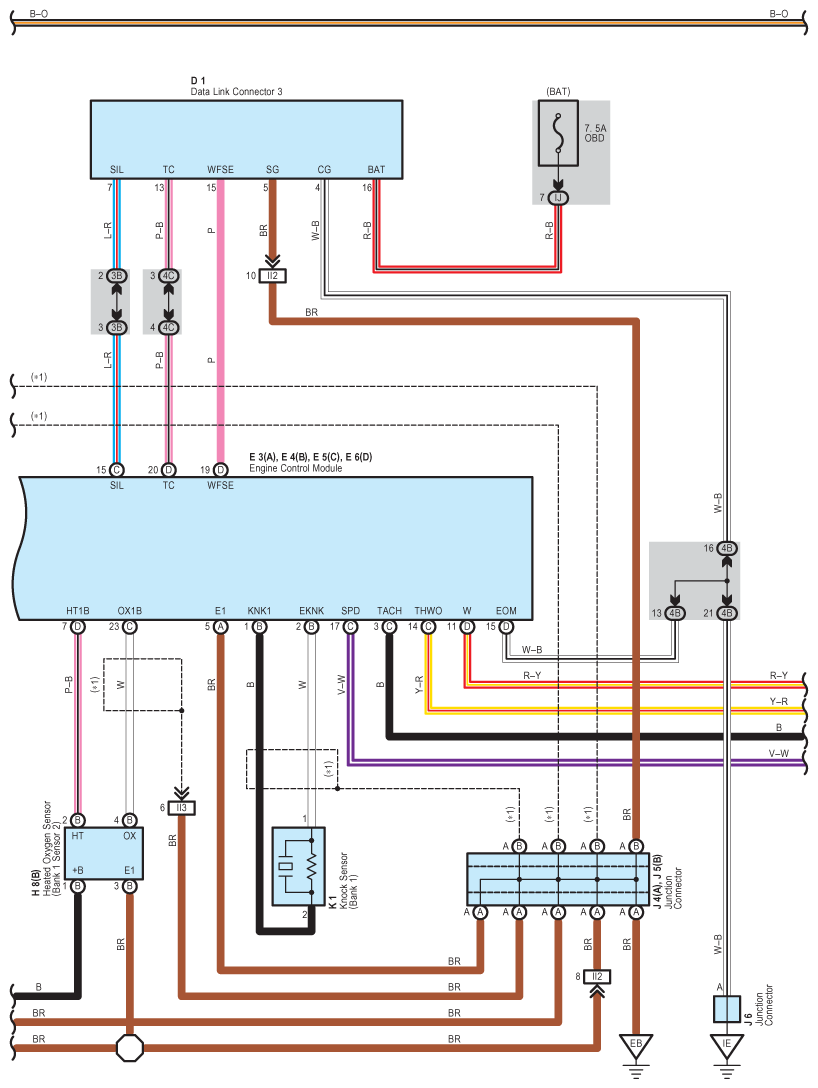

Fig 4: Engine Control System (For 2ZZ-GE) Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

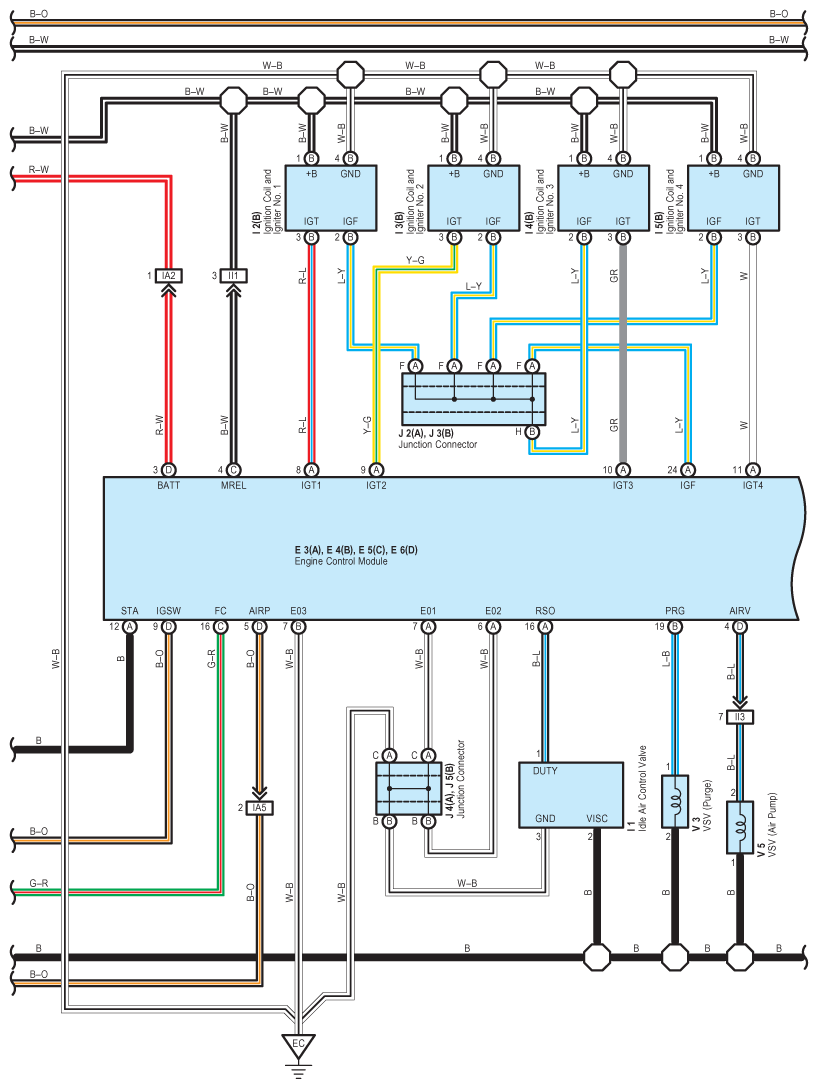

Fig 5: Engine Control System (For 2ZZ-GE) Wiring Diagram (5 Of 7)

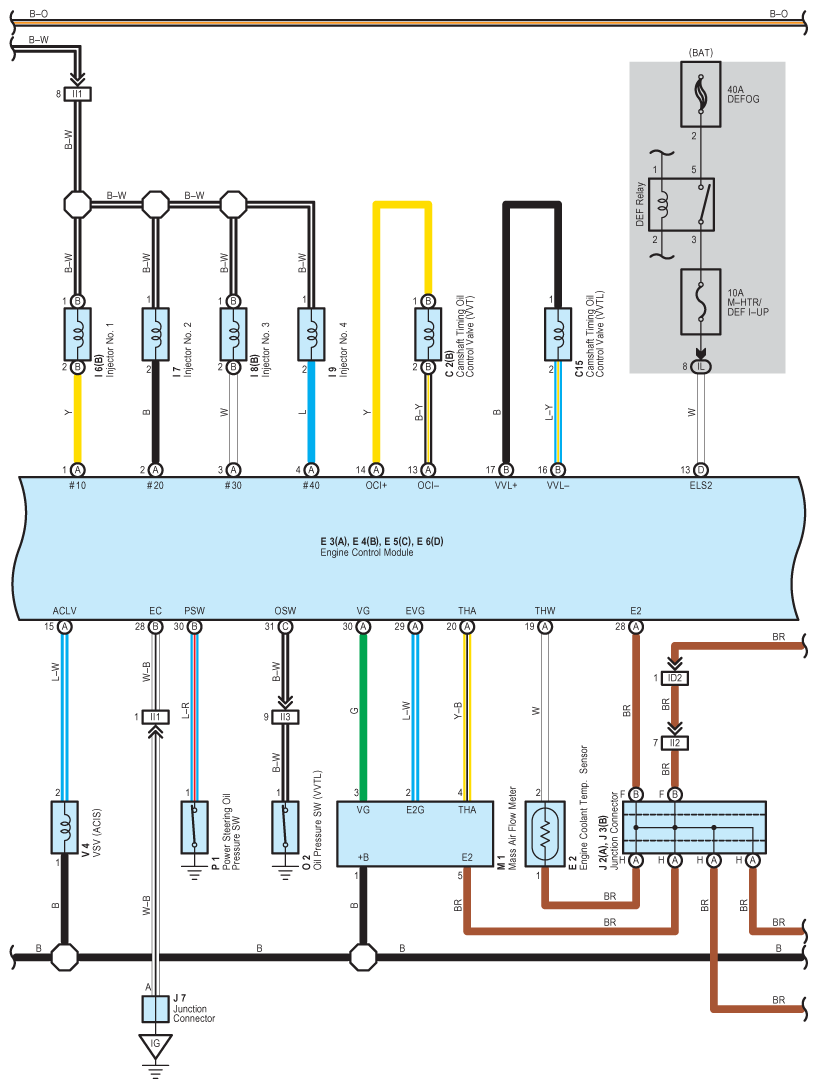

Fig 6: Engine Control System (For 2ZZ-GE) Wiring Diagram (6 Of 7)

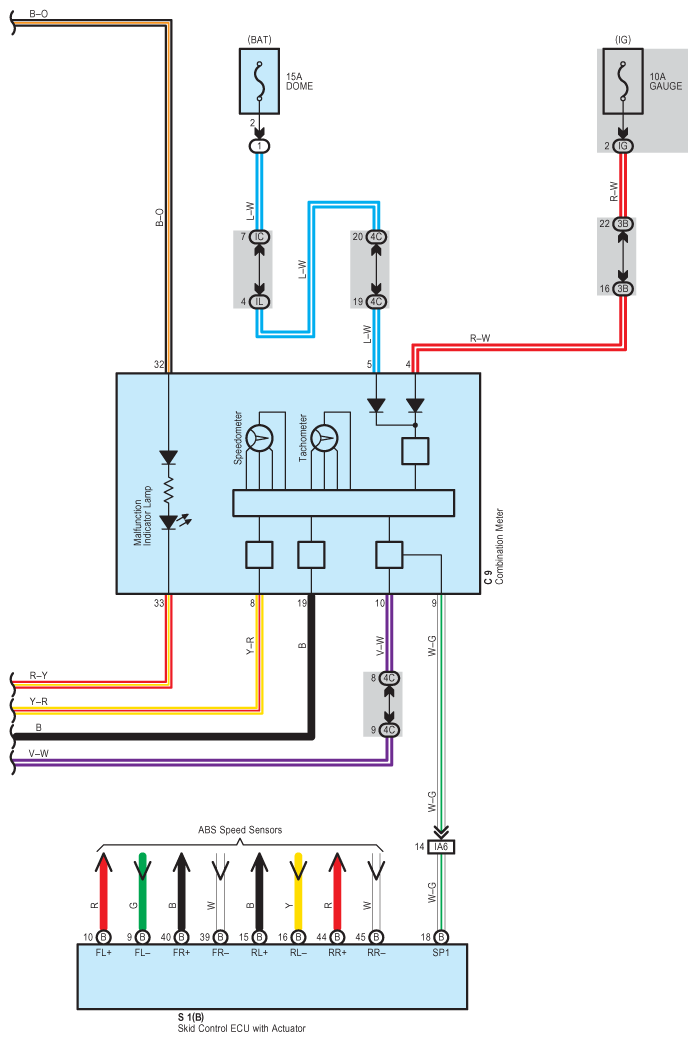

Fig 7: Engine Control System (For 2ZZ-GE) Wiring Diagram (7 Of 7)
