Control Valve Assembly: Inspection

  1. INSPECT CONTROL VALVE SOLENOID
    1. Disconnect the control valve assembly connector.
    2. Check continuity between terminals 2 and 1, 3, 4, 5 of the control valve assembly connector.

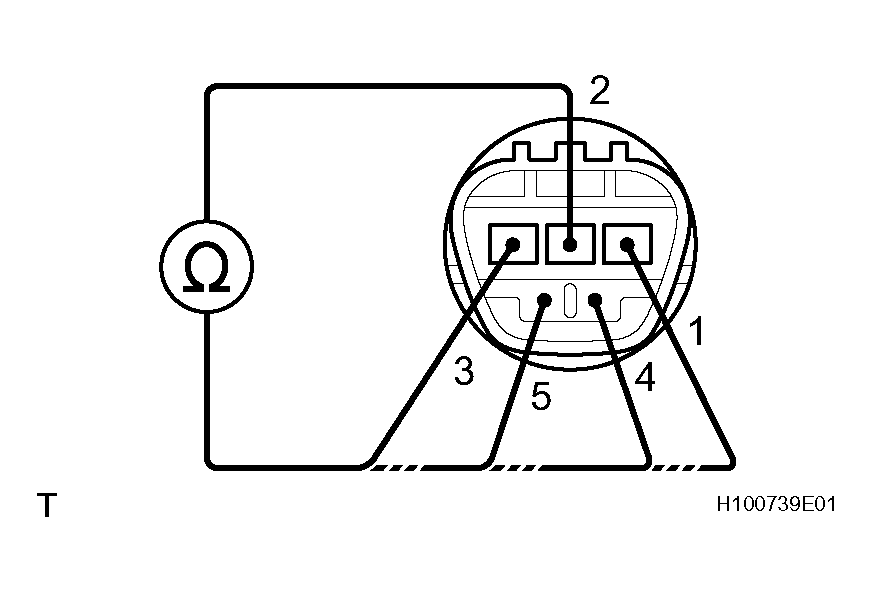

      Fig 1: Identifying Control Valve Assembly Connector
      G04437507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
