Height Control Accumulator: Components

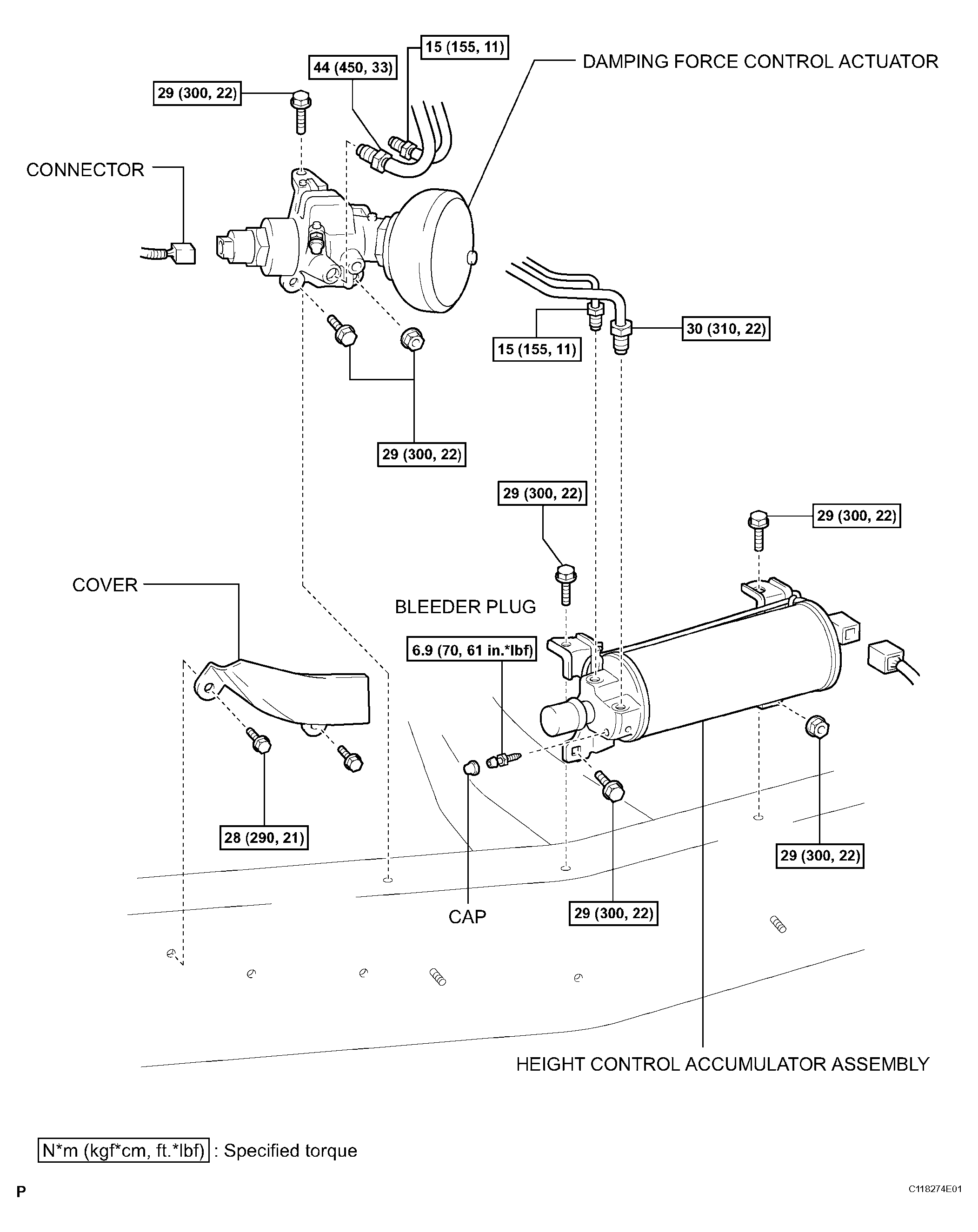

Fig 1: Height Control Accumulator Replacement Components With Torque Specifications
G04437508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
