Height Control Sensor: Inspection

  1. INSPECT FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY
    1. Disconnect the height control sensor connector.
    2. Remove the height control sensor.
    3. Connect 3 dry batteries of 1.5 V in series.
    4. Connect terminal 2 to the batteries' positive (+) terminal, and terminal 3 to the batteries' negative (-) terminal, then apply voltage about 4.5 V between terminals 2 and 3.
    5. Measure the voltage between terminals 1 and 3, when the height control sensor link is slowly moved up and down.

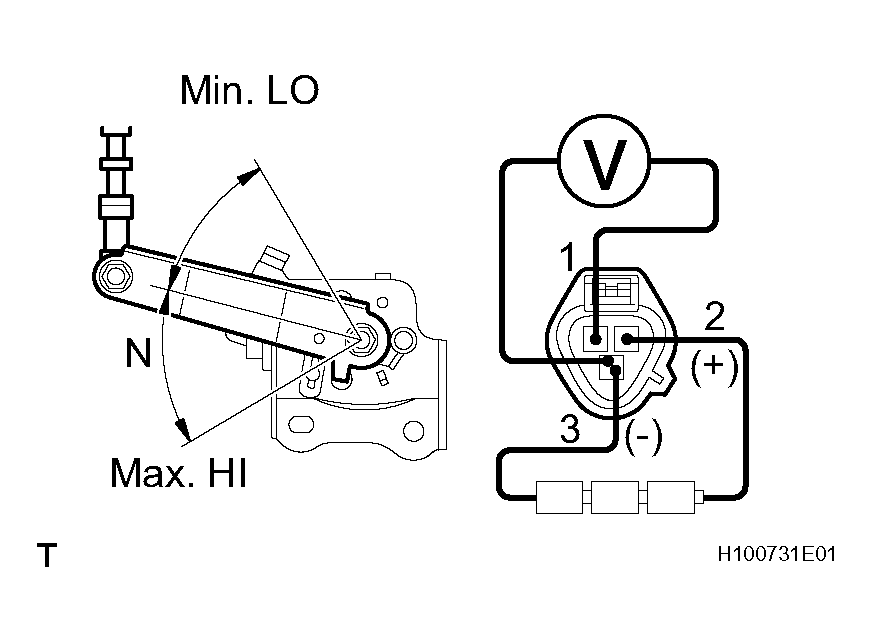

      Fig 1: Measuring Voltage Between Terminals 1 & 3
      G04437527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      SENSOR VOLTAGE SPECIFICATION

      Sensor Link Position Voltage
      Max. HI Approx. 4.05 V
      N Approx. 2.25 V
      Min. LO Approx. 0.45 V
  2. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
    1. Disconnect the height control sensor connector.
    2. Remove the height control sensor.
    3. Connect 3 dry batteries of 1.5 V in series.
    4. Connect terminal 1 to the batteries' positive (+) terminal, and terminal 3 to the batteries' negative (-) terminal, then apply voltage about 4.5 V between terminals 2 and 3.
    5. Measure the voltage between terminals 2 and 3, when the height control sensor link is slowly moved up and down.

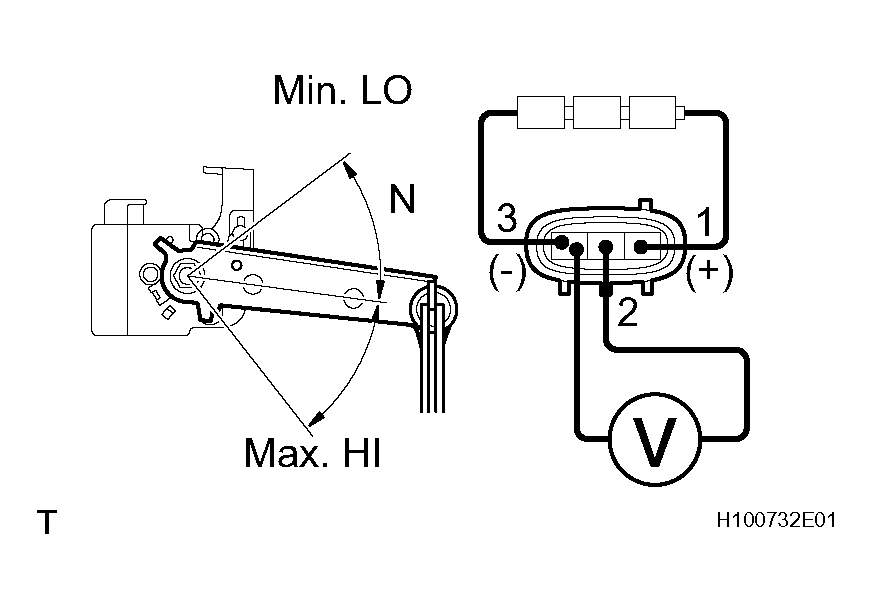

      Fig 2: Measuring Voltage Between Terminals 2 & 3
      G04437528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      SENSOR VOLTAGE SPECIFICATION

      Sensor Link Position Voltage
      Max. HI Approx. 4.05 V
      N Approx. 2.25 V
      Min. LO Approx. 0.45 V
