Height Control Sensor: Removal

REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY
1. Remove the front wheel.
  Torque: 131 N*m (1,340 kgf*cm, 97 ft.*lbf)
2. Disconnect the connector.
3. Remove the front height control sensor.
  1. Place matchmarks on the height control sensor link and front upper suspension arm.
  2. Remove the nut and disconnect the height control sensor link.
    Torque: 5.6 N*m (57 kgf*cm, 49 in.*lbf)
  3. Remove the 2 bolts and height control sensor.
    Torque: 28 N*m (285 kgf*cm, 21 ft.*lbf)

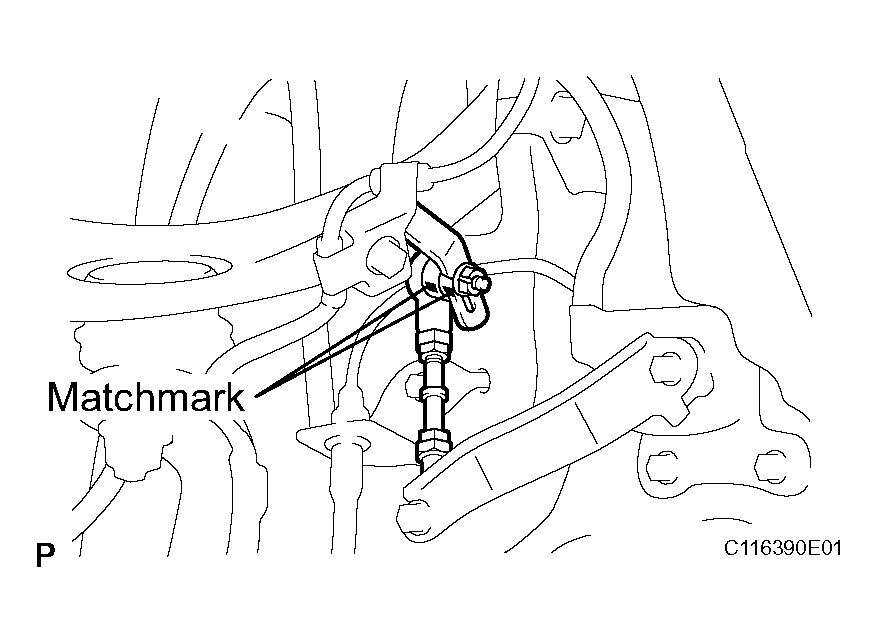

    Fig 1: Placing Matchmarks On Height Control Sensor Link
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
1. Remove the rear wheel.
  Torque: 131 N*m (1,340 kgf*cm, 97 ft.*lbf)
2. Disconnect the connector.
3. Remove the rear height control sensor.
  1. Place matchmarks on the height control sensor link and rear upper control arm.
  2. Remove the nut and disconnect the height control sensor link from the rear upper arm.
    Torque: 5.6 N*m (57 kgf*cm, 49 in.*lbf)
  3. Remove the 2 bolts and height control sensor.
    Torque: 28 N*m (285 kgf*cm, 21 ft.*lbf)

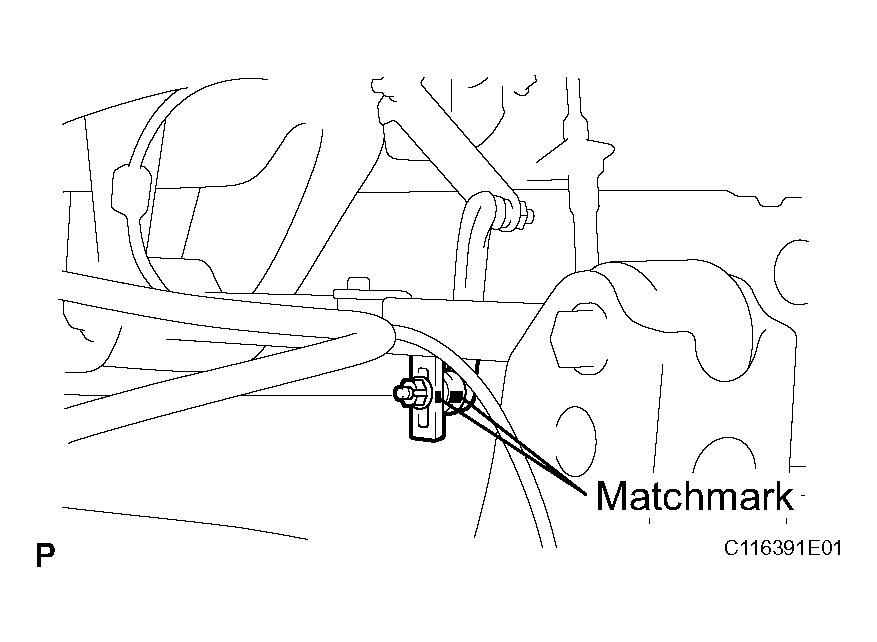

    Fig 2: Removing Rear Height Control Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
