Torsion Bar Spring: Components

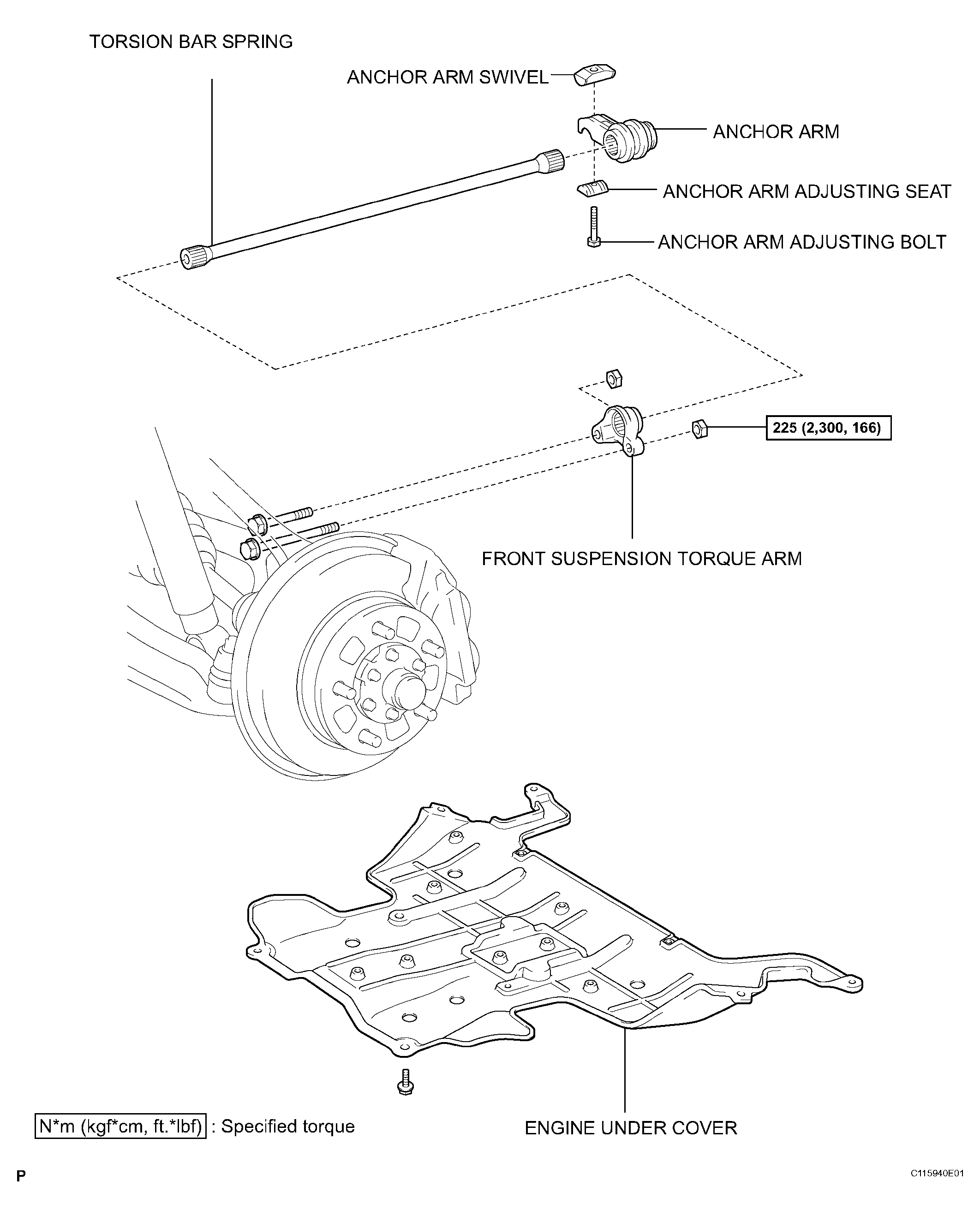

Fig 1: Torsion Bar Spring Replacement Components & Torque Specification
G04437548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
