ABS W/EBD System

TERMINALS OF ECU

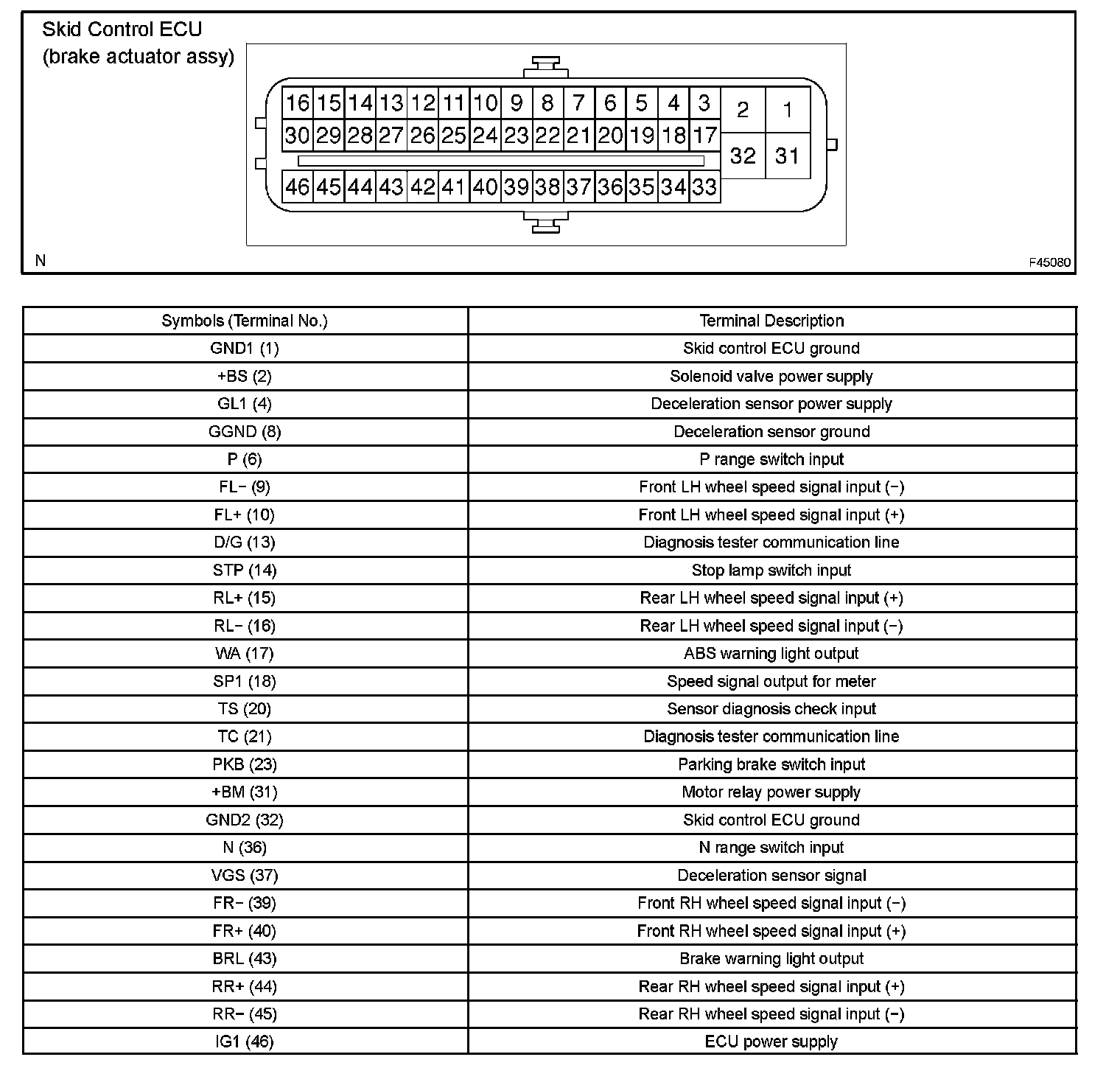

Terminals Of Control Module/Pinouts (Part 1):




1. Terminals of ECU

Terminals Of Control Module/Pinouts (Part 2):

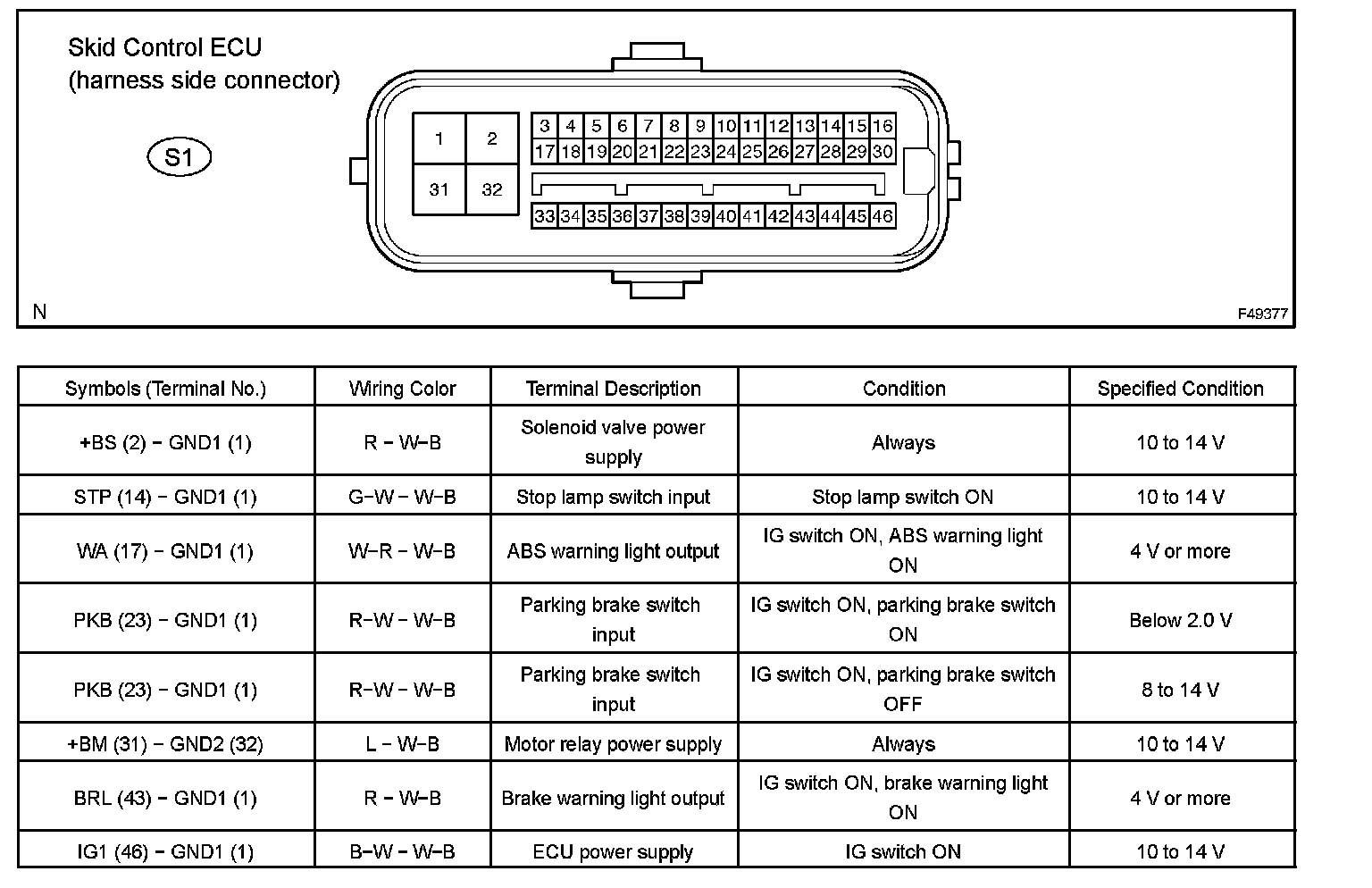

2. Terminal Inspection

Disconnect the connector and measure the voltage on the wire harness side.

HINT: Voltage can not be measured with the connector connected to the skid control ECU as the connector is water resistance.
