Active Test

ACTIVE TEST

HINT: Performing an ACTIVE TEST enables components including the relays, VSV (Vacuum Switching Valve), and actuators, to be operated without removing any parts. The ACTIVE TEST can be performed with a hand-held tester. Performing an ACTIVE TEST as the first step of troubleshooting is one method of shortening diagnostic time.

DATA LIST can be displayed during ACTIVE TESTs.




a. Connect a hand-held tester to the DLC3.
b. Turn the ignition switch to ON.
c. Turn the tester ON.
d. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST.

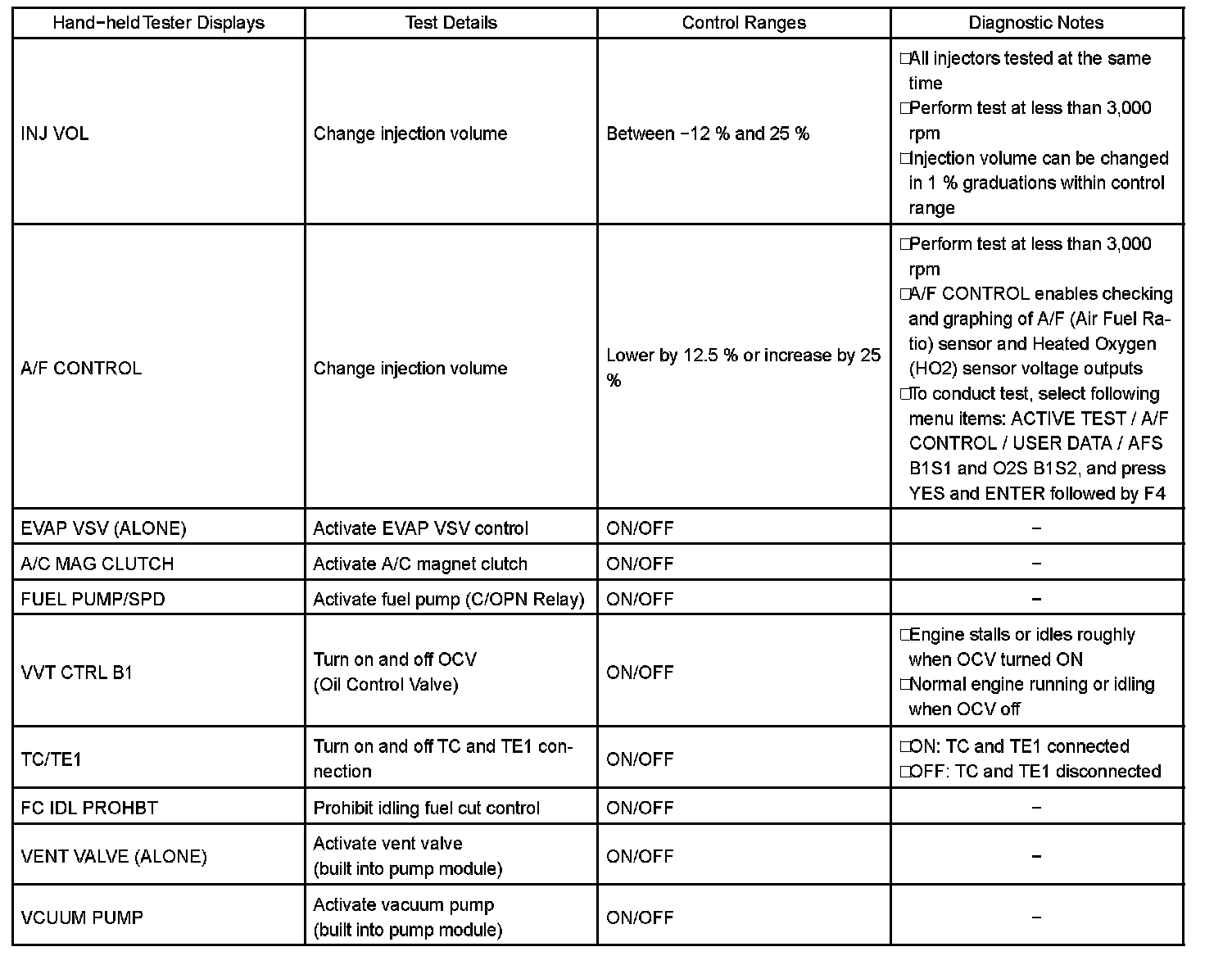

e. Perform the ACTIVE TEST by referring to the table given.
