Service Data

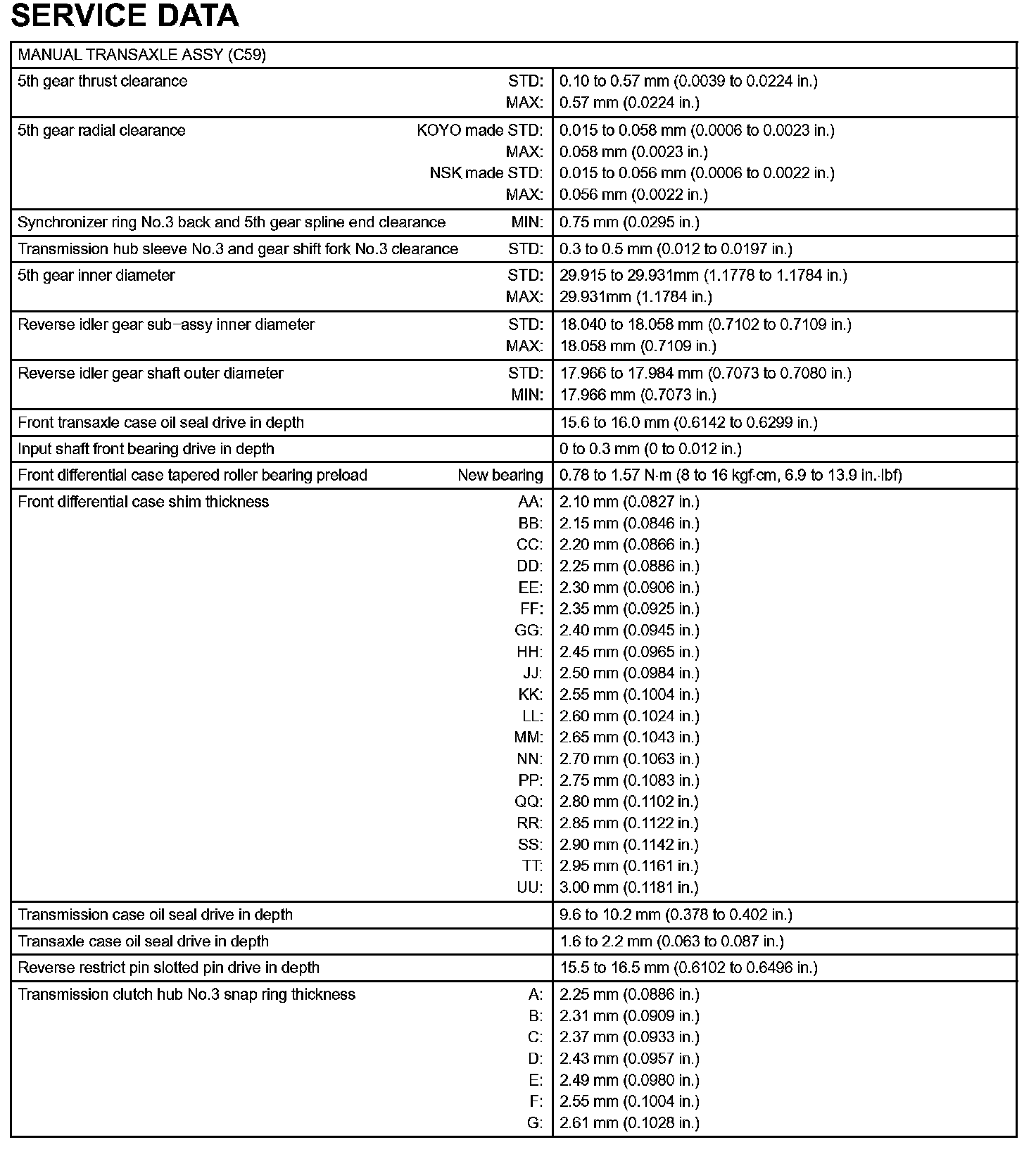

Manual Transmission / Transaxle-Service Data:

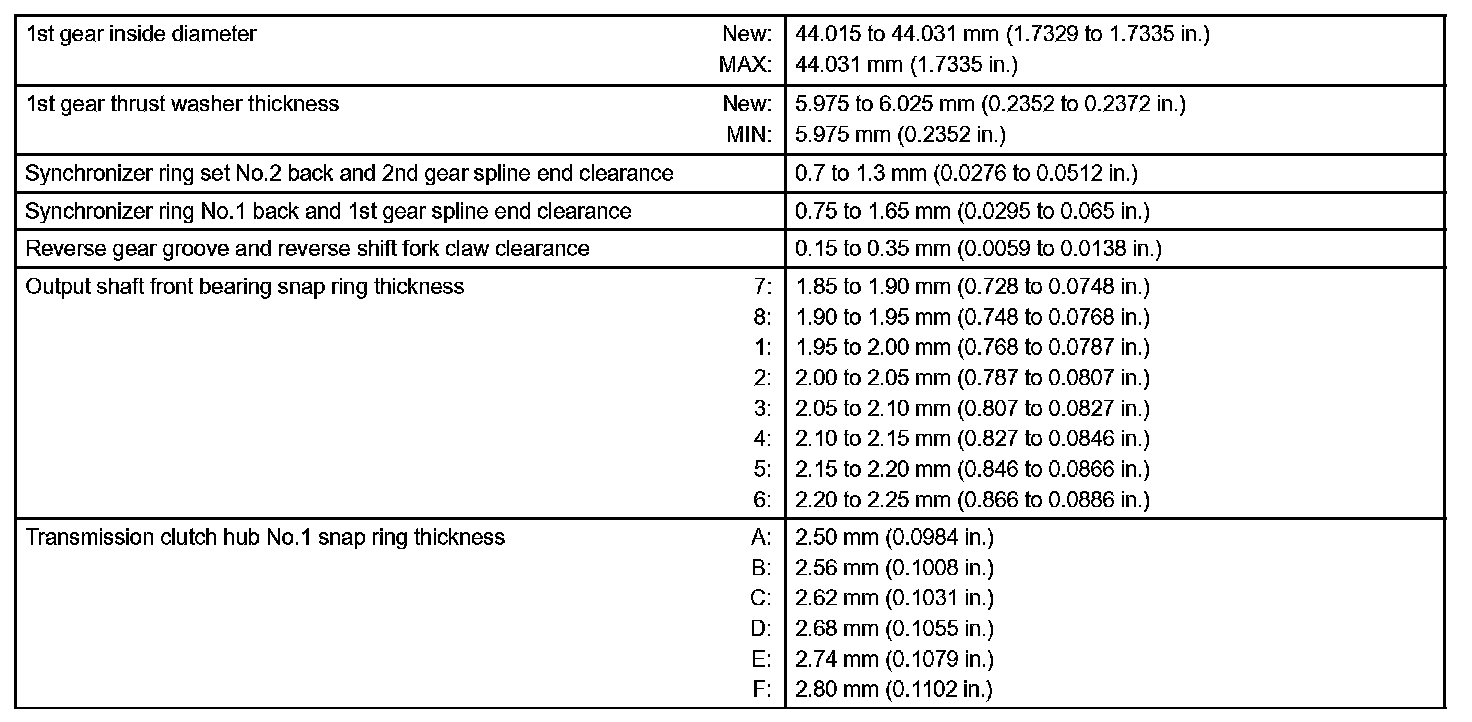

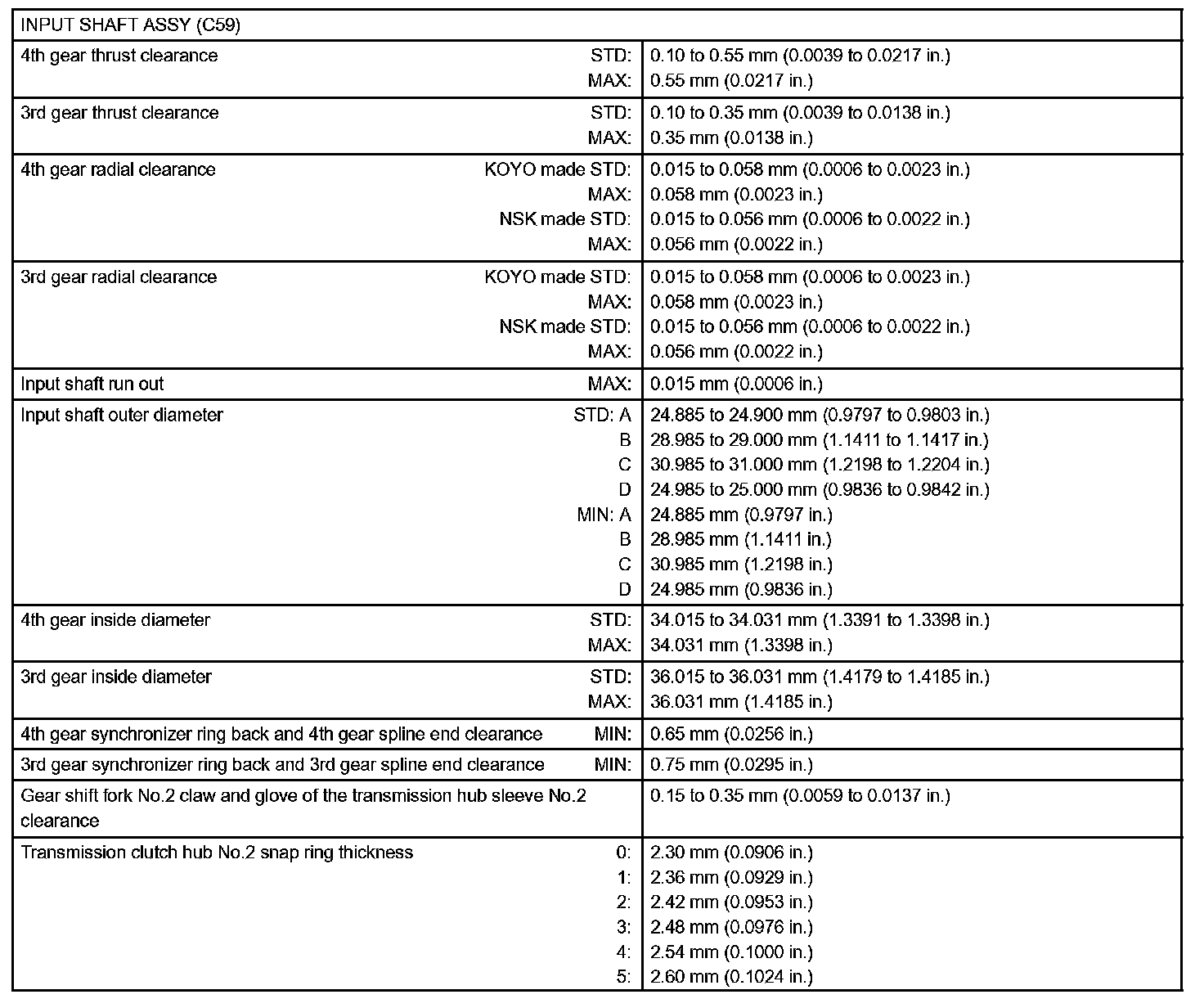

Manual Transmission / Transaxle-Service Data (Part 1):

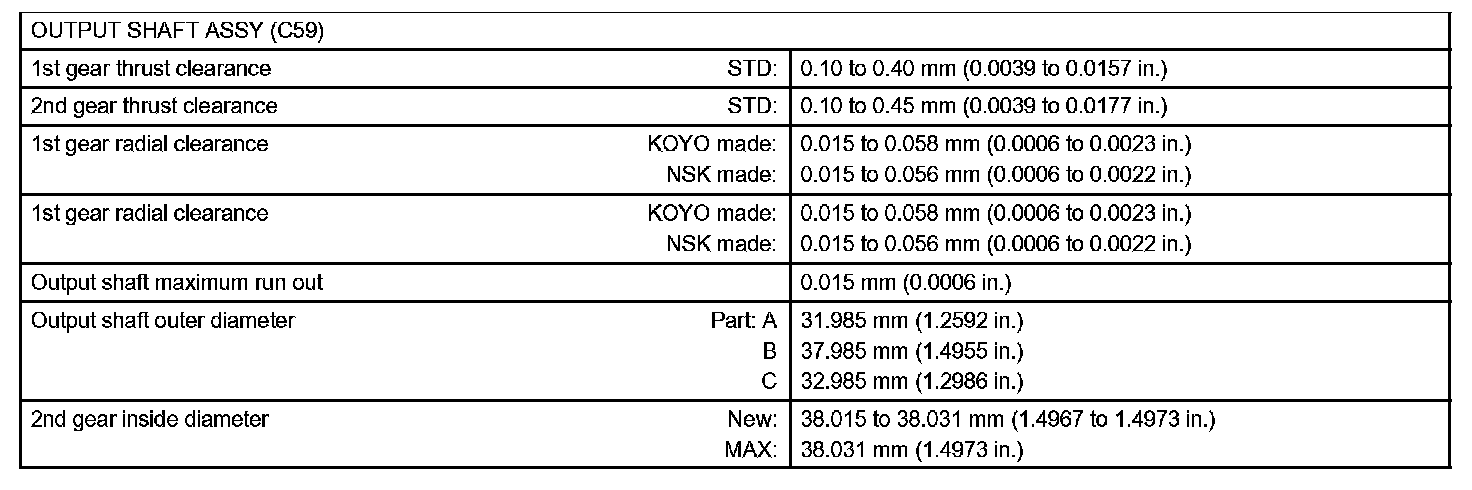

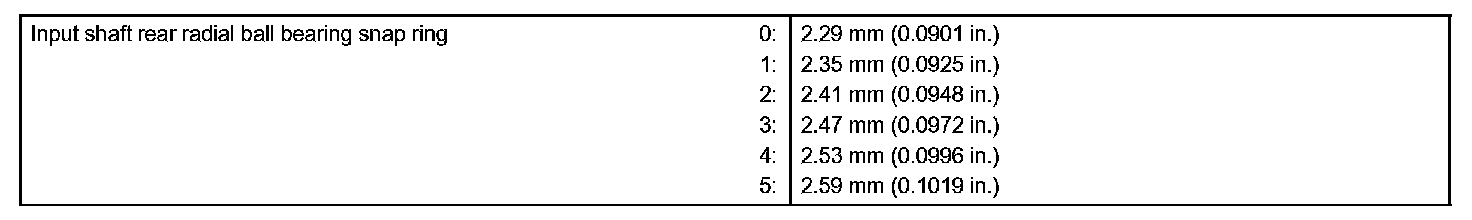

Manual Transmission / Transaxle-Service Data (Part 2):



Manual Transmission / Transaxle-Service Data (Par 1):



Manual Transmission / Transaxle-Service Data (Part 2):

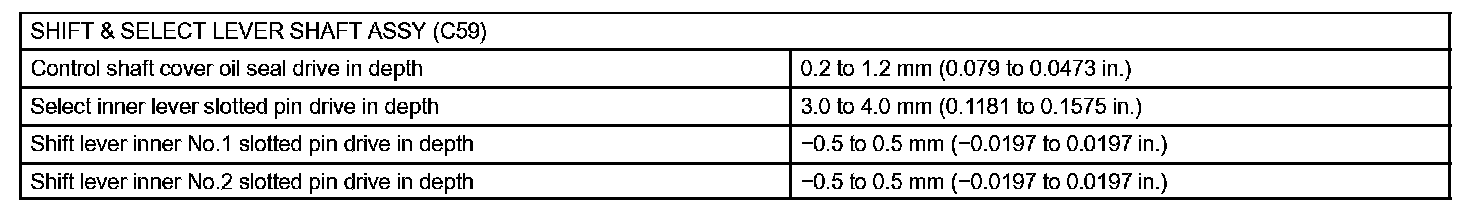

Manual Transmission / Transaxle-Service Data:
