Transmission Control Cable Assembly: Components

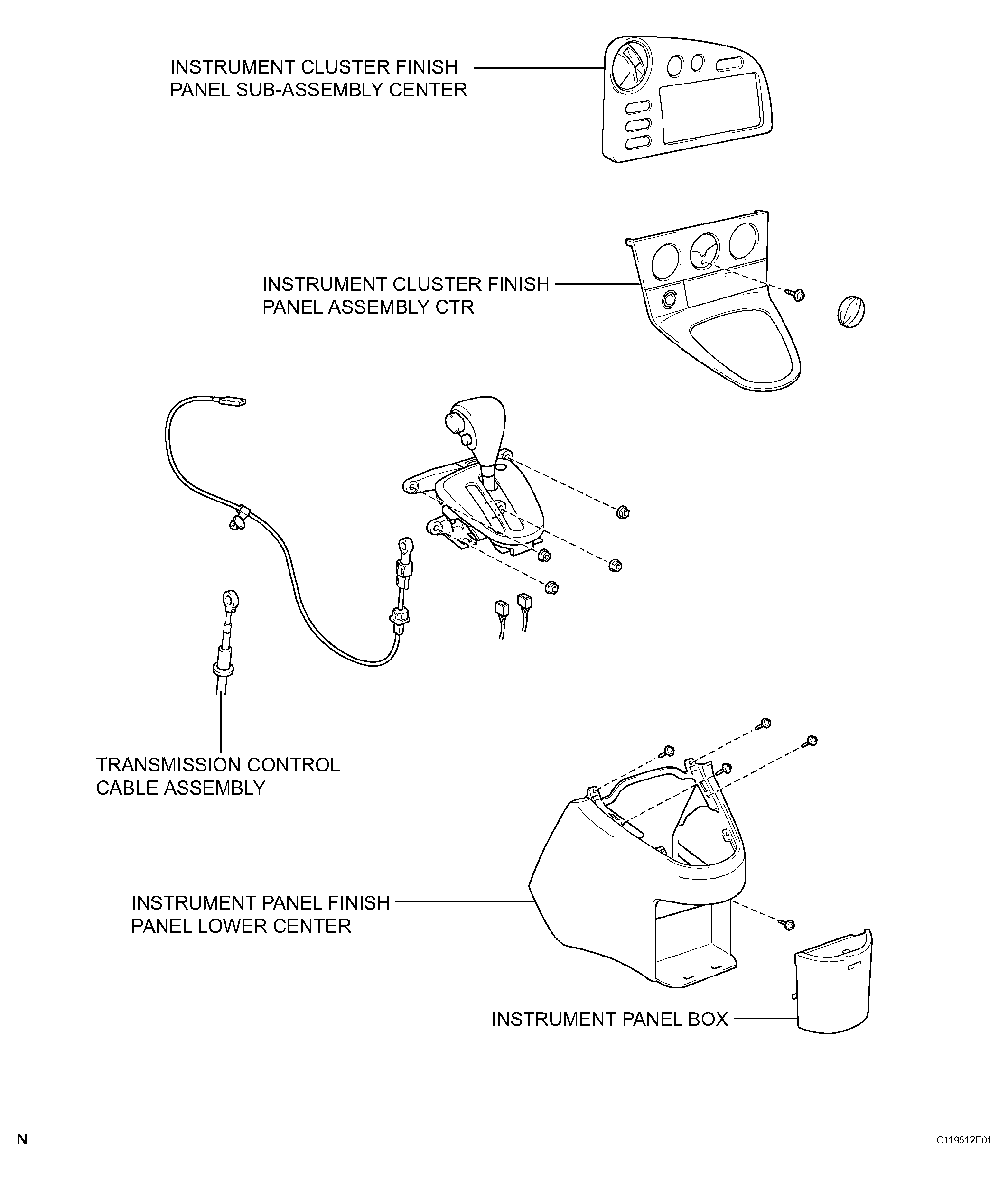

Fig 1: Identifying Transmission Control Cable Components (1 Of 2)
G04463343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

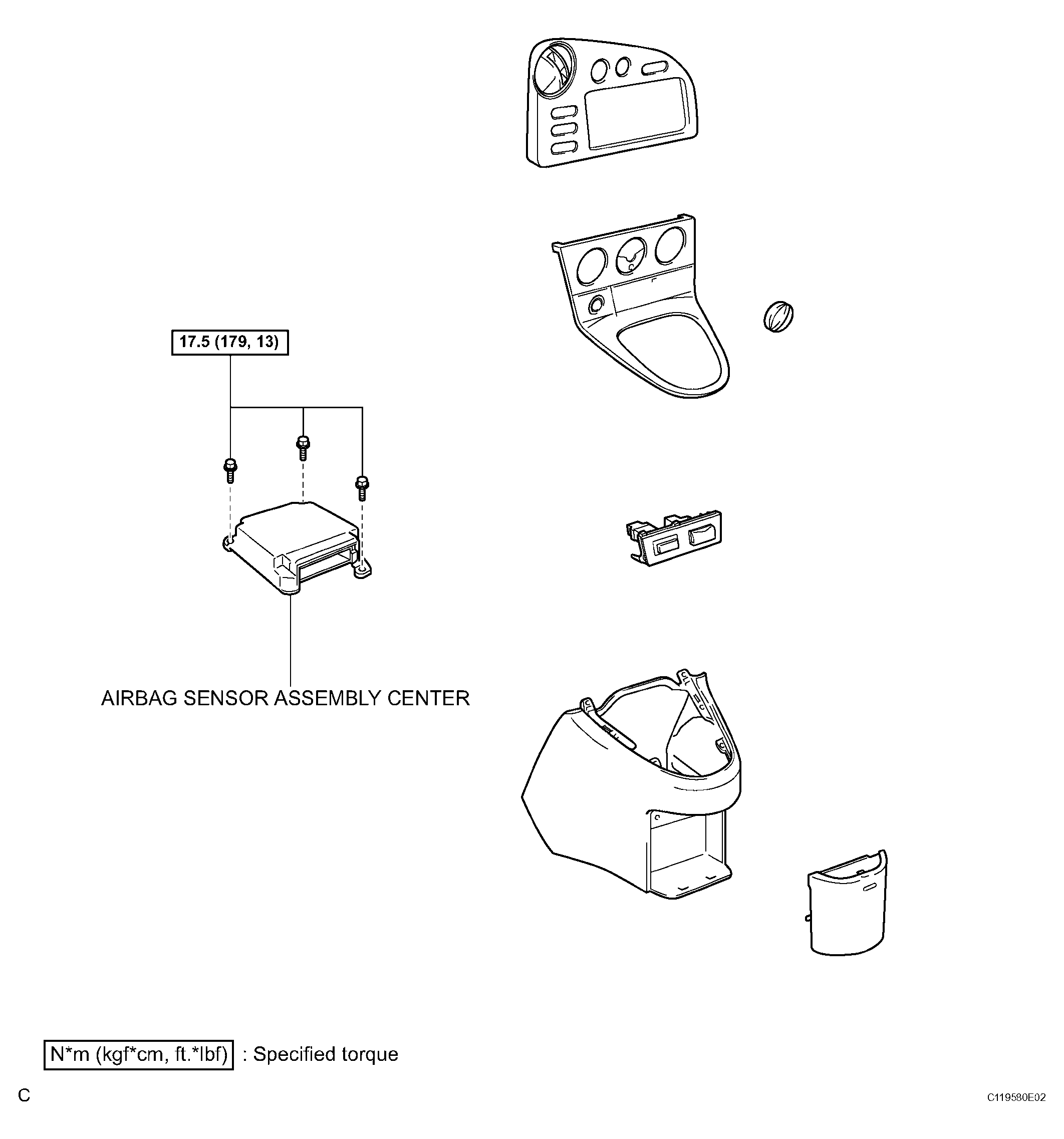

Fig 2: Identifying Transmission Control Cable Components (2 Of 2)
G04463344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)
G04463345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
G04463346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
