Inspection Procedure
- CHECK DLC3
- Measure the resistance according to the value(s) in DLC3
.
Standard resistance
DLC3Tester connection Condition Specified value Result D1-6 (CANH) - D1-14 (CANL) IG switch OFF 108 to 132 Ω A D1-6 (CANH) - D1-14 (CANL) IG switch OFF 132 Ω or higher B NOTE: When the measured value is 132 Ω or more and the CAN communication system diagnostic code is output, there may be a fault besides disconnection of the DLC3 sub bus line. For that reason, troubleshooting should be performed again from "How to proceed with troubleshooting" after repairing the trouble area.
B: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
A: GO TO NEXT STEP
- Measure the resistance according to the value(s) in DLC3
.
- CHECK CAN MAIN BUS LINE (SKID CONTROL ECU - JUNCTION CONNECTOR)
- Disconnect the connector (J13) from the junction connector.
- Measure the resistance according to the value(s) in SKID CONTROL ECU - JUNCTION CONNECTOR
.
Standard resistance
SKID CONTROL ECU - JUNCTION CONNECTORTester Connection Condition Specified value J13-4 (CANH) - J13-15 (CANL) IG switch OFF 108 to 132 Ω
NG: Go to step 4
OK: GO TO NEXT STEP
- CHECK STEERING SENSOR
- Disconnect the connector (S12) from the steering sensor.
- Measure the resistance according to the value(s) in STEERING SENSOR
.
Standard resistance
STEERING SENSORTester Connection Condition Specified value 10 (CANH) - 9 (CANL) IG switch OFF 108 to 132 Ω
NG: REPLACE STEERING SENSOR
OK: REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (STEERING SENSOR - JUNCTION CONNECTOR)

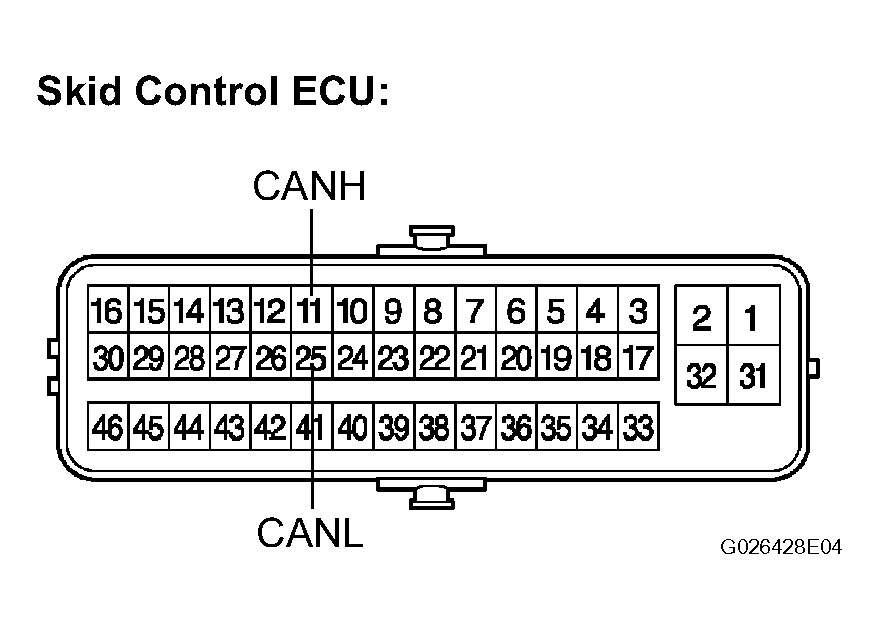

- CHECK SKID CONTROL ECU
- Disconnect the connector (S1) from the skid control ECU.
- Measure the resistance according to the value(s) in SKID CONTROL ECU
.
Standard resistance
SKID CONTROL ECUTester Connection Condition Specified value 11 (CANH) - 25 (CANL) IG switch OFF 108 to 132 Ω
NG: REPLACE SKID CONTROL ECU
OK: REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (SKID CONTROL ECU - JUNCTION CONNECTOR)
