Cruise Control Main Switch: Removal

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. INSPECT PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE HORN BUTTON ASSEMBLY (See  REMOVAL  )
  4. REMOVE STEERING WHEEL ASSEMBLY

    HINT:

    (See REMOVAL )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  5. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY
    1. Remove the 2 screws and cruise control main switch assembly.

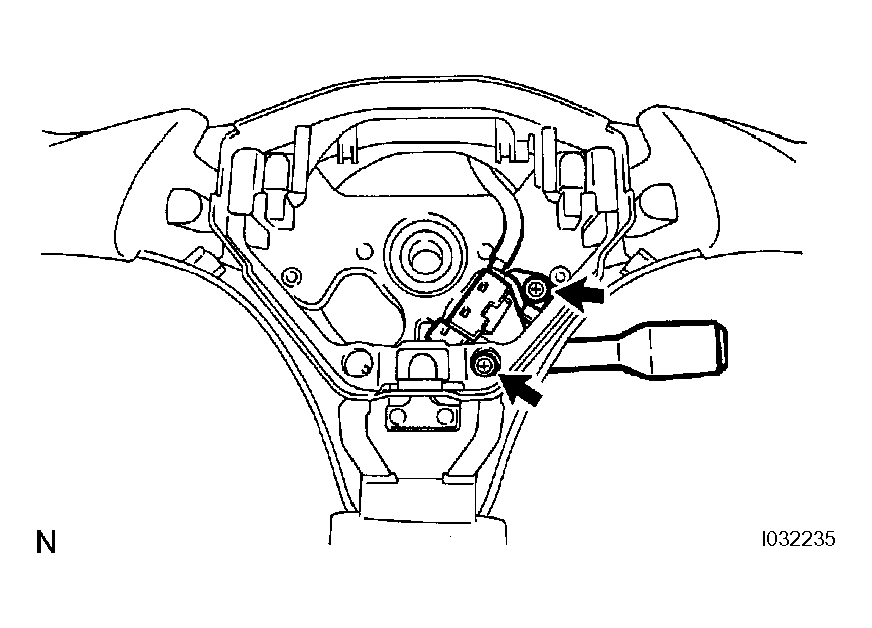

      Fig 1: Removing Cruise Control Main Switch Assembly
      G04466423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
