Deceleration Sensor: Components

Fig 1: Identifying Deceleration Sensor Components And Replacements (1 Of 2)
G04465369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

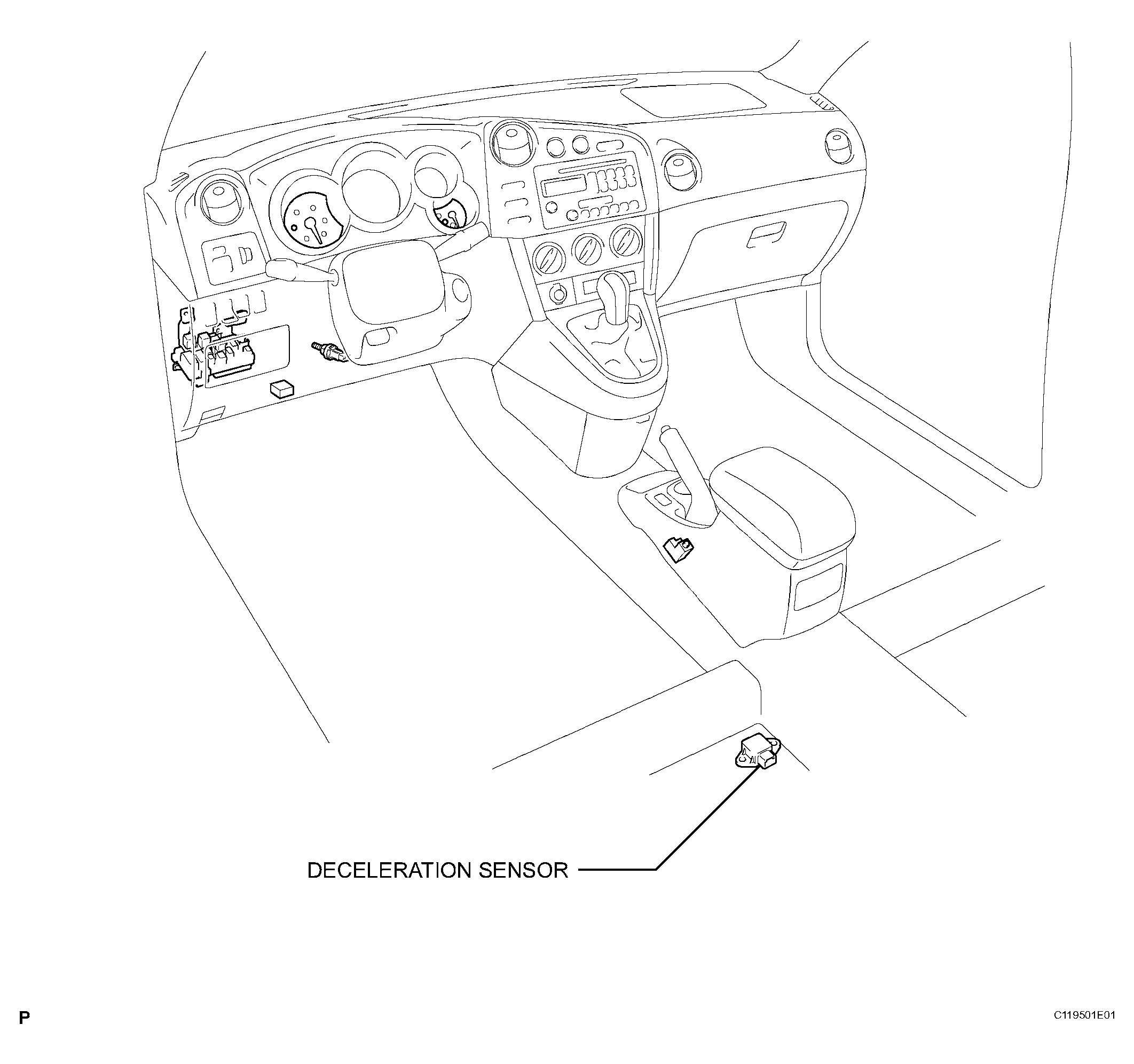

Fig 2: Identifying Deceleration Sensor Components And Replacements (2 Of 2)
G04465370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
