Oil Pump: Components

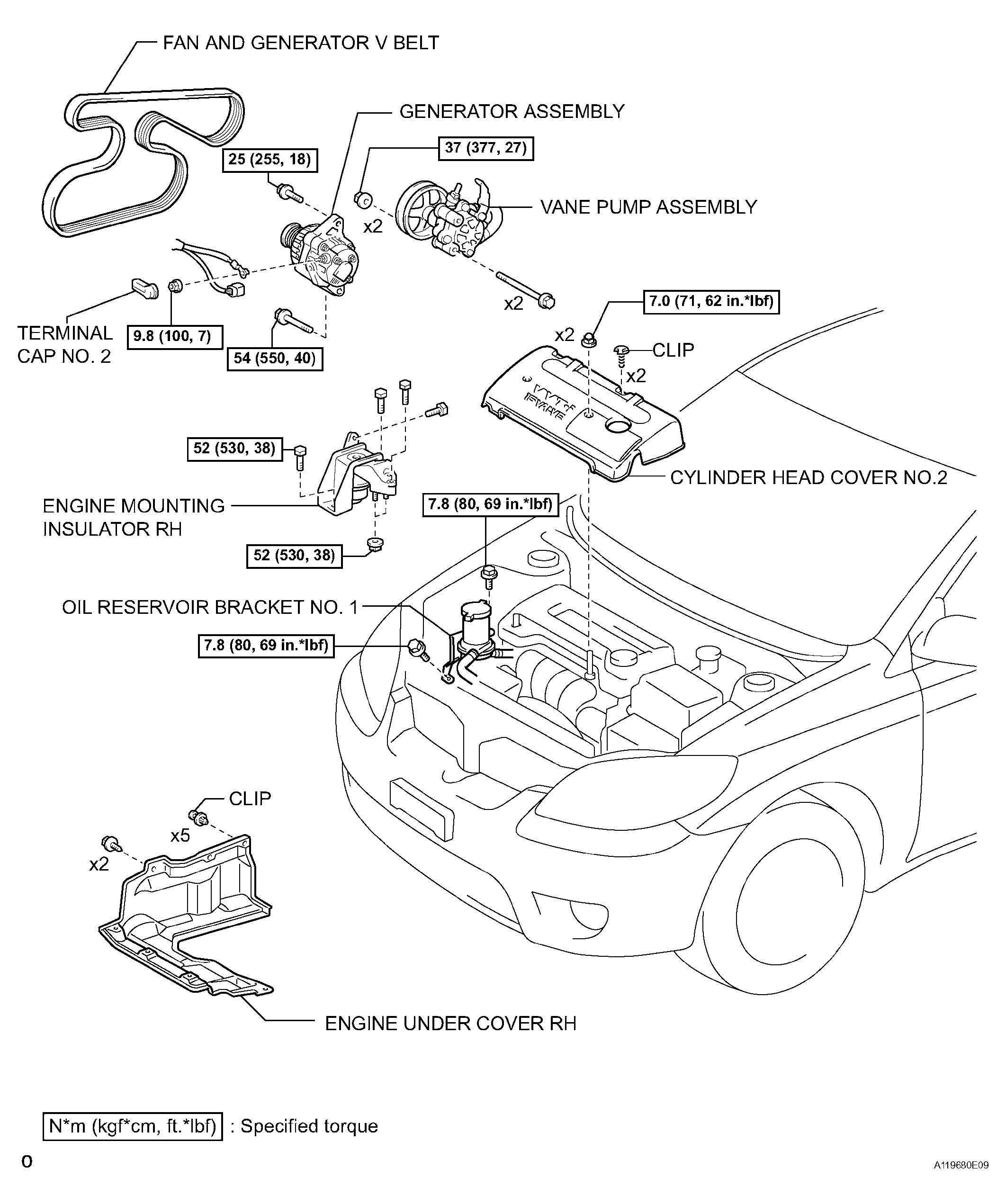

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 5)
G04462334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

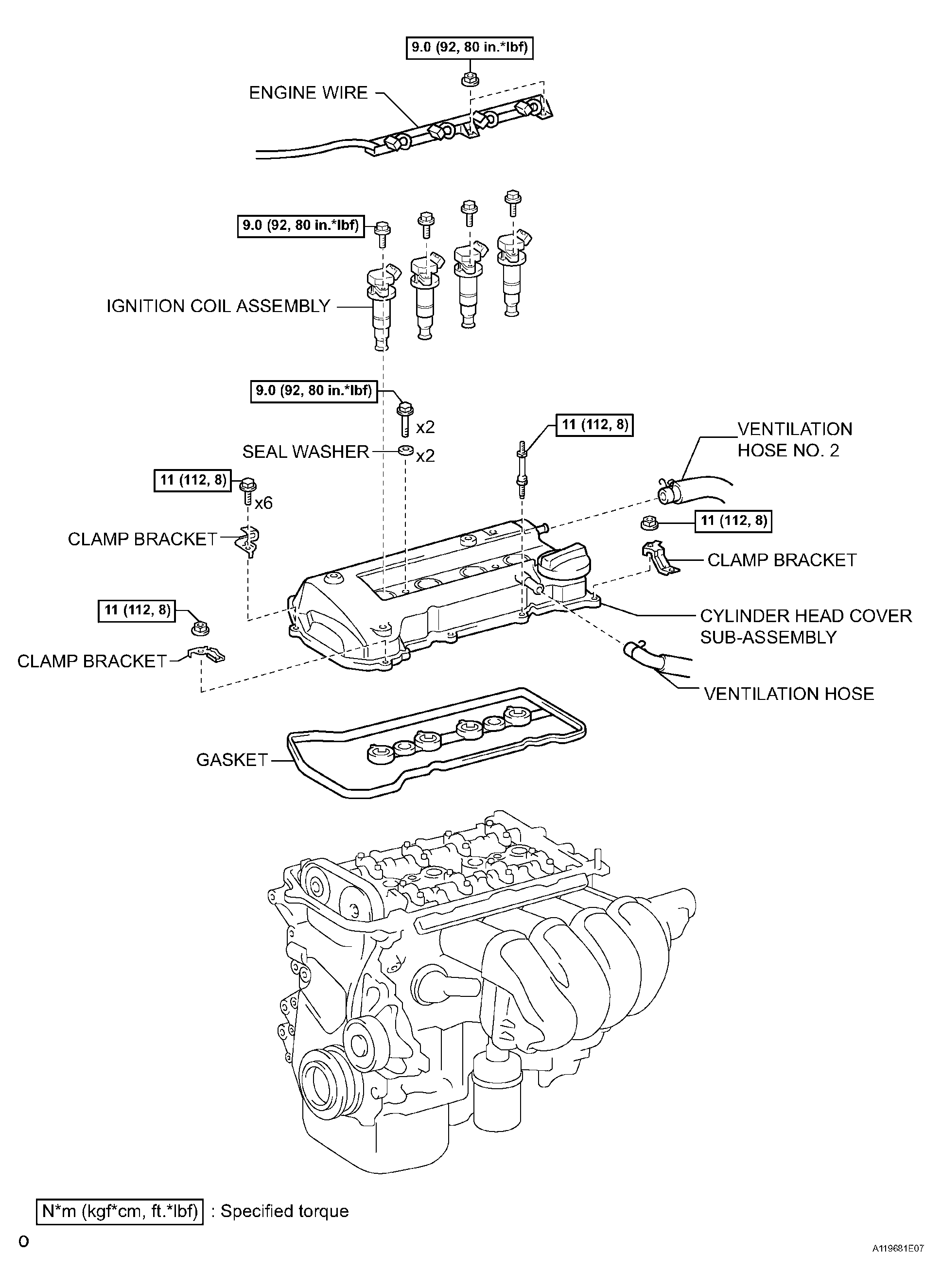

Fig 2: Oil Pump Replacement Components With Torque Specifications (2 Of 5)
G04462335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

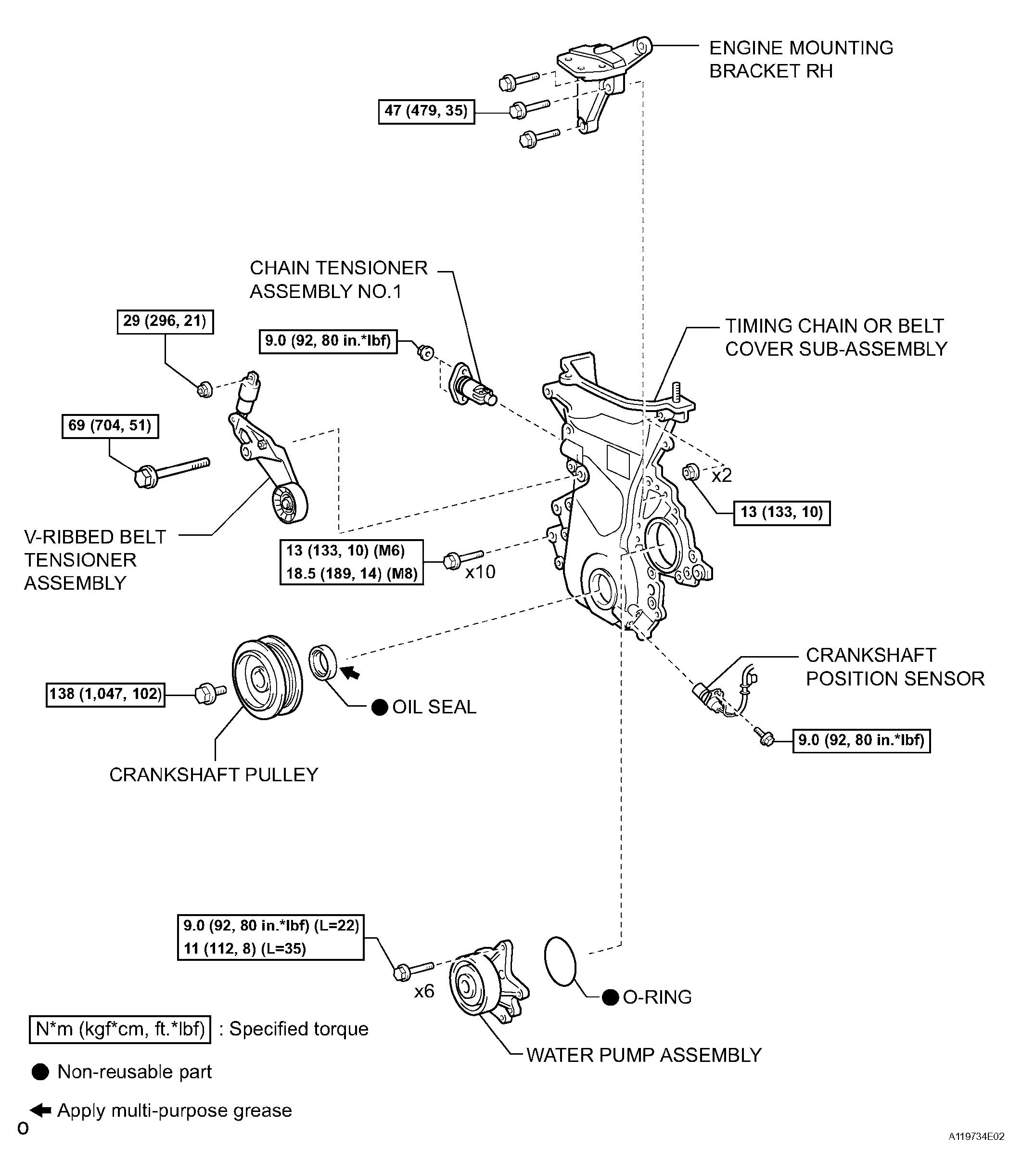

Fig 3: Oil Pump Replacement Components With Torque Specifications (3 Of 5)
G04462336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Oil Pump Replacement Components With Torque Specifications (4 Of 5)
G04462337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

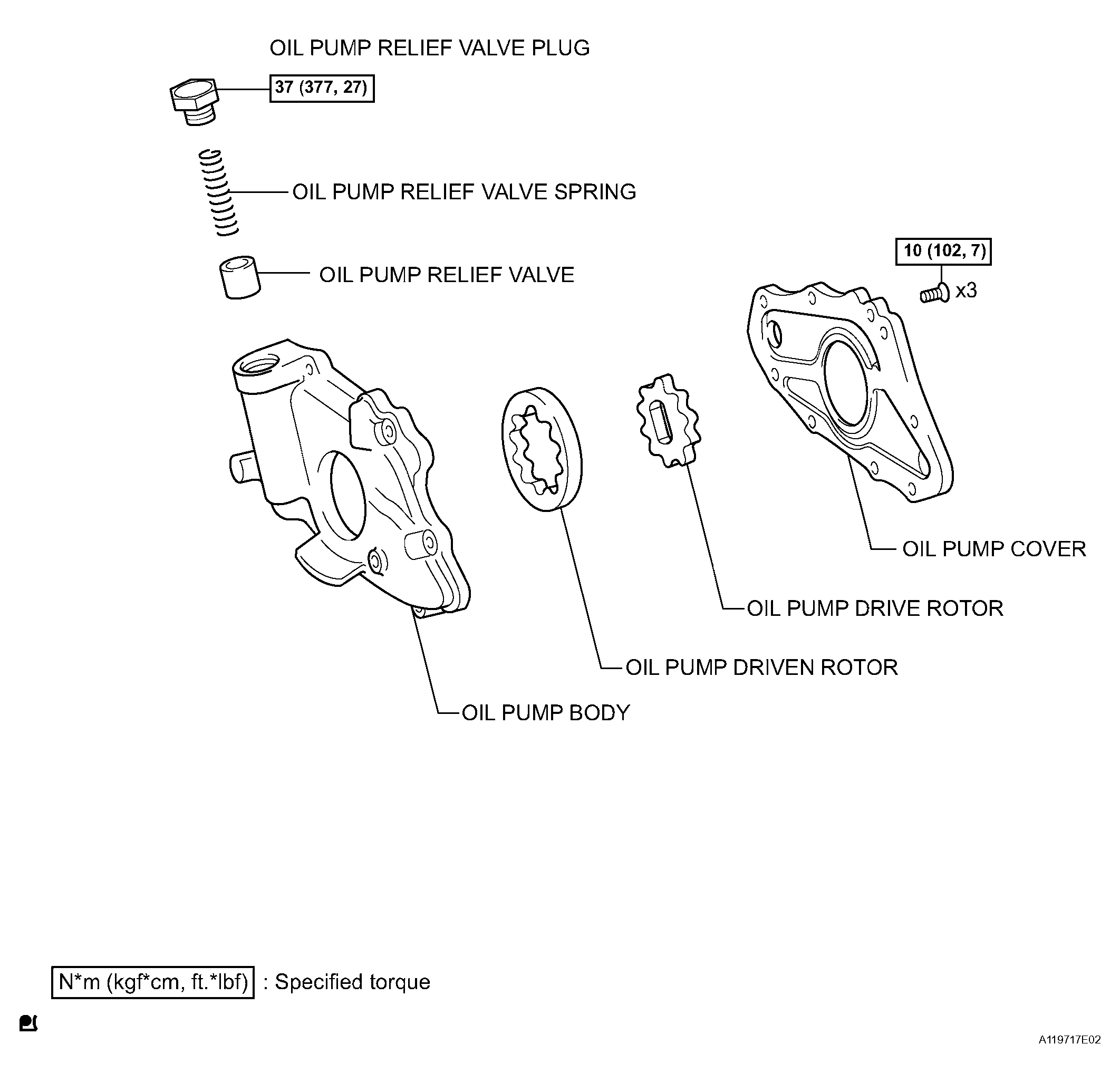

Fig 5: Oil Pump Replacement Components With Torque Specifications (5 Of 5)
G04462338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
