Air Conditioning: Condenser: Disassembly

REMOVE COOLER DRYER
1. Using a socket hexagon wrench 14mm (0.55 in.), remove the cap from the modulator.

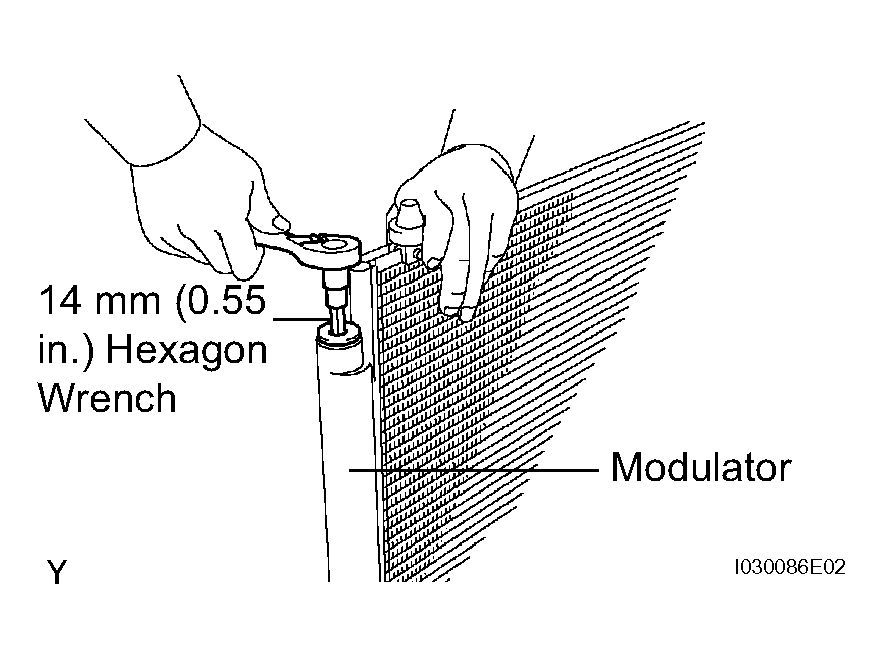

  Fig 1: Removing Cap From Modulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the cap.

  Fig 2: Removing O-Ring From Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using pliers, remove the cooler dryer.

  Fig 3: Removing Cooler Dryer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
