Air Conditioning: Condenser: Installation

INSTALL W/RECEIVER CONDENSER ASSEMBLY
1. Install the w/receiver condenser assembly with the 2 bolts.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

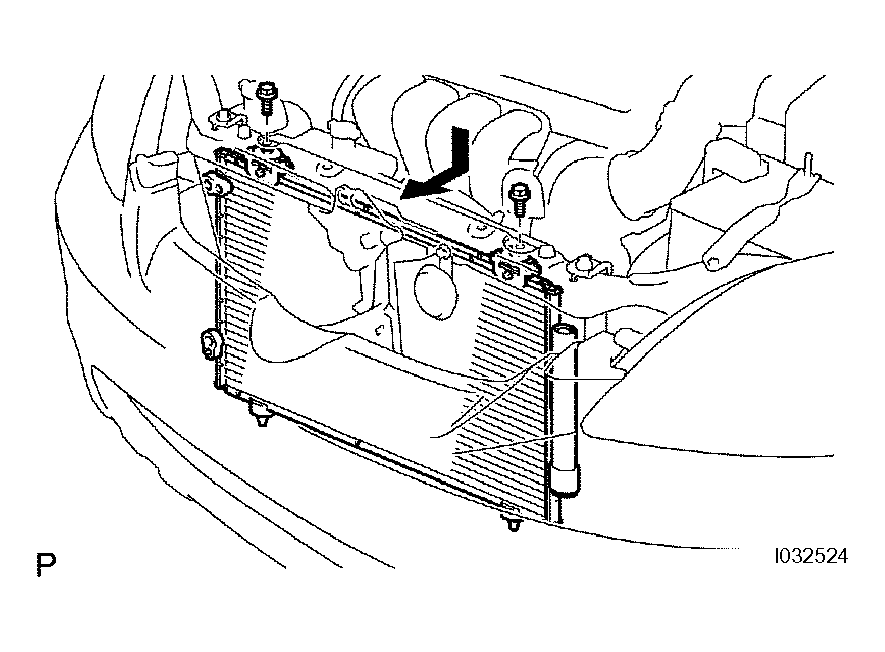

  Fig 1: Installing W/Receiver Condenser Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 radiator upper supports with the 2 bolts.
INSTALL DISCHARGE HOSE SUB-ASSEMBLY
1. Remove the attached vinyl tape from the hose and connecting part of the w/receive condenser assembly.
2. Sufficiently apply compressor oil to the new O-ring and hose joint.
  Compressor oil:

  ND-OIL 8 or equivalent
3. Install an O-ring to the discharge hose sub-assembly.

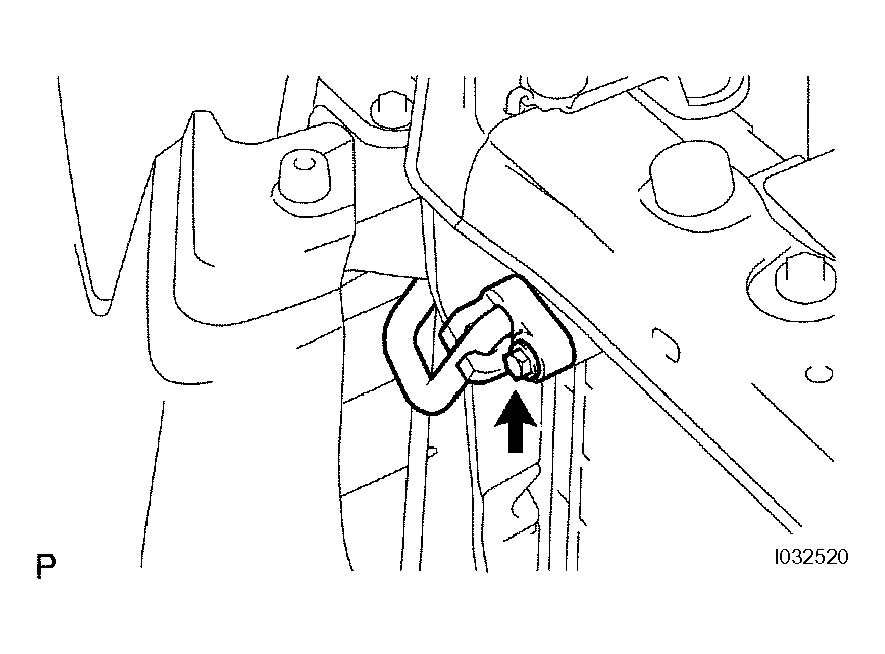

4. Install the discharge hose sub-assembly to the w/ receive condenser assembly with the bolt.

  Fig 2: Installing Radiator Upper Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (54 kgf*cm, 48 in.*lbf)
INSTALL AIR CONDITIONING TUBE ASSEMBLY
1. Remove the attached vinyl tape from the pipe and connecting part of the w/receive condenser assembly.
2. Sufficiently apply compressor oil to the new O-ring and pipe joint.
  Compressor oil:

  ND-OIL 8 or equivalent
3. Install an O-ring to the cooler refrigerant liquid pipe A.
4. Install the cooler refrigerant liquid pipe A to the w/ receive condenser assembly with the bolt.
  Torque: 5.4 N*m (54 kgf*cm, 48 in.*lbf)
CHARGE REFRIGERANT (See REPLACEMENT )
WARM UP ENGINE
INSPECT LEAKAGE OF REFRIGERANT (See REPLACEMENT )

Fig 4: Installing Air Conditioning Tube Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
