Air Conditioning: Condenser: Reassembly

INSTALL COOLER DRYER
1. Using pliers, install the cooler dryer.

  Fig 1: Installing Cooler Dryer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new O-ring to the cap.
3. Sufficiently apply compressor oil to the fit surfaces of the O-ring and the cap.
  Compressor oil:

  ND-OIL 8 or equivalent

  Fig 2: Installing O-Ring To Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a socket hexagon wrench 14 mm (0.55 in.), install the cap to the modulator.
  Torque: 2.9 N*m (29 kgf*cm, 25 in.*lbf)

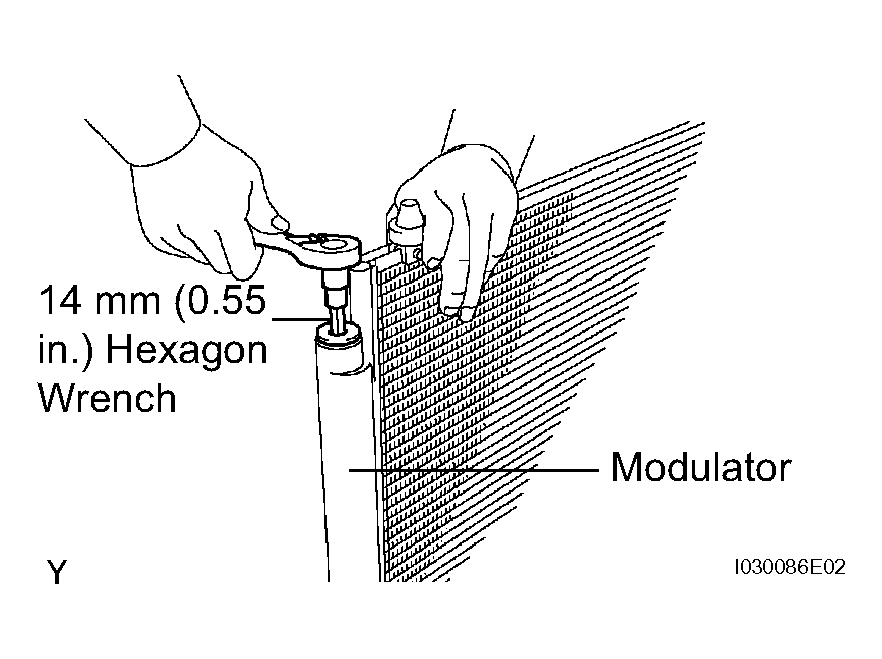

  Fig 3: Installing Cap To Modulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
