Evaporator Temperature Sensor: Inspection

  1. INSPECT COOLER THERMISTOR NO. 1
    1. Inspect the cooler thermistor No. 1.
    2. Check the resistance between terminals 1 and 2 of the cooler thermistor No. 1 at each temperature, as shown in the chart.

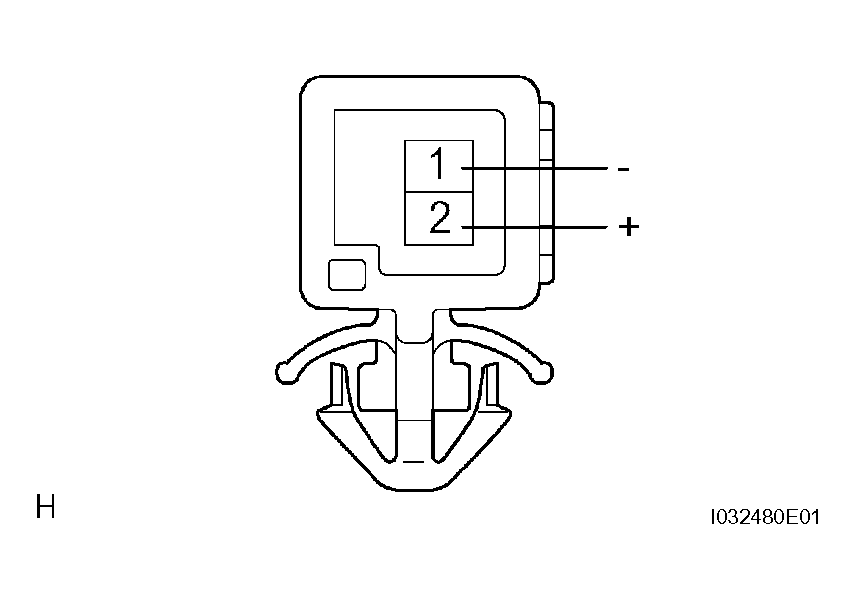

      Fig 1: Identifying Cooler Thermistor No 1 Terminals
      G04465828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

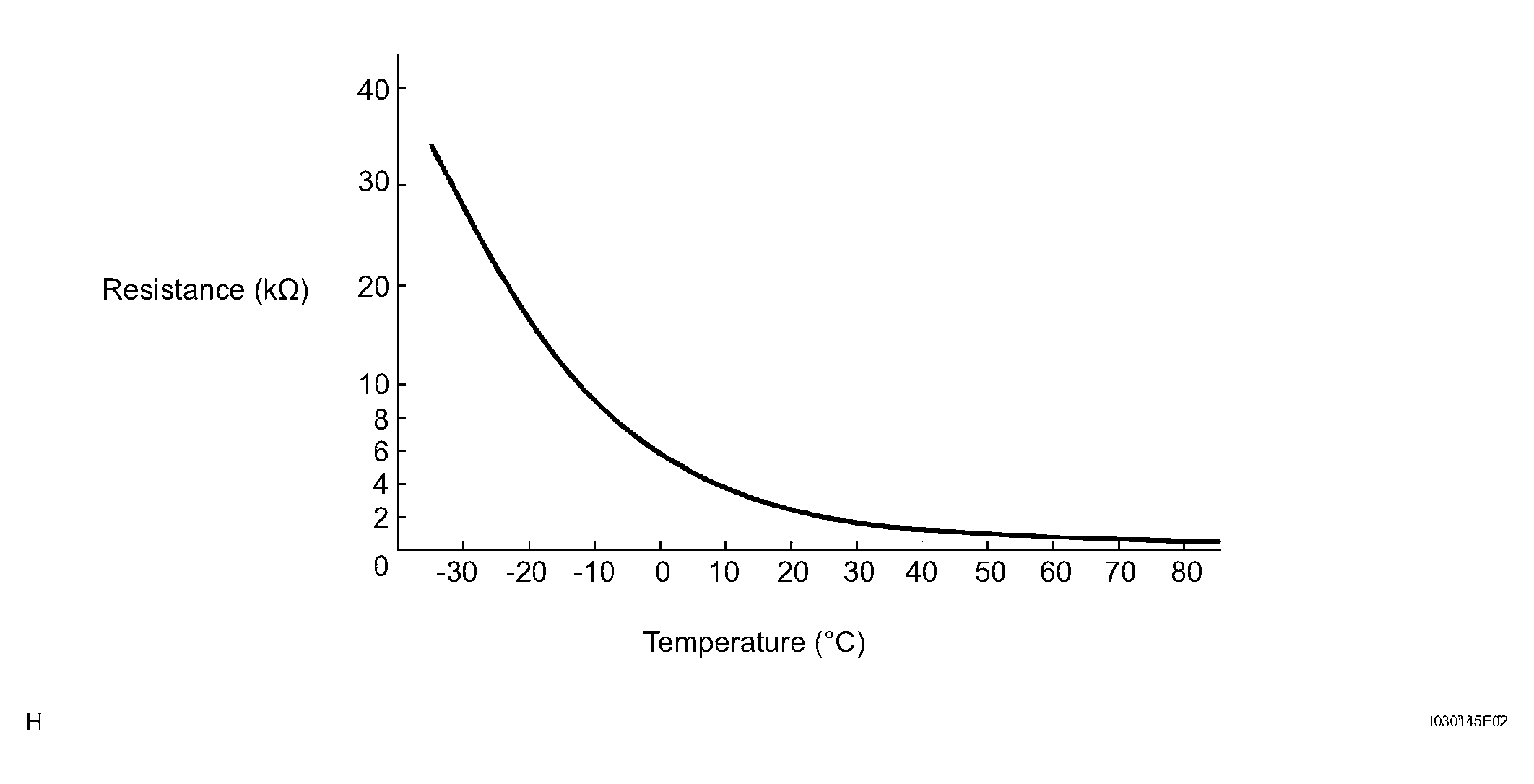

      Fig 2: Cooler Thermistor No 1 Terminals Resistance Graph
      G04465829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the resistance value is not as specified, replace the sensor.
