Floor Shift Assembly: Disassembly

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
1. Disconnect the indicator light wire connector from the shift lever plate.
2. Using a screwdriver, remove the push nut.
3. Separate the wire harness from the shift lever plate.

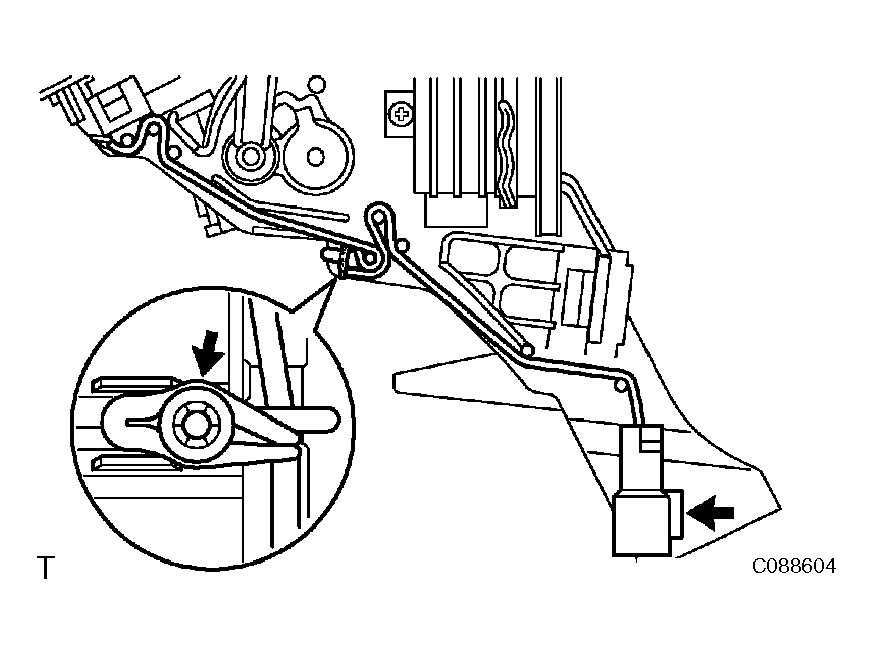

  Fig 1: Removing Shift Lever Knob Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the secondary locking device.
5. Release the locking lug of the terminals 2 and 4, and pull the terminals out from the rearward.

  Fig 2: Removing Push Nut Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 screws and shift lever knob subassembly with the position indicator slide cover.
  NOTE: Pay attention not to apply unnatural load to transmission control switch wire harness.

  Fig 3: Removing Screws And Shift Lever Knob Subassembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB BUTTON
1. Remove the shift lever knob button and spring from the shift lever knob.

  Fig 4: Removing Shift Lever Knob Button And Spring From Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover No. 2 from the shift lever knob.

  Fig 5: Removing Position Indicator Slide Cover No. 2 From Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL SWITCH
1. Using a screwdriver, remove the transmission control switch from the shift lever knob.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 6: Removing Transmission Control Switch From Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the indicator light wire sub-assembly from the position indicator housing lower.

  Fig 7: Removing Indicator Light Wire Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING LOWER
1. Remove the position indicator housing lower with the position indicator housing upper from the shift lever plate.

  Fig 8: Removing Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING UPPER
1. Using a screwdriver, remove the position indicator housing upper from the position indicator housing lower.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 9: Removing Position Indicator Housing Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON COVER
1. Using a screwdriver, remove the shift lock release button cover.

  Fig 10: Removing Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONTROL POSITION INDICATOR PLATE
1. Remove the position indicator plate from the position indicator housing upper.

  Fig 11: Removing Position Indicator Plate From Position Indicator Housing Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the position indicator housing lower.

  Fig 12: Removing Position Indicator Slide Cover From Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON
1. Remove the shift lock release button and spring from the position indicator housing lower.

  Fig 13: Removing Shift Lock Release Button And Spring From Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL ECU
1. Remove the screw.
2. Disconnect the shift lock solenoid connector and remove the shift lock control ECU from the shift lever plate.

  Fig 14: Removing Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK SOLENOID
1. Using a screwdriver, remove the shift lock solenoid from the shift lever plate.
  HINT:

  Tape up the screwdriver tip before use.

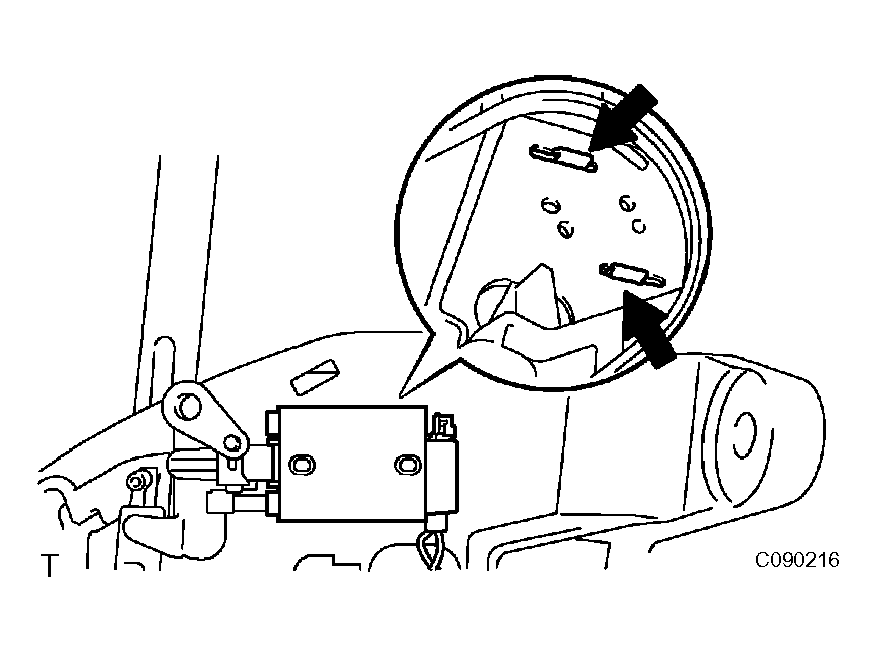

  Fig 15: Removing Shift Lock Solenoid From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
