Floor Shift Assembly: Installation

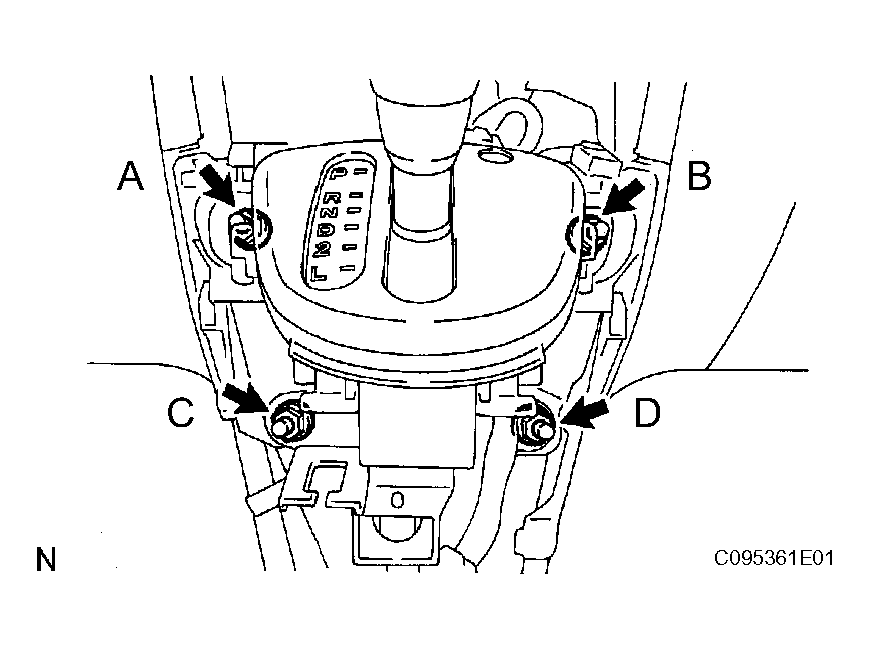

1. Install the floor shift assembly with the 4 nuts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

   HINT:

   Tighten them in the order, A, B, C and D.

   Fig 1: Installing Floor Shift Assembly With Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

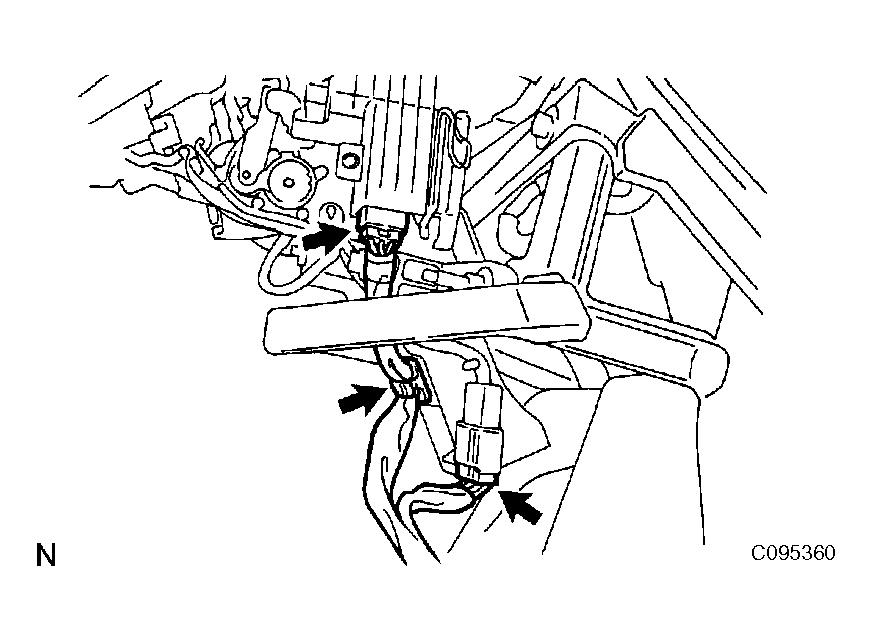

2. Connect the shift lock control ECU connector and indicator light wire connector.
3. Connect the wire harness clamp.
   Fig 2: Connecting Wire Harness Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

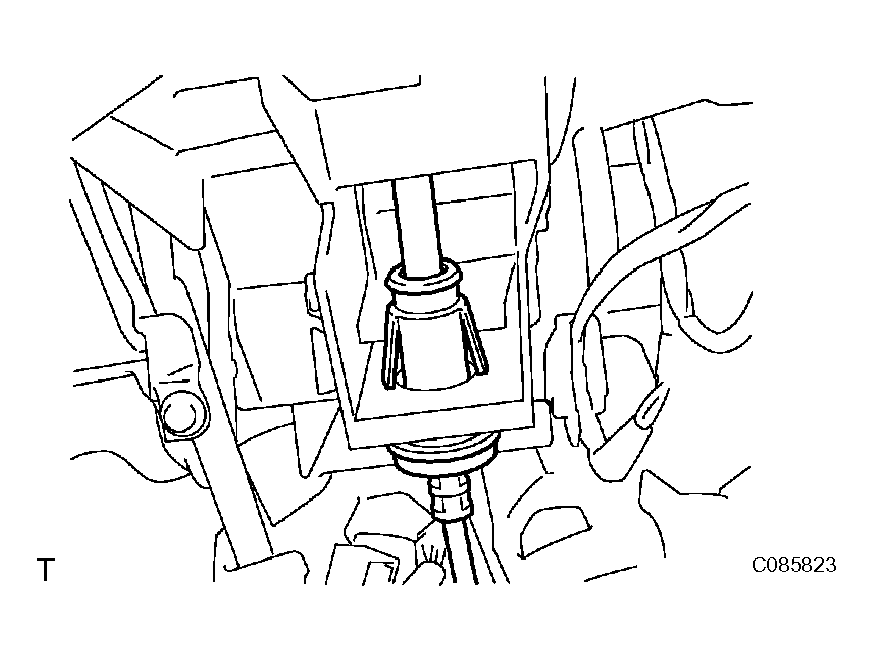

1. Install the control cable to the shift lever plate.
   Fig 3: Installing Control Cable To Shift Lever Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the control cable end to the floor shift assembly.

   HINT:

   Install it with the uneven surface facing up.

   Fig 4: Connecting Control Cable End To Floor Shift Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Pass the parking lock cable through the hole of shift lever plate.
2. Insert the slide cap into the shift lever plate.
   Fig 5: Inserting Slide Cap Into Shift Lever Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply MP grease to the shift lock release link.
4. Insert the lever pin into the hole in the cable end.

HINT:

(See ON-VEHICLE INSPECTION  )

HINT:

(See ON-VEHICLE INSPECTION  )

HINT:

(See ON-VEHICLE INSPECTION  )

Fig 6: Inserting Lever Pin Into Hole In Cable End

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
