Input Shaft: Reassembly

INSTALL INPUT SHAFT OIL SEAL RING
1. Coat a new input shaft oil seal ring with ATF, install it to the input shaft.

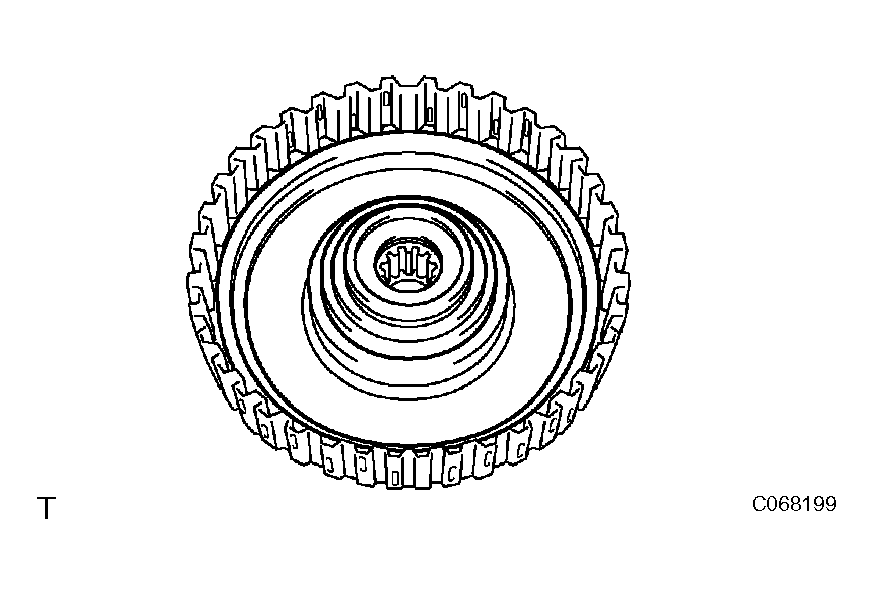

  Fig 1: Installing Input Shaft Oil Seal Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FORWARD CLUTCH PISTON O-RING
1. Coat a new forward clutch piston O-ring with ATF, install it to the forward clutch piston.

  Fig 2: Installing Forward Clutch Piston O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FORWARD CLUTCH PISTON
1. Install the forward clutch piston to the input shaft.
  NOTE: Be careful not to damage the O-ring.

  Fig 3: Installing Forward Clutch Piston To Input Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY
1. Install the clutch balancer and forward clutch return spring sub-assembly to the input shaft.

  Fig 4: Installing Forward Clutch Return Spring Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, a press and a snap ring expander, install the snap ring to the forward clutch return spring.
  SST 09320-89010

  Fig 5: Installing Snap Ring To Forward Clutch Return Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT CLUTCH DISC
1. Install the 4 front clutch plates, 4 front clutch discs and front clutch flange.
2. Using a screwdriver, install the snap ring.
INSPECT PACK CLEARANCE OF FORWARD CLUTCH (See INSPECTION )

Fig 6: Installing Front Clutch Plates
