Intermediate Shaft: Components

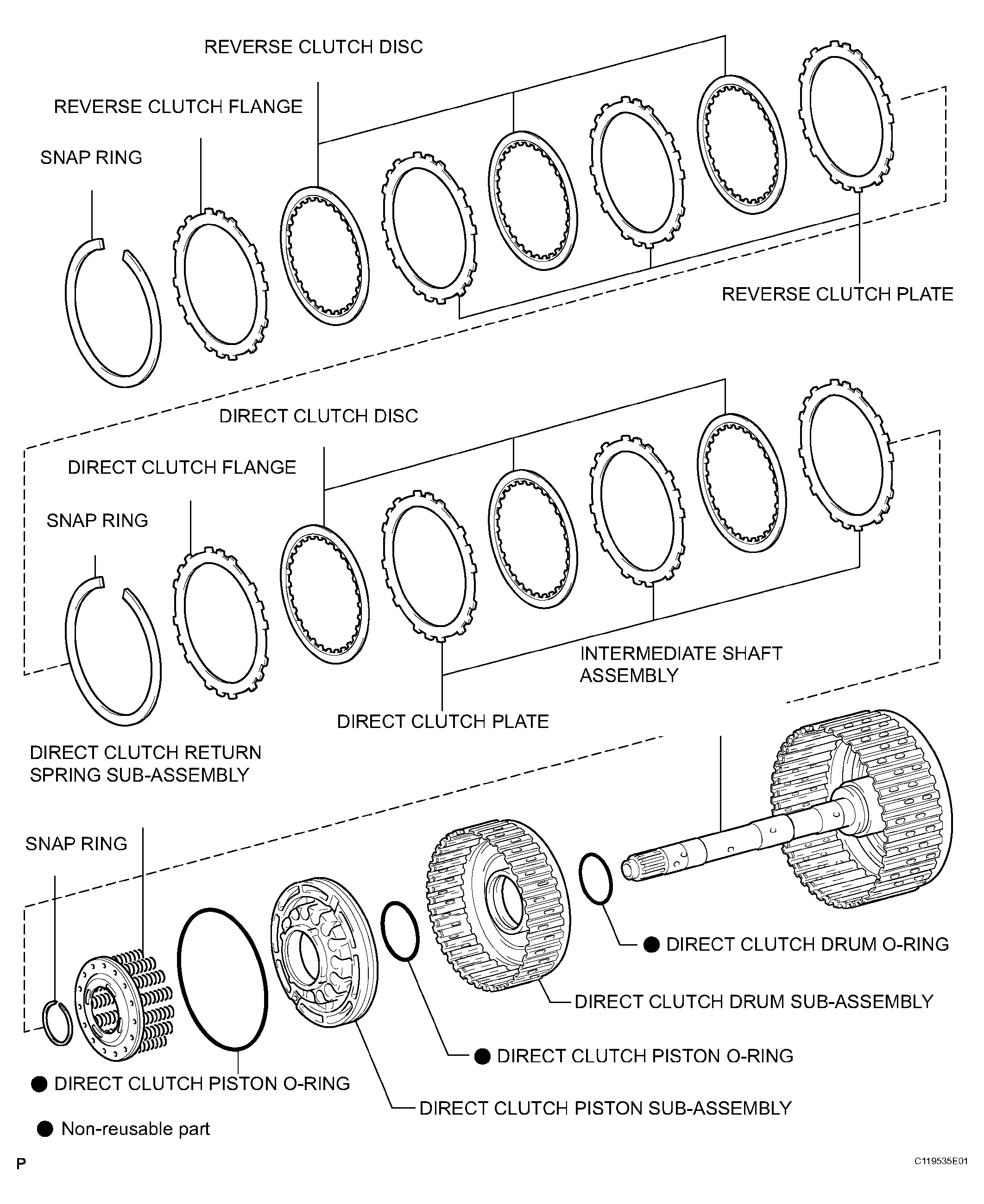

Fig 1: Identifying Intermediate Shaft Components
G04463705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
