Transmission Revolution Sensor: Installation

INSTALL TRANSMISSION REVOLUTION SENSOR
1. Coat O-ring with ATF.
2. Install the transmission revolution sensor with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
3. Connect the connector.
INSTALL AIR CLEANER ASSEMBLY WITH HOSE
Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

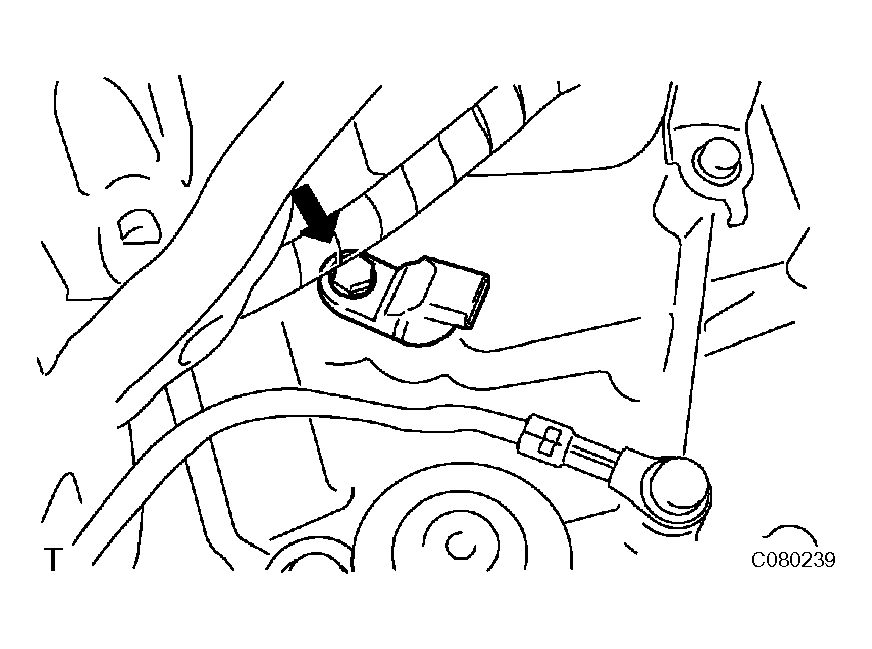

Fig 1: Installing Transmission Revolution Sensor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
