Transmission Wire: Components

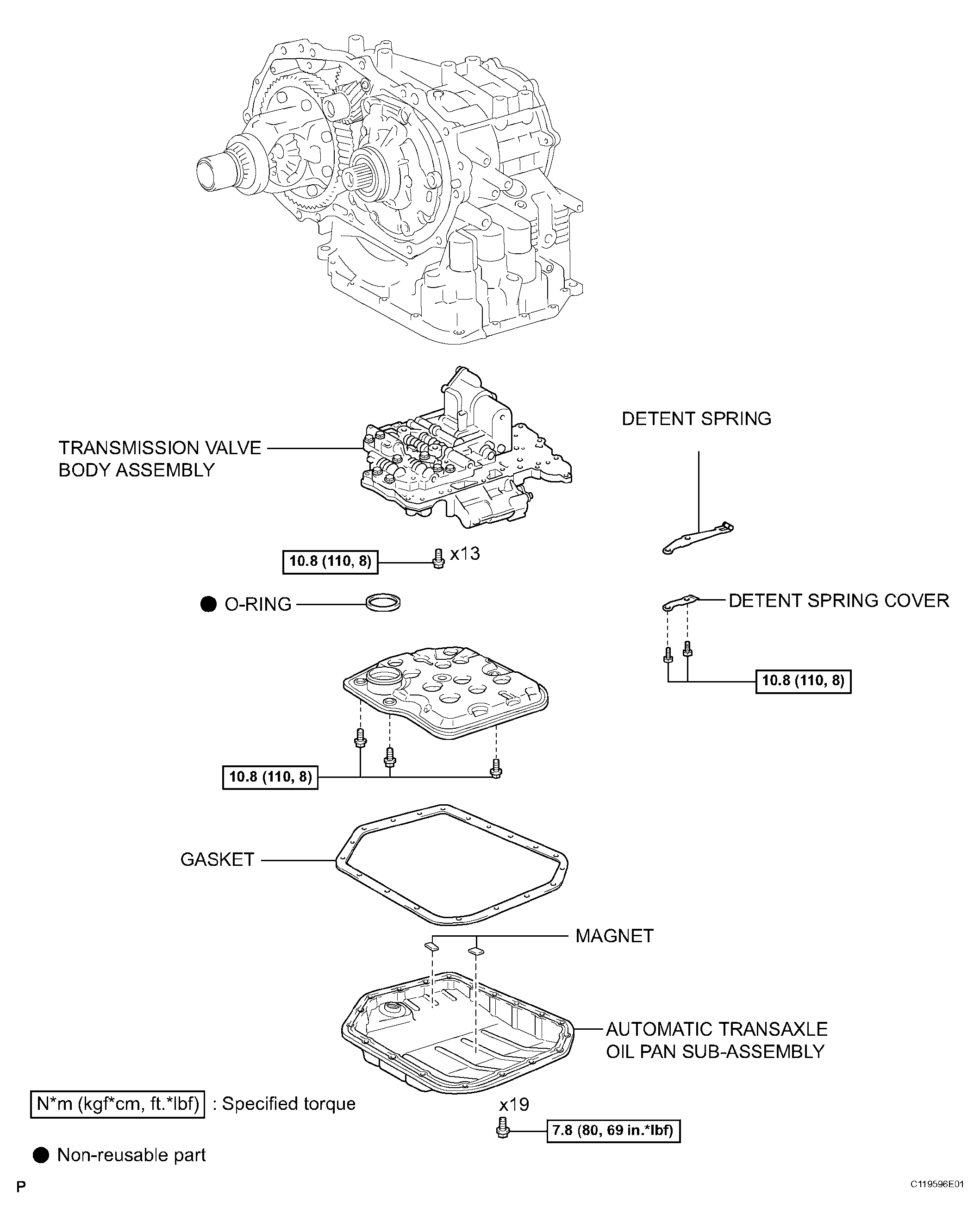

Fig 1: Transmission Wire Replacement Components With Torque Specifications (1 Of 2)
G04463309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

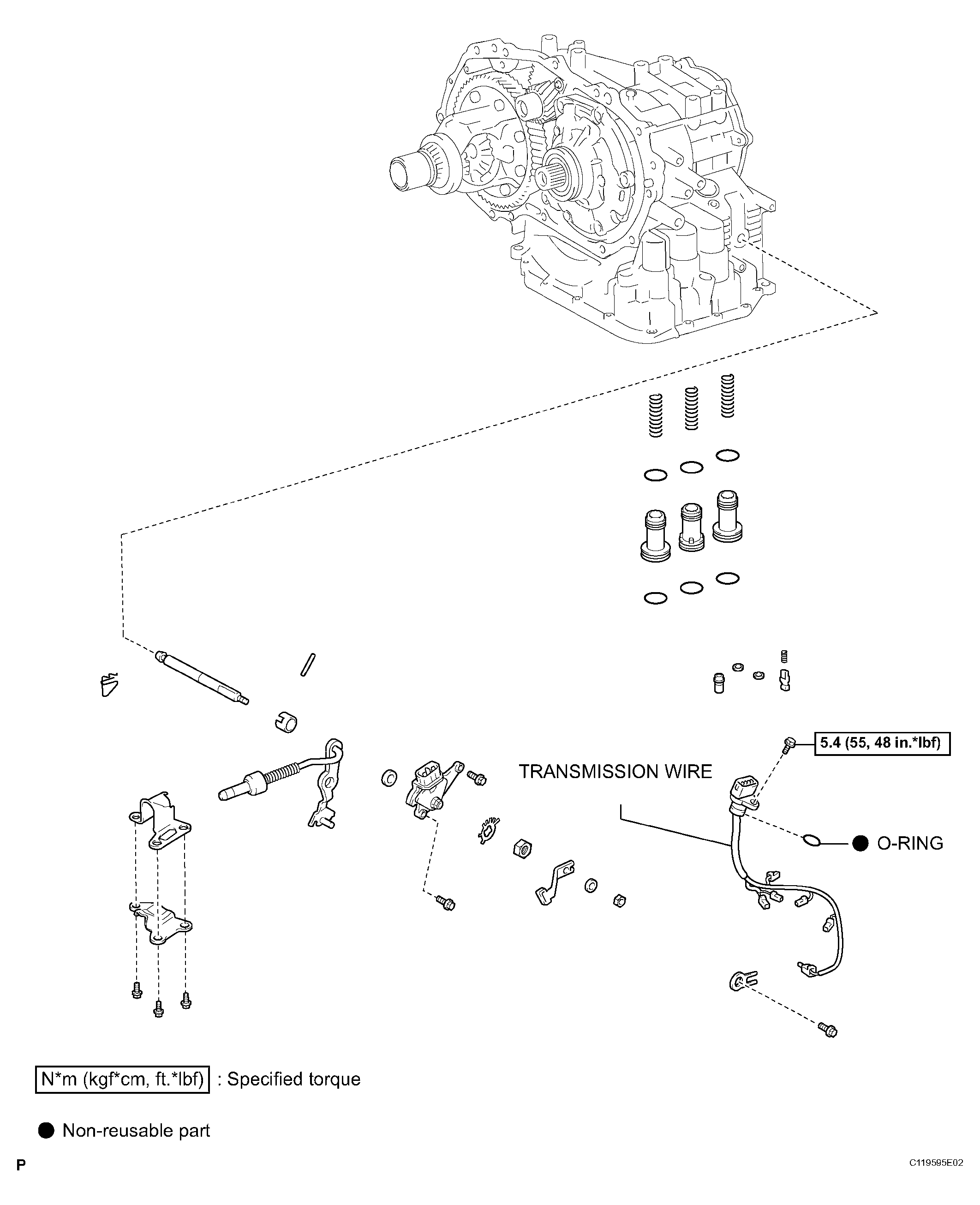

Fig 2: Transmission Wire Replacement Components With Torque Specifications (2 Of 2)
G04463310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
