Valve Body Assembly: Installation

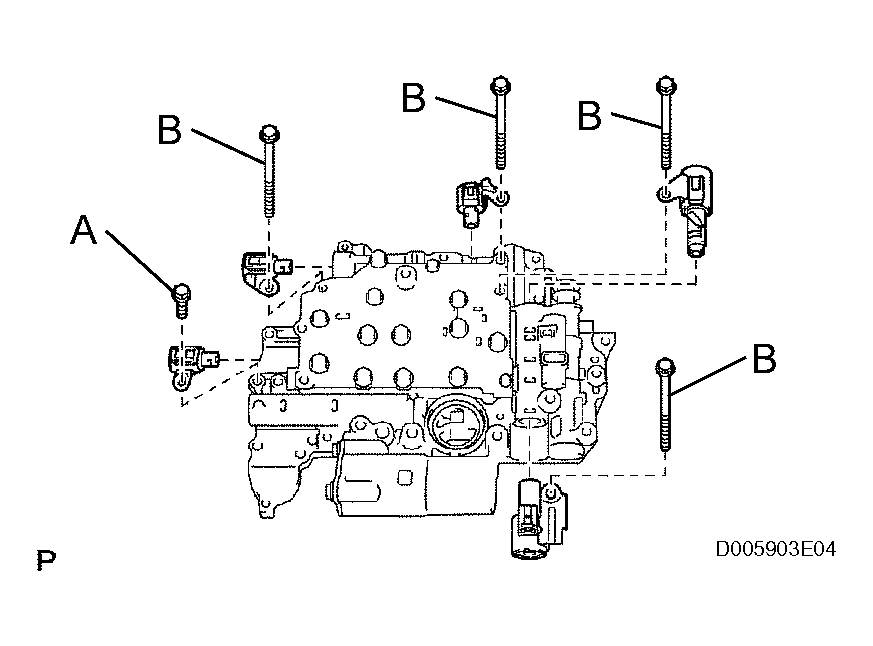

1. Install the 5 shift solenoid valves with the 5 bolts.

   Torque: Bolt A

   11 N*m (110 kgf*cm, 8 ft.*lbf)

   Bolt B

   11 N*m (110 kgf*cm, 8 ft.*lbf)

   Bolt length:

   Bolt A: 14 mm (0.55 in.)

   Bolt B: 55 mm (2.17 in.)

   Fig 1: Installing Shift Solenoid Valves With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

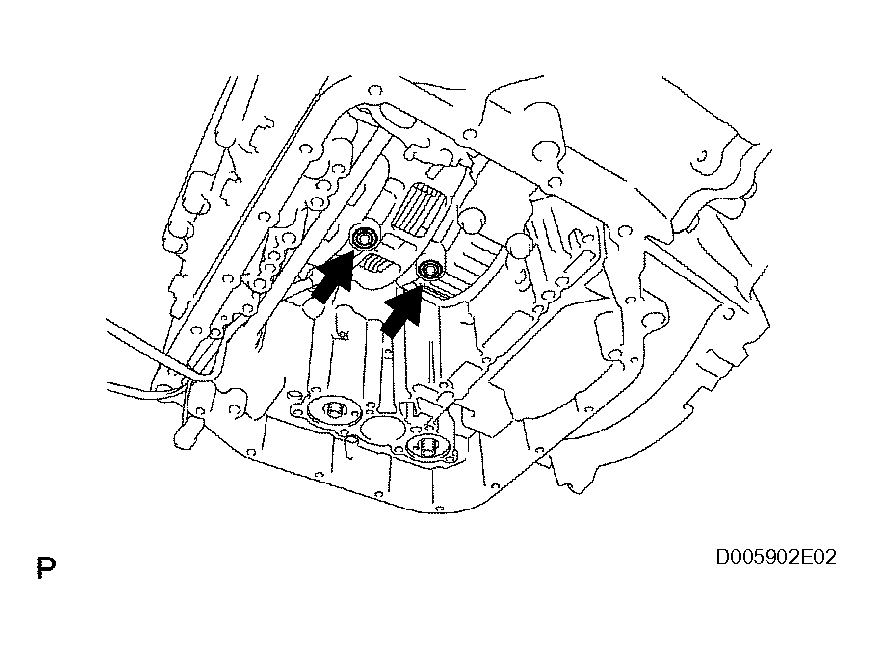

2. Coat 2 new apply gaskets with ATF.
3. Install the gaskets to the transaxle case.
   Fig 2: Coating Apply Gaskets With ATF

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

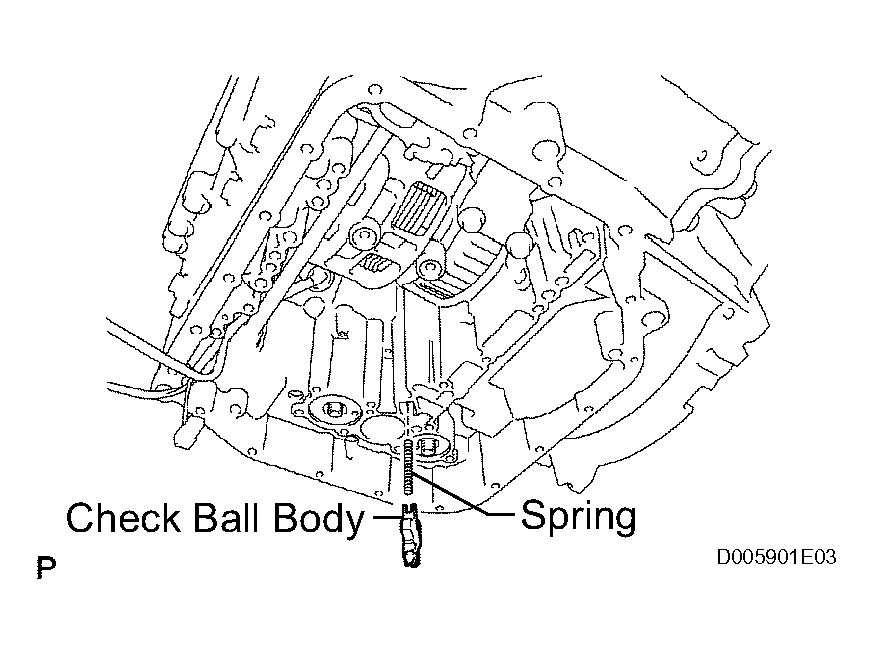

4. Install the spring and check ball body.
   Fig 3: Installing Spring And Check Ball Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Align the groove of the manual valve with the pin of the manual valve lever.

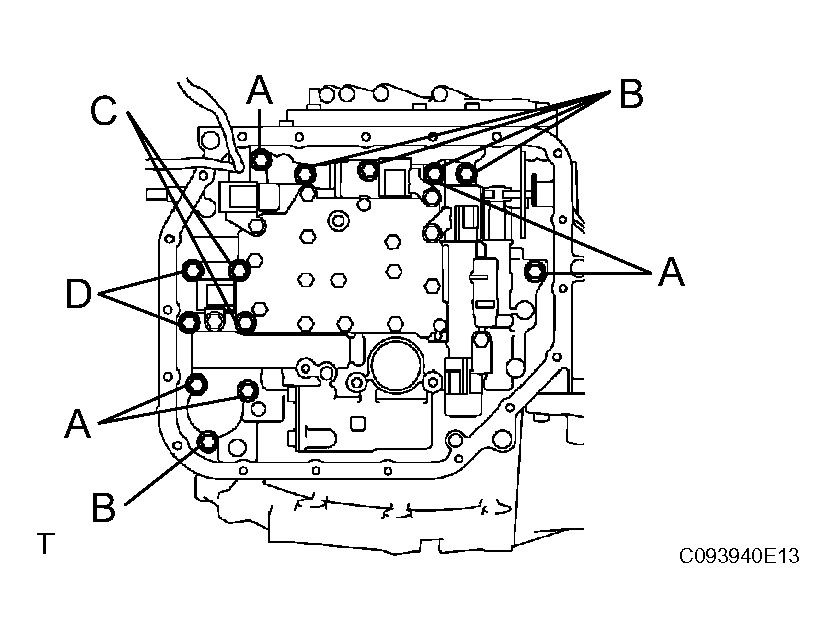

6. Temporarily install the valve body with the 13 bolts.

   Bolt length:

   Bolt A: 32 mm (1.26 in.)

   Bolt B: 22 mm (0.87 in.)

   Bolt C: 55 mm (2.17 in.)

   Bolt D: 45 mm (1.77 in.)

   Fig 4: Installing Valve Body With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

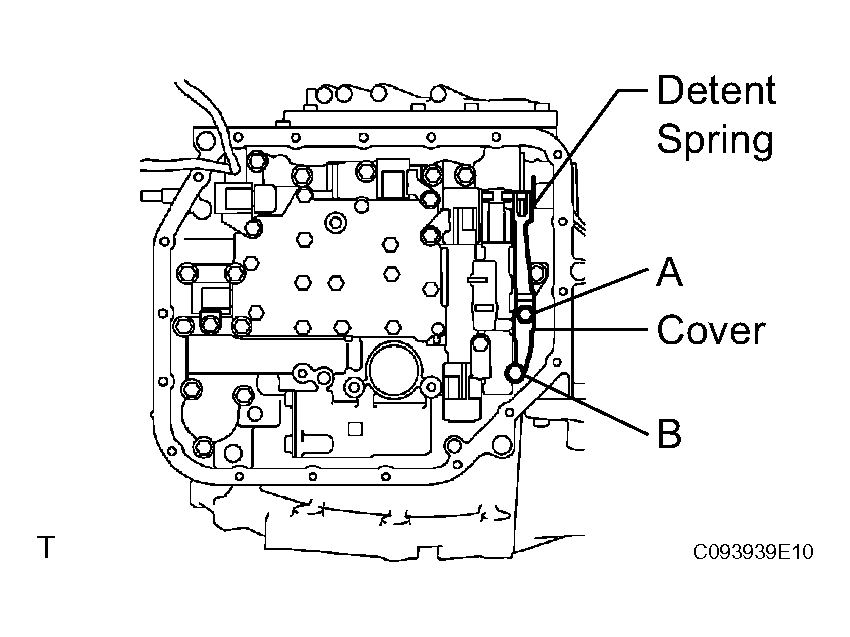

7. Temporarily install the detent spring and cover with the 2 bolts.

   Bolt length:

   Bolt A: 14 mm (0.55 in.)

   Bolt B: 45 mm (1.77 in.)

8. Check that the manual valve lever contacts the center of the roller at the tip of the detent spring.
9. Tighten the 15 bolts.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   Fig 5: Installing Detent Spring And Cover With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

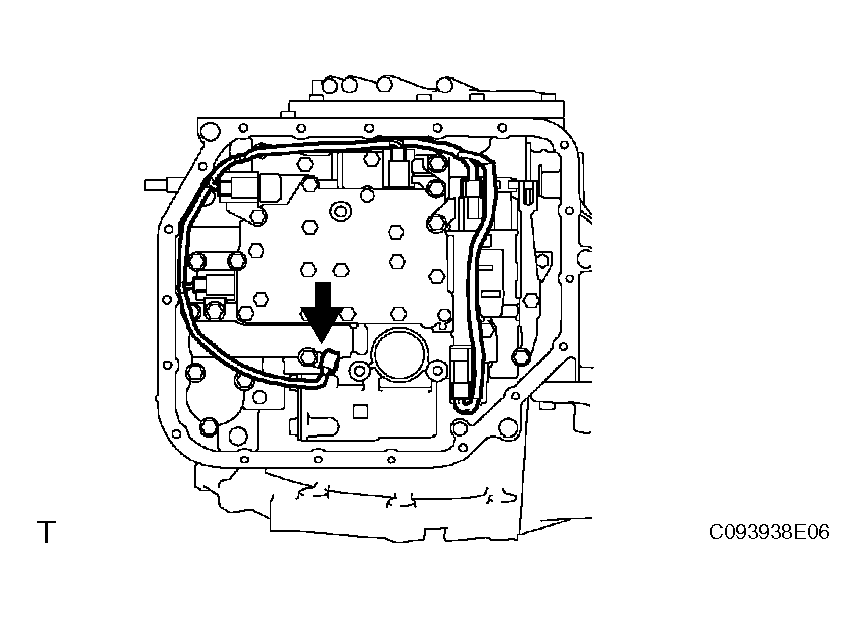

10. Install the ATF temperature sensor with the lock plate and bolt.

    Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

11. Connect the 5 shift solenoid valve connectors.
    Fig 6: Installing ATF Temperature Sensor With Lock Plate And Bolt

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat a new O-ring with ATF.
2. Install the O-ring to the oil strainer.
   Fig 7: Installing O-Ring To Oil Strainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

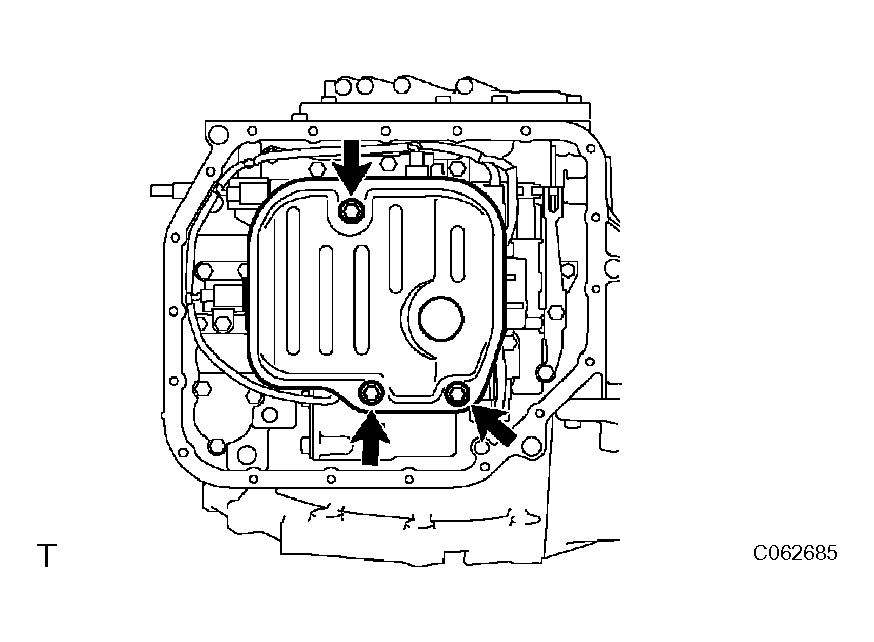

3. Install the oil strainer with the 3 bolts.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   Fig 8: Installing Oil Strainer With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 magnets in the oil pan, as shown in the illustration.
2. Install a new gasket to the oil pan.
   Fig 9: Installing Magnets In Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

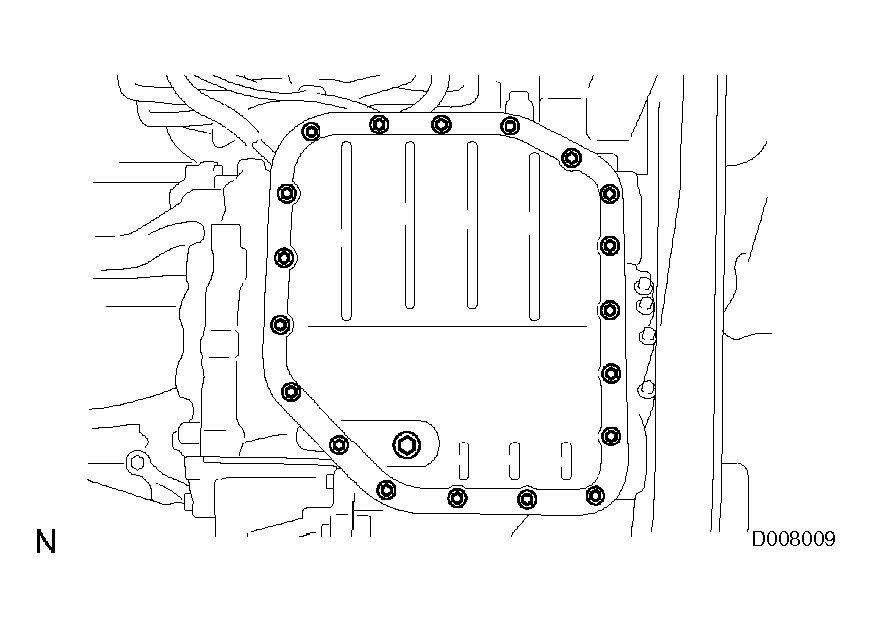

3. Install the oil pan and a new gasket with the 19 bolts.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

Fluid type: T-IV

Capacity: 2.9 liters (3.1 US qts, 2.6 lmp.qts)

Fig 10: Installing Oil Pan And Gasket With Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See INSPECTION PROCEDURE  )
