Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

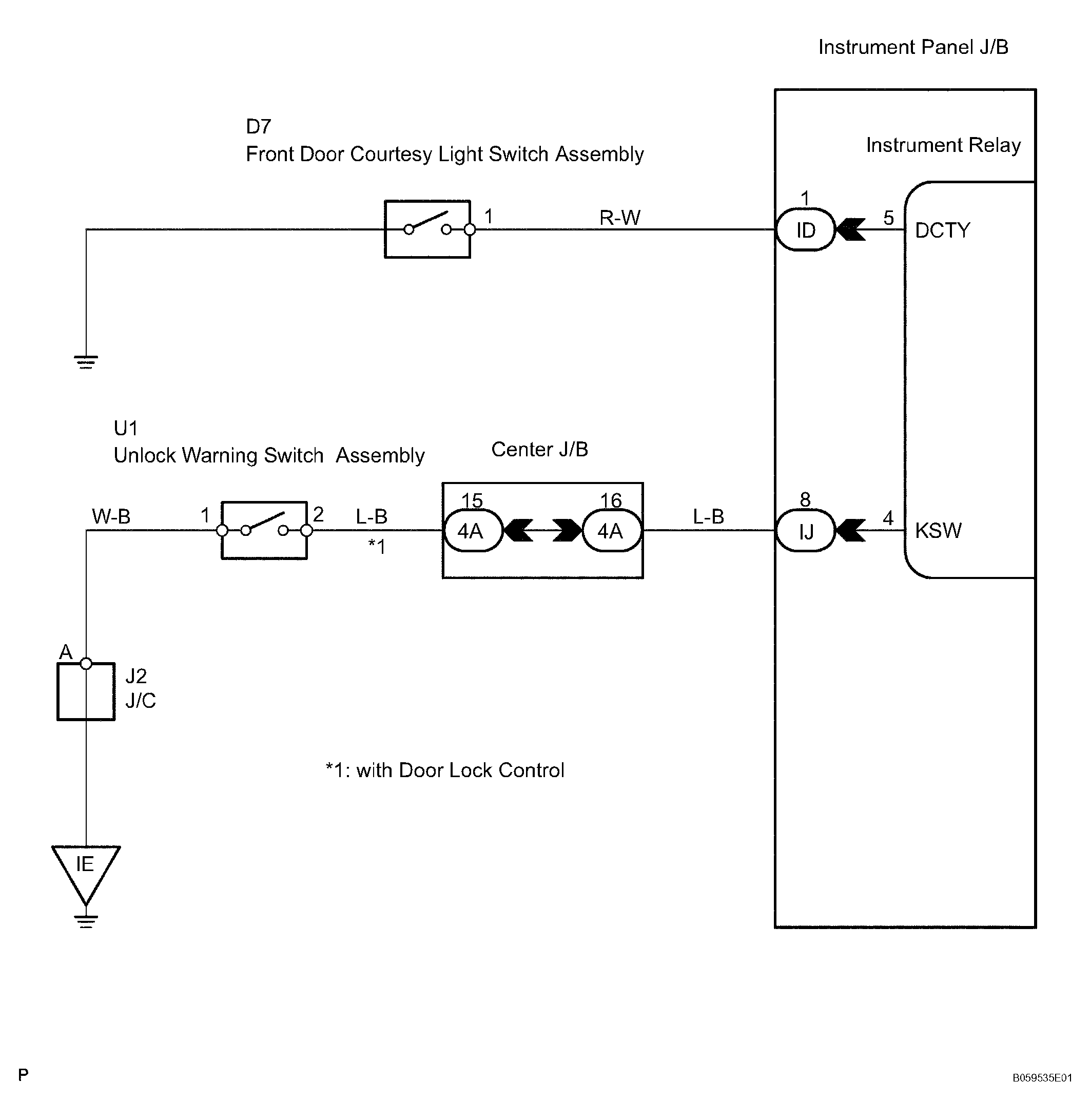

Fig 1: Key Lock-In Prevention Function Does Not Work Properly - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
