Inspection Procedure

1. See input signal check (See HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS ).
2. Check indicator light operation when driving with vehicle speed above 40 km/h (25 mph), and with vehicle speed below 40 km/h (25 mph).

   OK:

   Vehicle speed above 40 km/h (25 mph): Indicator light blinks

   Vehicle speed below 40 km/h (25 mph): Indicator light stays ON

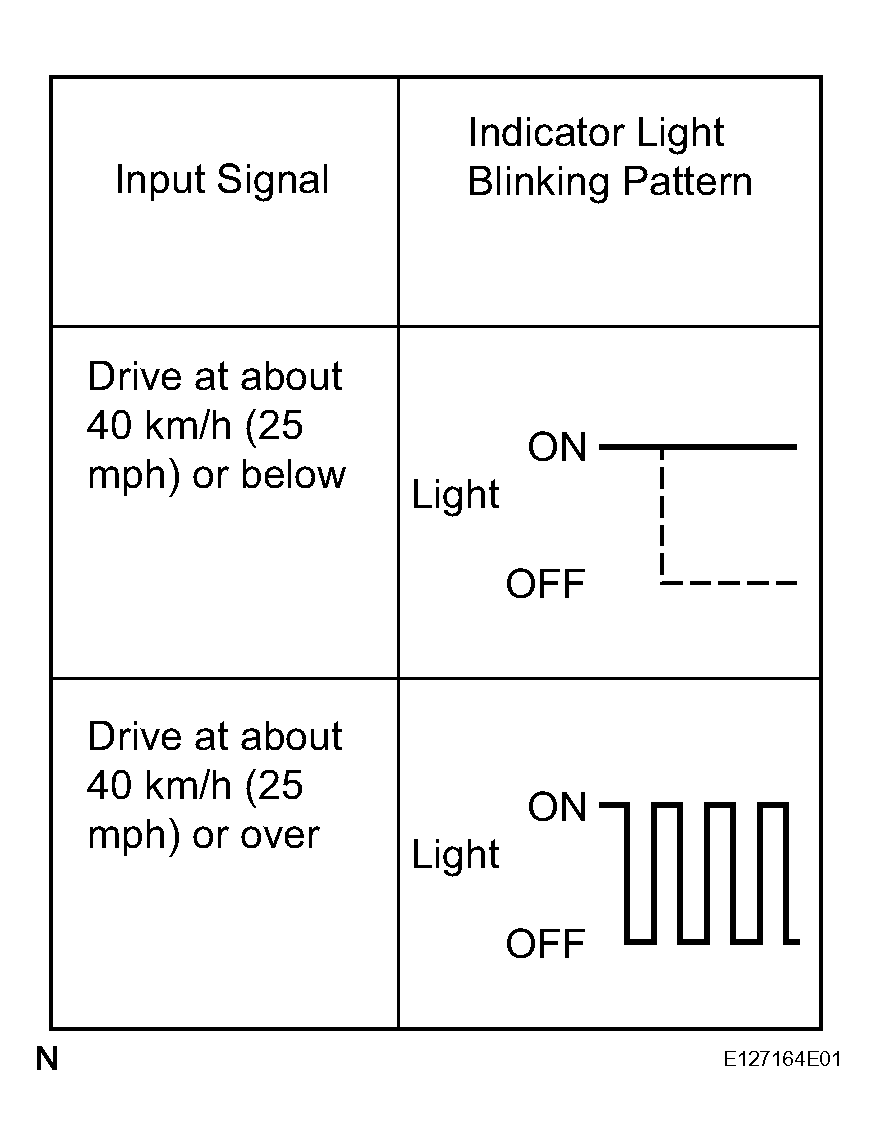

Fig 1: Checking Input Signal Blinking Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

NG: GO TO NEXT STEP

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR COMBINATION METER ASSEMBLY

OK: GO TO NEXT STEP

1. Check for open and short circuit in harness and connector between cruise control ECU assembly and combination meter assembly (See HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS ).

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: CHECK AND REPLACE CRUISE CONTROL ECU ASSEMBLY
