DTC 21: Open Vehicle Speed Sensor Circuit; DTC 23: Vehicle Speed Signal Abnormal: Wiring Diagram

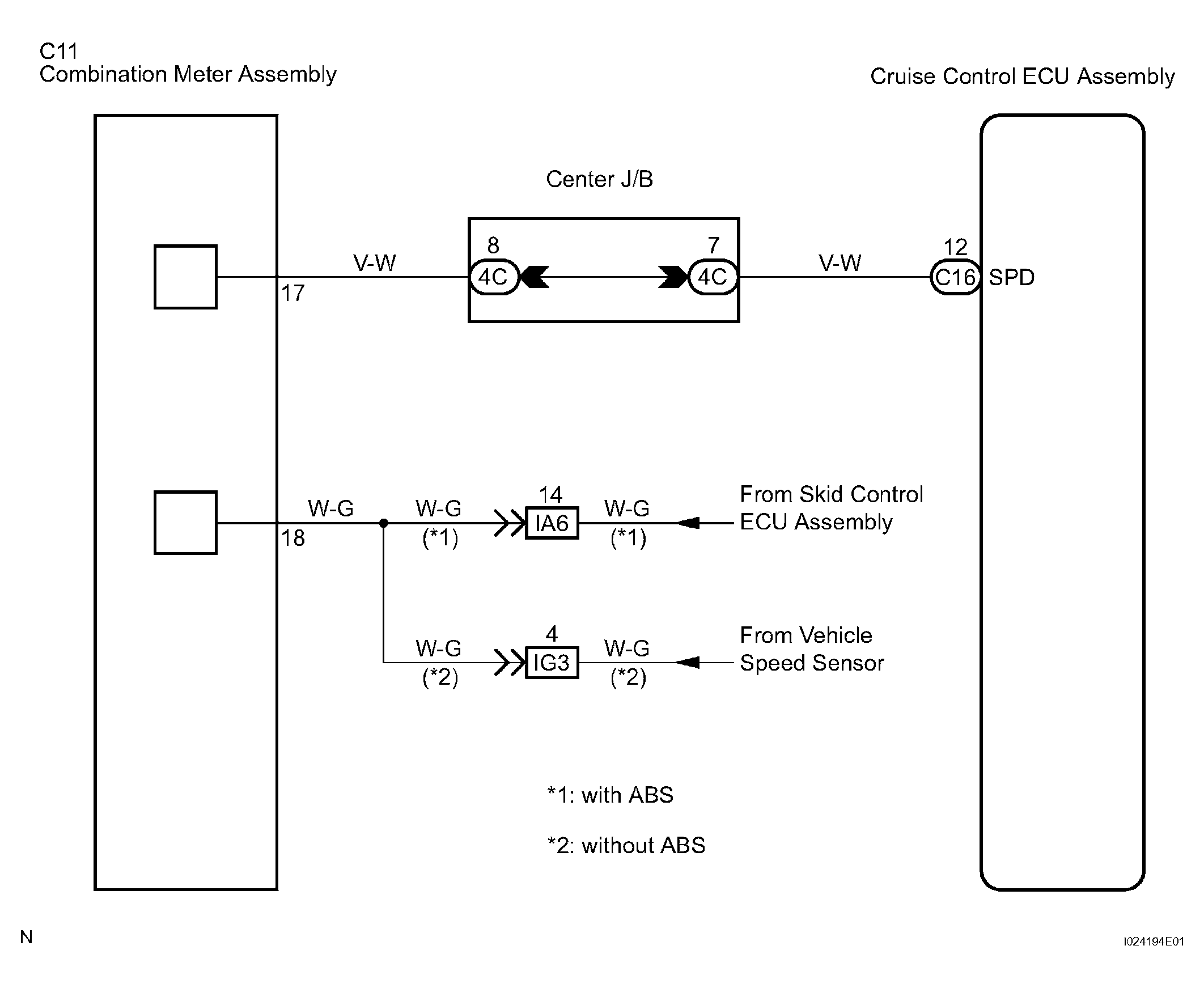

Fig 1: Vehicle Speed Sensor Circuit Wiring Diagram
G04466393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
