Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier: Wiring Diagram

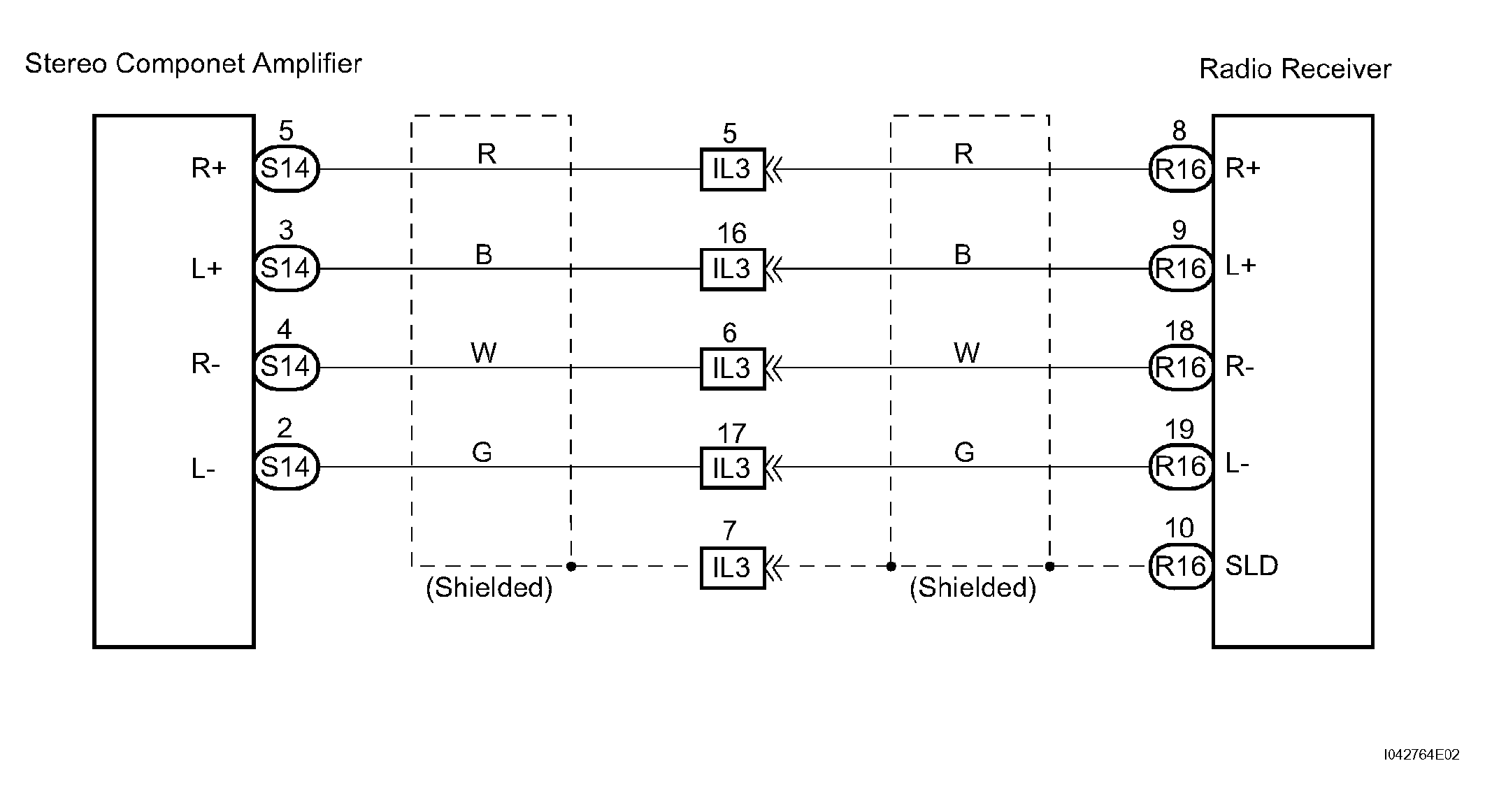

Fig 1: Sound Signal Circuit Between Radio Receiver And Stereo Component Amplifier Wiring Diagram
G04466705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
