DTC P0115 Engine Coolant Temperature Circuit: DTC P0117 Engine Coolant Temperature Circuit Low Input: DTC P0118 Engine Coolant Temperature Circuit High Input: Wiring Diagram

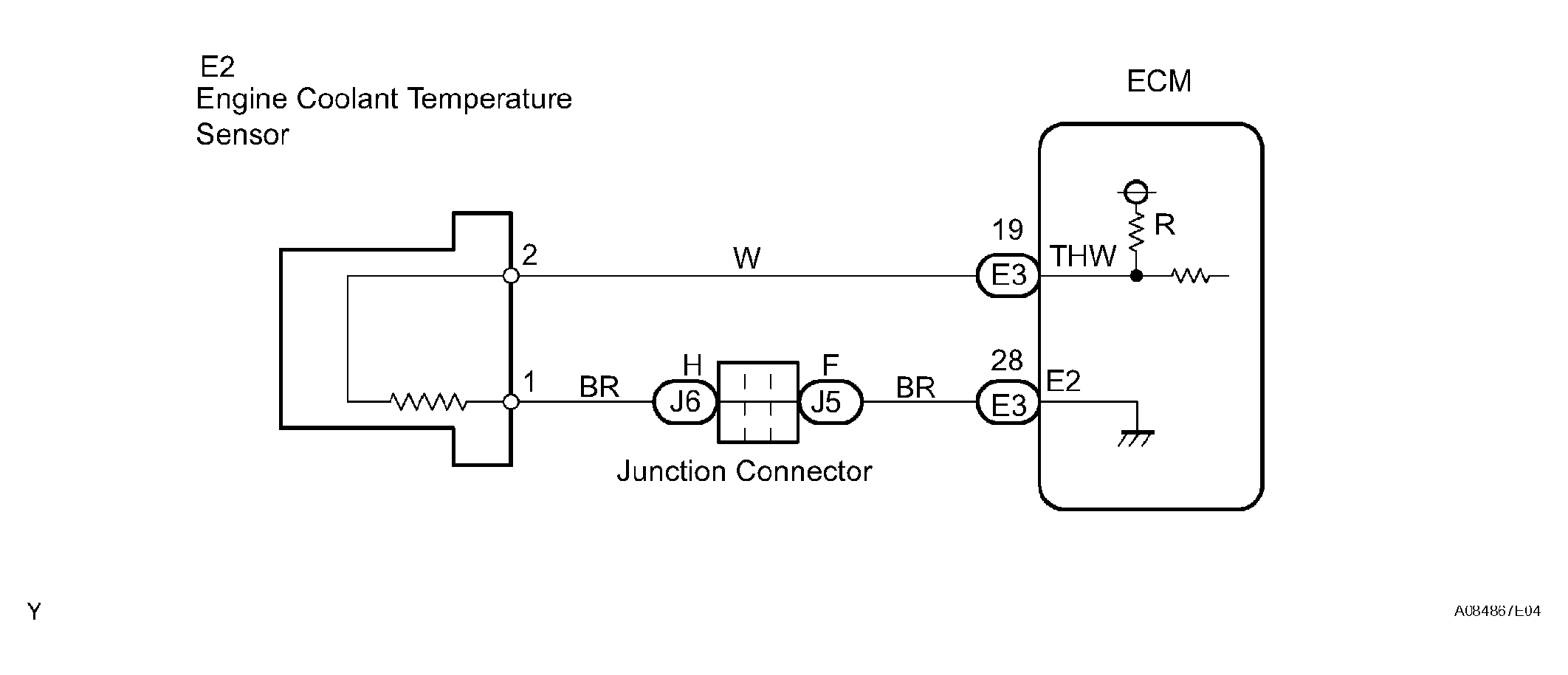

Fig 1: Engine Coolant Temperature Sensor Circuit - Wiring Diagram
G04460160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
