THROTTLE BODY (for 4WD): Components

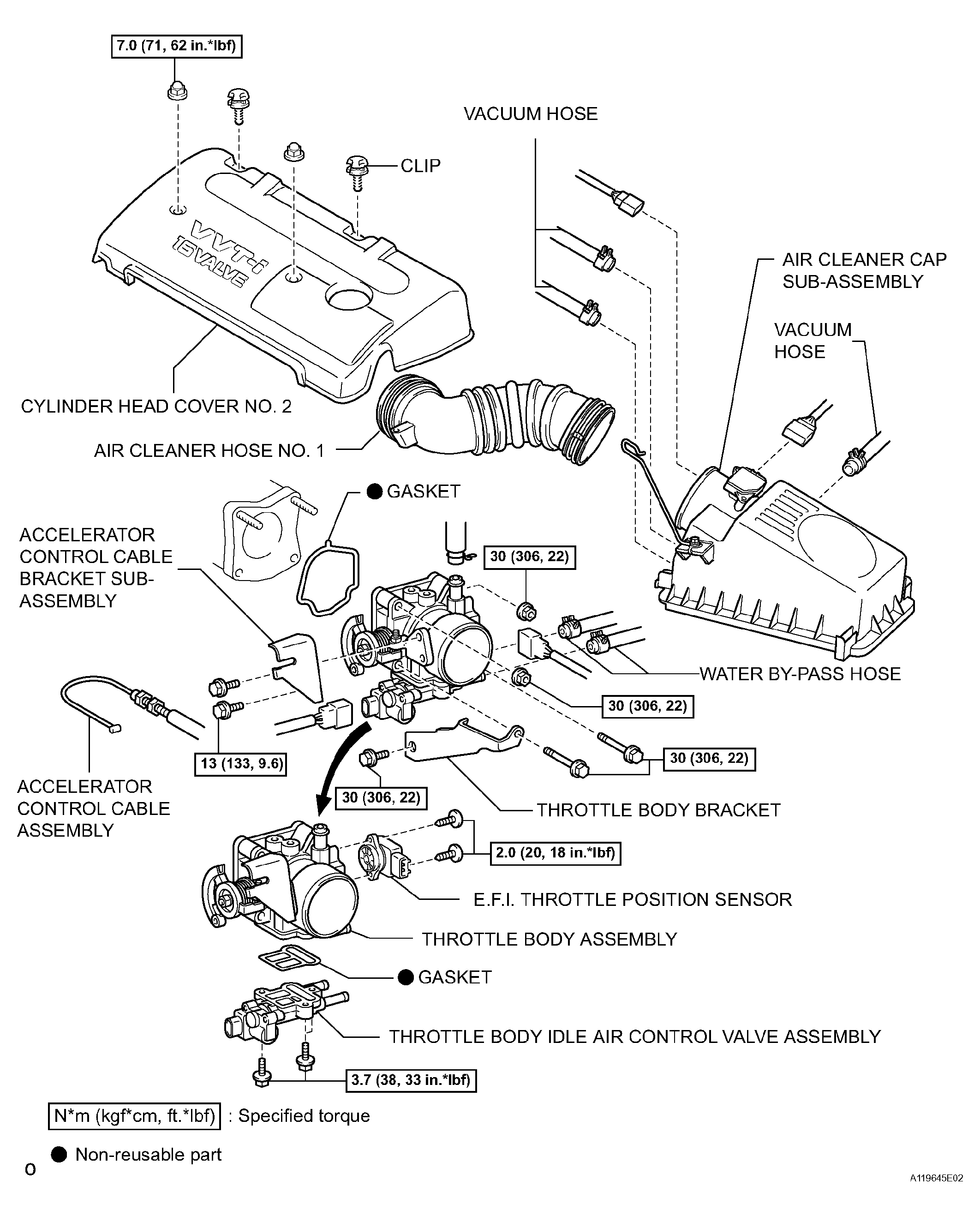

Fig 1: Throttle Body (4WD) Replacement Components With Torque Specifications
G04460467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
