Inspection Procedure

HINT:

If troubleshooting (wire harness inspection) is difficult to perform, remove the front passenger seat installation bolts to see the under surface of the seat cushion.
In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.

CHECK DTC
1. Turn the ignition switch to the ON position.
2. Clear the DTCs stored in the memory (See DTC CHECK/CLEAR ).
  HINT:

  First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
3. Turn the ignition switch to the LOCK position.
4. Turn the ignition switch to the ON position.
5. Check the DTCs (See DTC CHECK/CLEAR ).
  OK: DTC B1780 is not output.

  HINT:

  Codes other than DTC B1780 may be output at this time, but they are not related to this check.
OK: USE SIMULATION METHOD TO CHECK

NG: GO TO NEXT STEP
CHECK CONNECTION OF CONNECTORS
1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative (-) terminal cable from the battery.
3. Check that the connectors are properly connected to the occupant classification ECU and the front occupant classification sensor LH.
  OK: The connectors are properly connected.
NG: CONNECT CONNECTORS

OK: GO TO NEXT STEP

CHECK FRONT SEAT WIRE RH (SHORT TO B+)

Disconnect the connectors from the occupant classification ECU and the front occupant classification sensor LH.
Connect the negative (-) terminal cable to the battery.
Turn the ignition switch to the ON position.

Measure the voltage according to the value(s) in FRONT SEAT WIRE RH (SHORT TO B+) .

Standard voltage

FRONT SEAT WIRE RH (SHORT TO B+)

Tester connection	Condition	Specified condition
O5-1 (SGD1) - Body ground	Ignition switch ON	Below 1 V
O5-7 (SIG1) - Body ground	Ignition switch ON	Below 1 V
O5-11 (SVC1) - Body ground	Ignition switch ON	Below 1 V

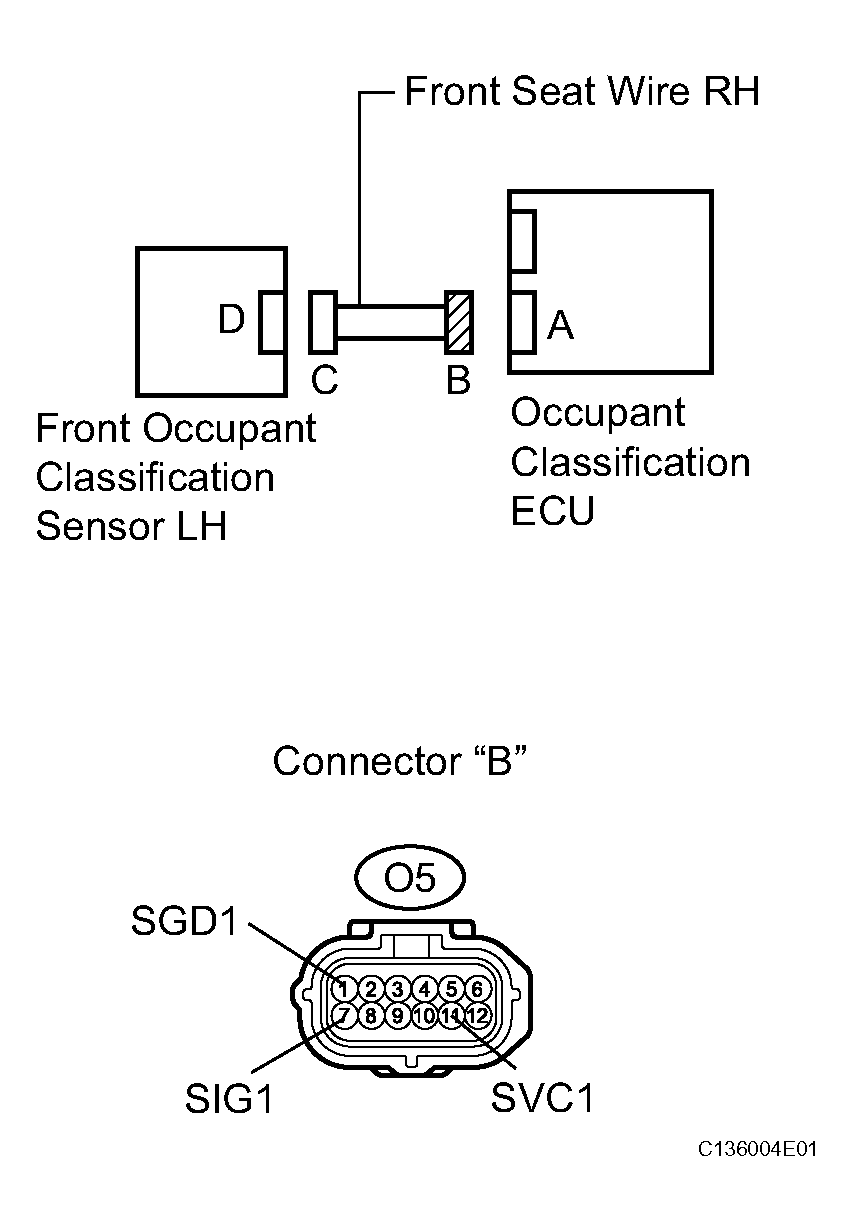

Fig 1: Checking Front Seat Wire RH (Short To B+)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE FRONT SEAT WIRE RH

OK: GO TO NEXT STEP

CHECK FRONT SEAT WIRE RH (OPEN)

Turn the ignition switch to the LOCK position.
Disconnect the negative (-) terminal cable from the battery.
Using a service wire, connect O6-1 (SVC1) and O6-3 (SGD1), and connect O6-2 (SIG1) and O6-3 (SGD1) of connector "C".
NOTE: Do not forcibly insert a service wire into the terminals of the connector when connecting.

Measure the resistance according to the value(s) in FRONT SEAT WIRE RH (OPEN) .

Standard resistance

FRONT SEAT WIRE RH (OPEN)

Tester connection	Condition	Specified condition
O5-7 (SIG1) - O5-1 (SGD1)	Always	Below 1
O5-11 (SVC1) - O5-1 (SGD1)	Always	Below 1

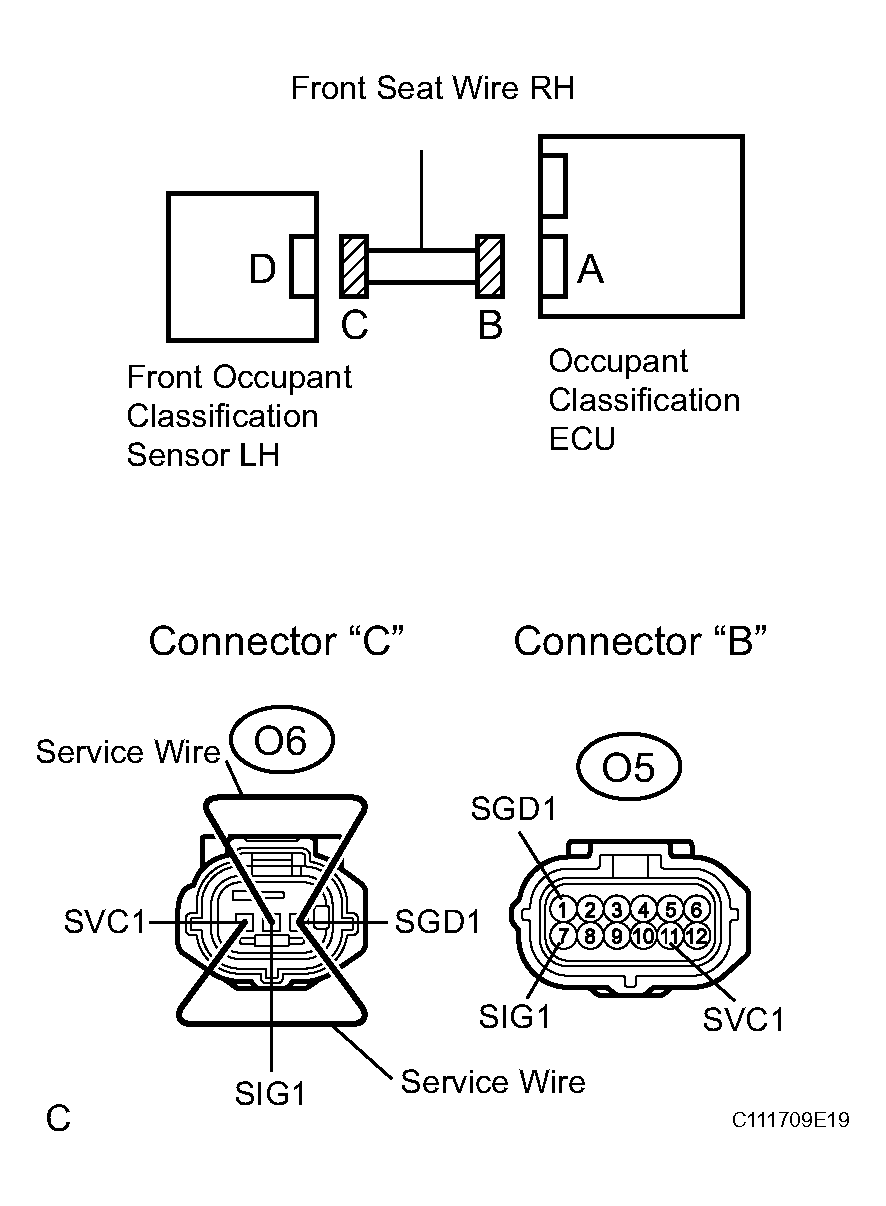

Fig 2: Checking Front Seat Wire RH (Open)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE FRONT SEAT WIRE RH

OK: GO TO NEXT STEP

CHECK FRONT SEAT WIRE RH (SHORT)

Disconnect the service wire from connector "C".

Measure the resistance according to the value(s) in FRONT SEAT WIRE RH (SHORT) .

Standard resistance

FRONT SEAT WIRE RH (SHORT)

Tester connection	Condition	Specified condition
O5-7 (SIG1) - O5-1 (SGD1)	Always	1 M or higher
O5-11 (SVC1) - O5-1 (SGD1)	Always	1 M or higher
O5-7 (SIG1) - O5-11 (SVC1)	Always	1 M or higher

Fig 3: Checking Front Seat Wire RH (Short)

NG: REPAIR OR REPLACE FRONT SEAT WIRE RH

OK: GO TO NEXT STEP

CHECK FRONT SEAT WIRE RH (SHORT TO GROUND)

Measure the resistance according to the value(s) in FRONT SEAT WIRE RH (SHORT TO GROUND) .

Standard resistance

FRONT SEAT WIRE RH (SHORT TO GROUND)

Tester connection	Condition	Specified condition
O5-1 (SGD1) - Body ground	Always	1 M or higher
O5-7 (SIG1) - Body ground	Always	1 M or higher
O5-11 (SVC1) - Body ground	Always	1 M or higher

Fig 4: Checking Front Seat Wire RH (Short To Ground)

NG: REPAIR OR REPLACE FRONT SEAT WIRE RH

OK: GO TO NEXT STEP

CHECK DTC
1. Connect the connectors to the occupant classification ECU and the front occupant classification sensor LH.
2. Connect the negative (-) terminal cable to the battery.
3. Turn the ignition switch to the ON position.
4. Clear the DTCs stored in the memory (See DTC CHECK/CLEAR ).
  HINT:

  First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
5. Turn the ignition switch to the LOCK position.
6. Turn the ignition switch to the ON position.
7. Check the DTCs (See DTC CHECK/CLEAR ).
  OK: DTC B1780 is not output.

  HINT:

  Codes other than DTC B1780 may be output at this time, but they are not related to this check.
OK: USE SIMULATION METHOD TO CHECK

NG: GO TO NEXT STEP
REPLACE OCCUPANT CLASSIFICATION ECU
1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative (-) terminal cable from the battery.
3. Replace the occupant classification ECU (See REMOVAL ).
  HINT:

  Perform the inspection using parts from a normal vehicle if possible.
PERFORM ZERO POINT CALIBRATION
1. Connect the negative (-) terminal cable to the battery.
2. Connect the intelligent tester to the DLC3.
3. Turn the ignition switch to the ON position.
4. Using the intelligent tester, perform "Zero point calibration" (See INITIALIZATION ).
  OK: "COMPLETED" is displayed.
NG: Go to step 12

OK: GO TO NEXT STEP
PERFORM SENSITIVITY CHECK
1. Using the intelligent tester, perform "Sensitivity check" (See INITIALIZATION ).
  Standard value: 27 to 33 kg (59.52 to 72.75 lb)
NG: Go to step 12

OK: GO TO NEXT STEP
CHECK DTC
1. Connect the negative (-) terminal cable to the battery.
2. Turn the ignition switch to the ON position.
3. Clear the DTCs stored in the memory (See DTC CHECK/CLEAR ).
  HINT:

  First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
4. Turn the ignition switch to the LOCK position.
5. Turn the ignition switch to the ON position.
6. Check the DTCs (See DTC CHECK/CLEAR ).
  OK: DTC B1780 is not output.

  HINT:

  Codes other than DTC B1780 may be output at this time, but they are not related to this check.
OK: END

NG: GO TO NEXT STEP
REPLACE FRONT SEAT BACK ASSEMBLY RH
1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative (-) terminal cable from the battery.
3. Replace the front seat back assembly RH (See DISASSEMBLY ).
PERFORM ZERO POINT CALIBRATION
1. Connect the negative (-) terminal cable to the battery.
2. Connect the intelligent tester to the DLC3.
3. Turn the ignition switch to the ON position.
4. Using the intelligent tester, perform "Zero point calibration" (See INITIALIZATION ).
  OK: "COMPLETED" is displayed.
PERFORM SENSITIVITY CHECK
1. Using the intelligent tester, perform "Sensitivity check" (See INITIALIZATION ).
  Standard value: 27 to 33 kg (59.52 to 72.75 lb)
END
