DTC B1793 Occupant Classification Sensor Power Supply Circuit Malfunction: Wiring Diagram

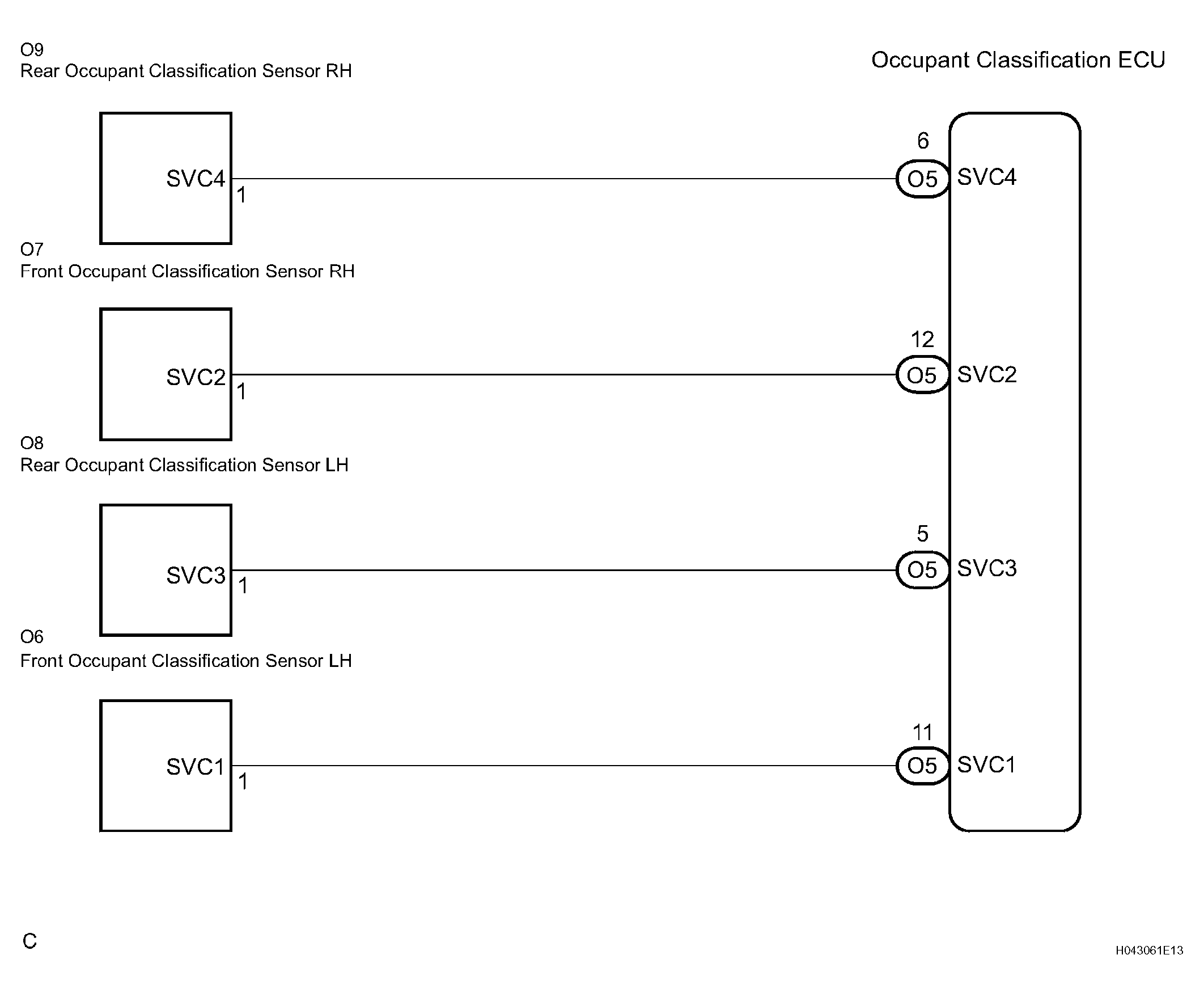

Fig 1: Occupant Classification Sensor Power Supply Circuit Wiring Diagram
G04466069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
