Transmission Control Cable Assembly: Components

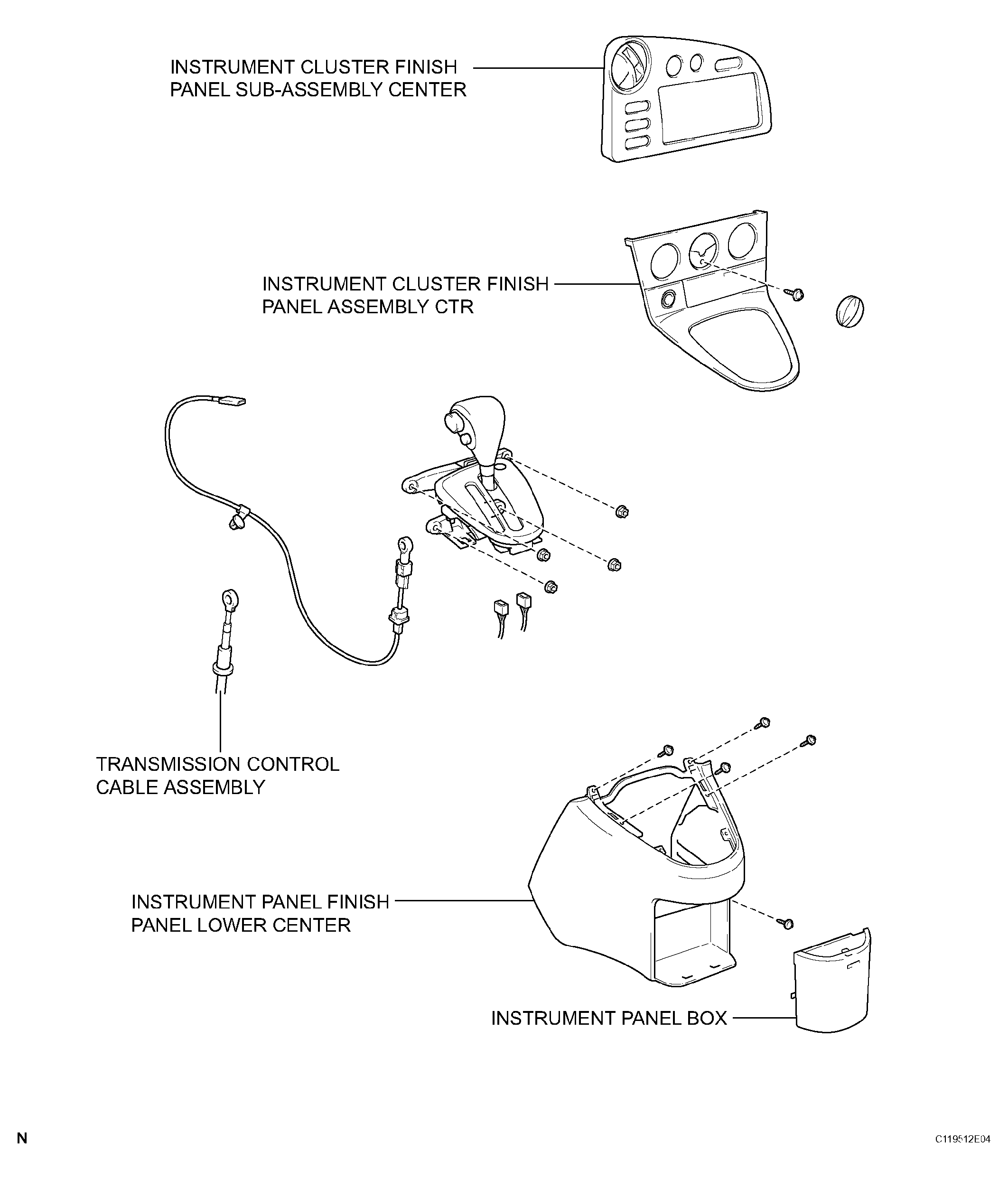

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications (1 Of 4)
G04462686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

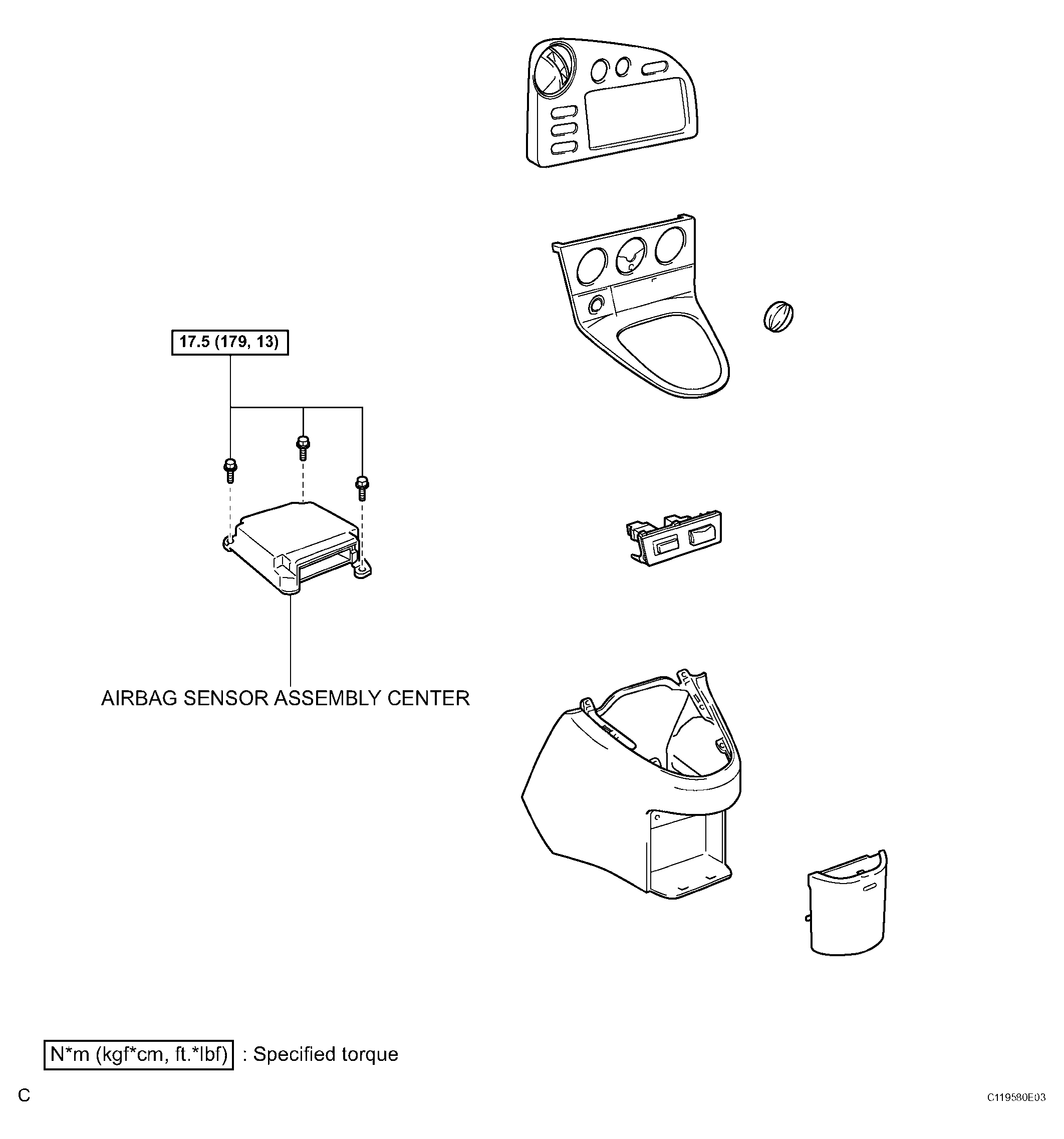

Fig 2: Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 4)
G04462687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

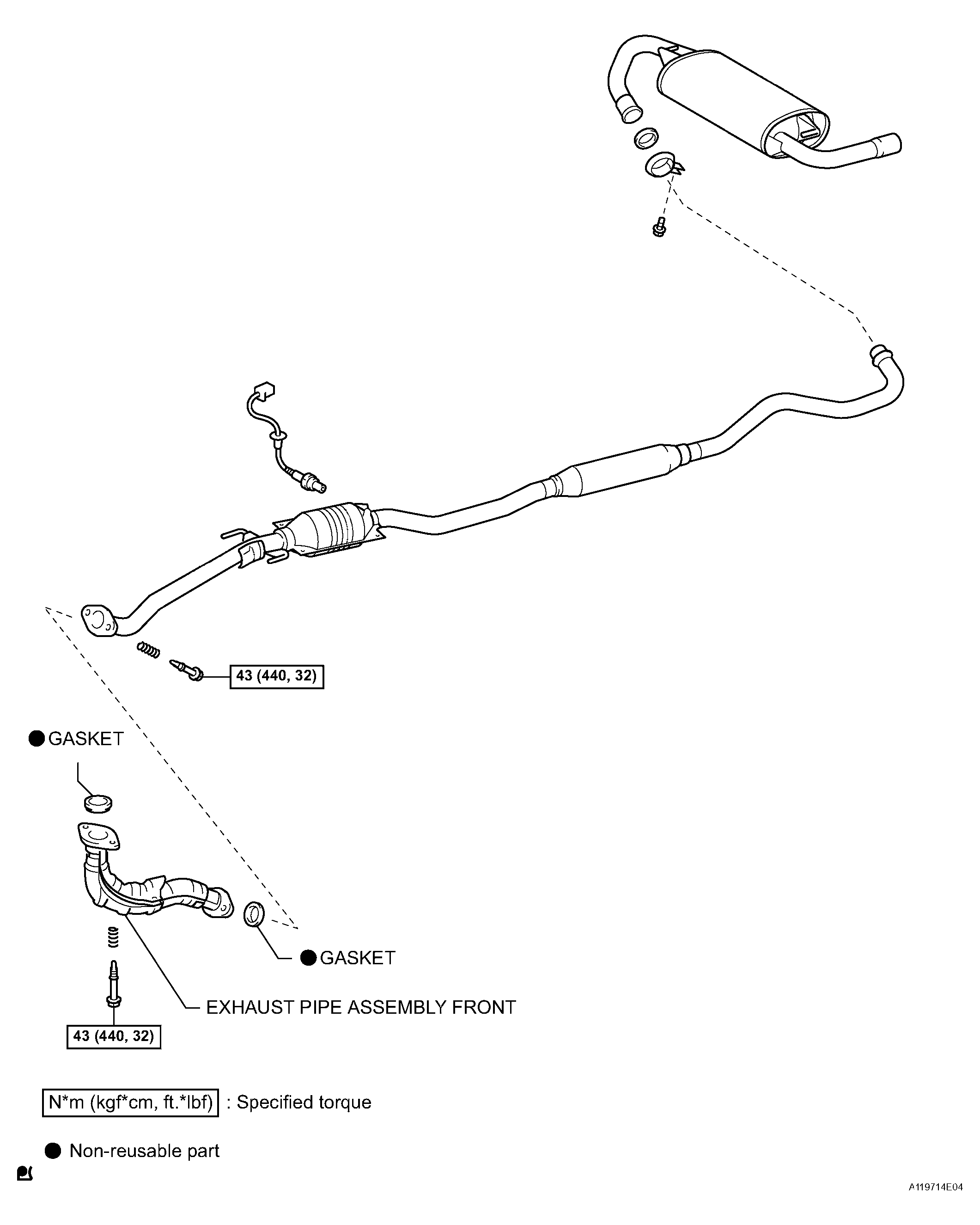

Fig 3: Transmission Control Cable Assembly Replacement Components With Torque Specifications (3 Of 4)
G04462688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

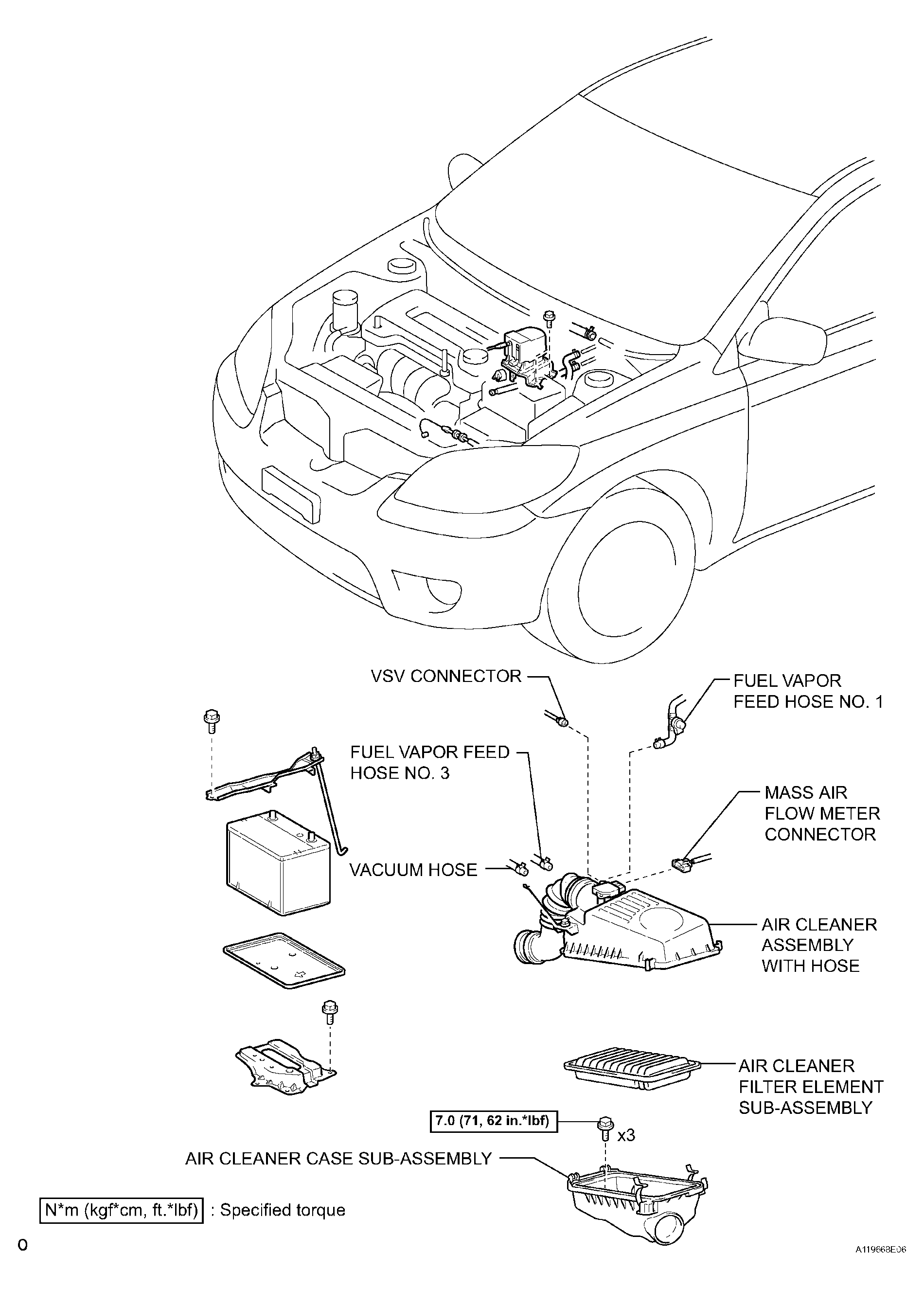

Fig 4: Transmission Control Cable Assembly Replacement Components With Torque Specifications (4 Of 4)
G04462689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
