Transmission Control Cable Assembly: Installation

1. Install the retainer to the shift cable.
2. Pull in the control cable assembly to the body.
3. Install the 2 bolts.

   Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

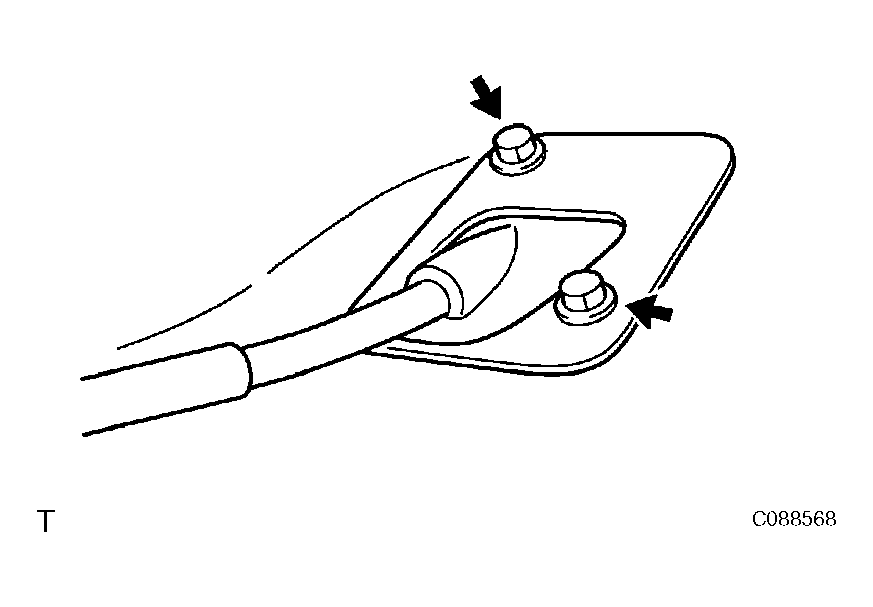

   Fig 1: Pulling Control Cable Assembly To Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the control cable to the shift lever plate.

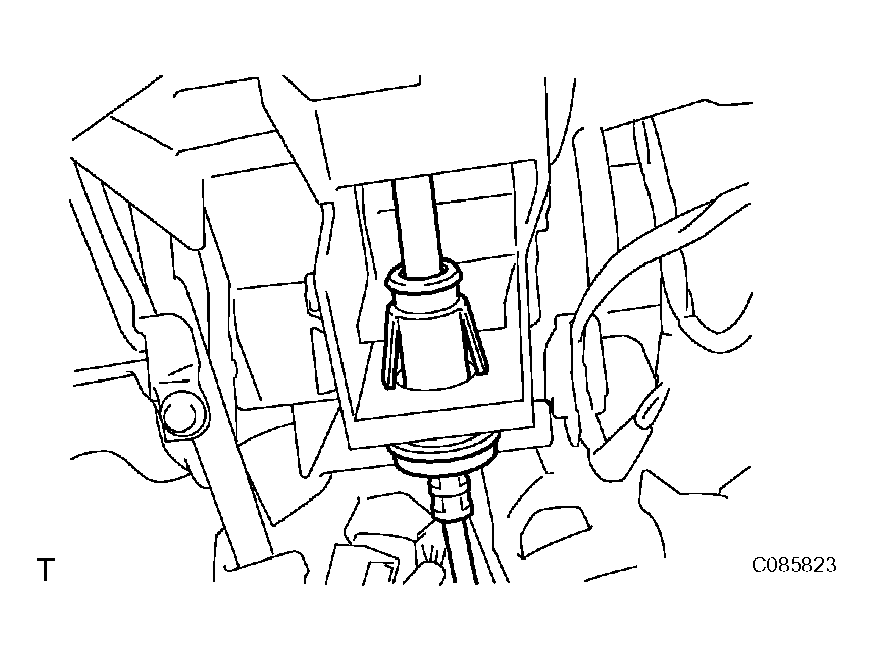

   Fig 2: Installing Control Cable To Shift Lever Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the control cable end to the floor shift assembly.

   HINT:

   Install it with the uneven surface facing up.

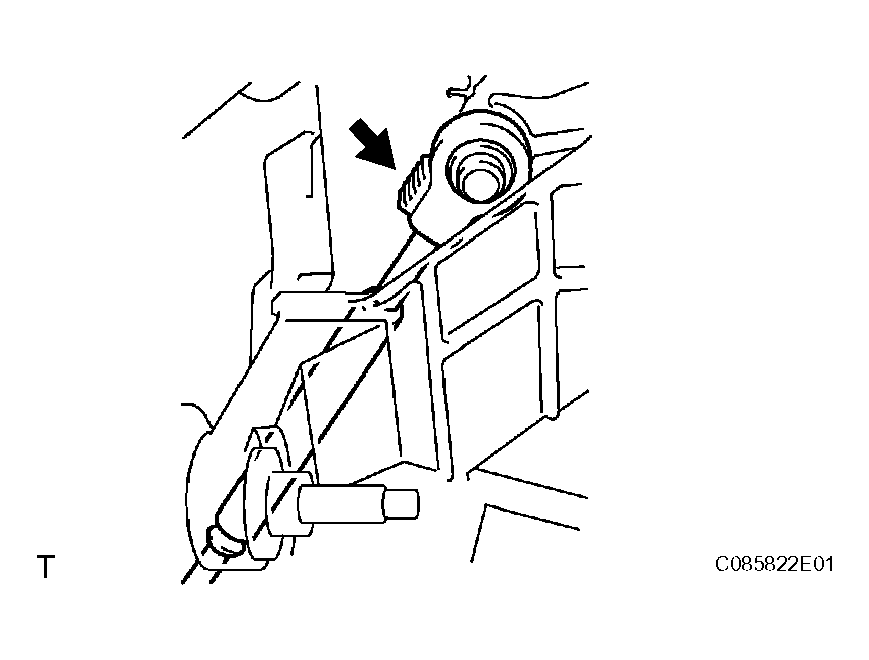

   Fig 3: Connecting Control Cable End To Floor Shift Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the control cable with the 2 nuts to the body.

   Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

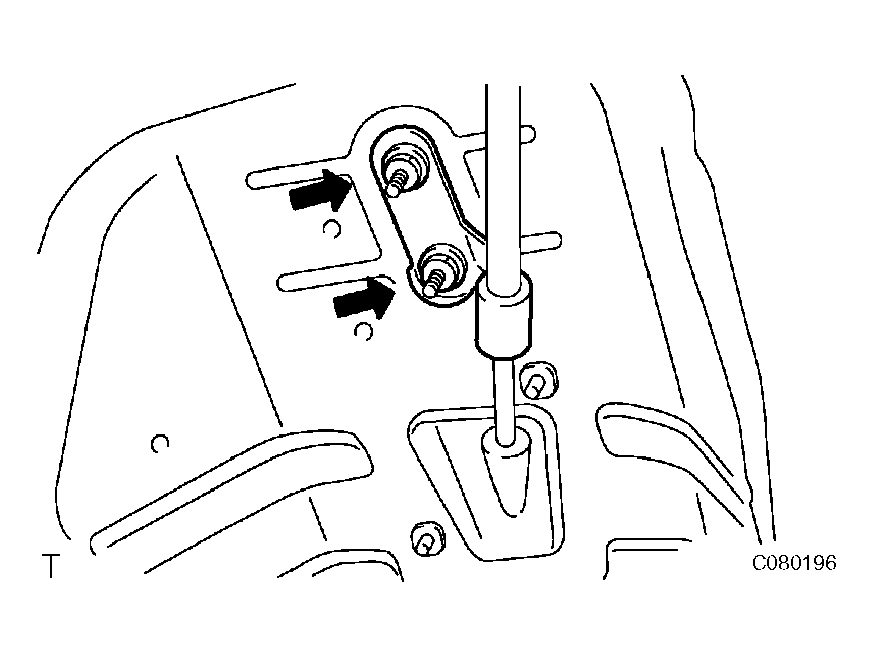

   Fig 4: Installing Control Cable With Nuts To Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the control cable to the control cable support.
8. Temporarily install the control cable to the control shaft lever with nut.
   Fig 5: Connecting Control Cable To Control Cable Support

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

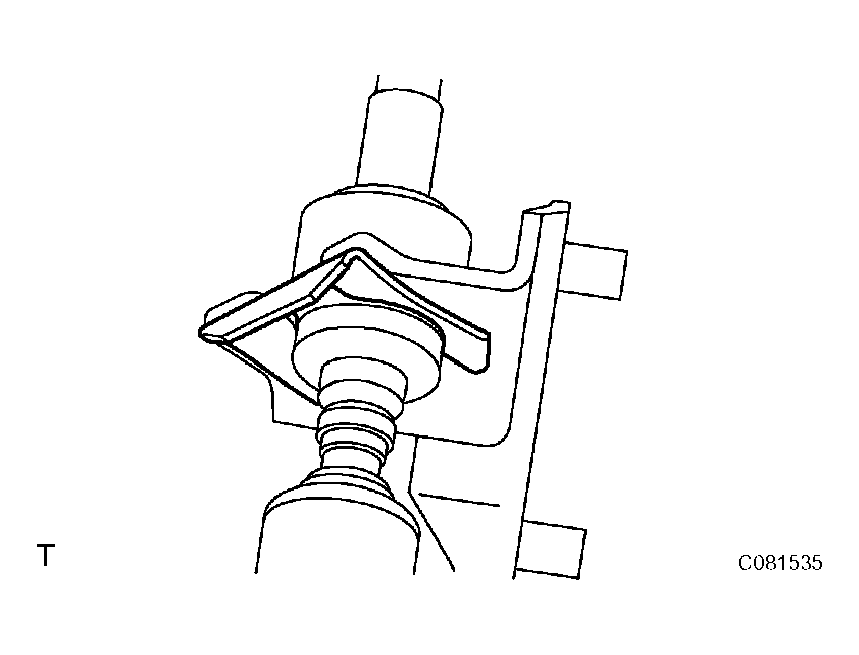

9. Install the control cable with the clip to the bracket.
   NOTE: Insert the cable securely.

Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

1. Install the heat insulator with the 3 nuts.

   Torque: 5.0 N*m (50 kgf*cm, 44 in.*lbf)

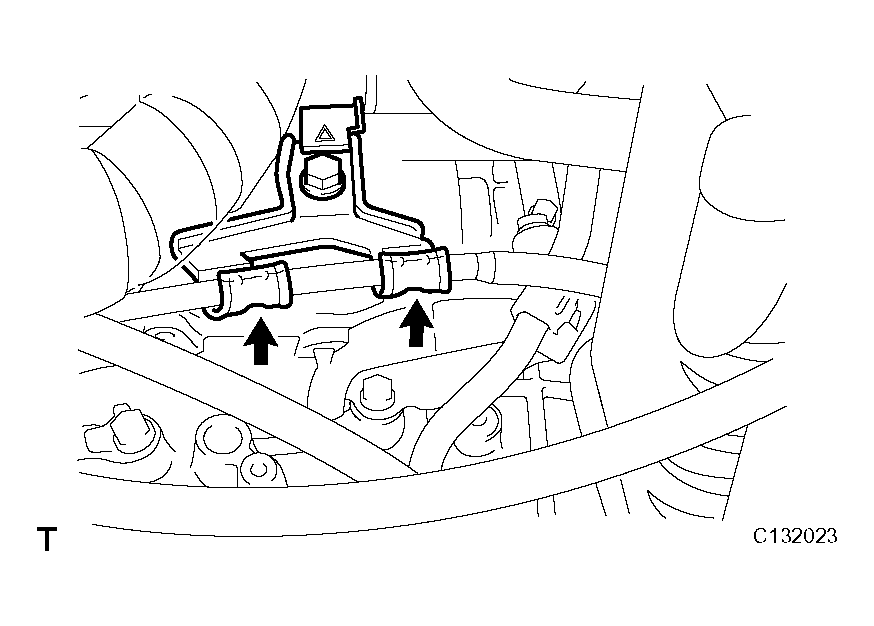

   Fig 6: Installing Front Floor Heat Insulator No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the floor panel brace with the 2 nuts.

   Torque: 30 N*m (302 kgf*cm, 22 ft.*lbf)

1. Connect the oxygen sensor connector.
2. Install the floor carpet and foot rest.

HINT:

(See )
