Inspection Procedure

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch to the ON position, and turn the intelligent tester main switch on.
3. Select the item "STP LIGHT SW2 M", "STP LIGHT SW2 S" and "STP LIGHT SW1 S" in the DATA LIST, and read its value displayed on the intelligent tester.
4. Check that the stop lights come on when the brake pedal is depressed, and go off when the brake pedal is released.

   CCS (ECM):

   CCS (ECM)



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   STP LIGHT SW2 M	Stop light SW signal (Main CPU) / ON or OFF	ON: Brake pedal depressed OFF: Brake pedal released	-
   STP LIGHT SW2 S	Stop light SW signal (Sub CPU) / ON or OFF	ON: Brake pedal depressed OFF: Brake pedal released	-
   STP LIGHT SW1 S	Stop light SW signal (Sub CPU) / ON or OFF	ON: Brake pedal depressed OFF: Brake pedal released	-

   OK: When the brake pedal is operated, the normal conditions listed above are shown on the display.

   Result

   RESULT OF INTELLIGENT TESTER



   Result	Proceed to
   NG	A
   OK (When troubleshooting according to the PROBLEM SYMPTOM TABLE)	B
   OK (When troubleshooting according to the DTC chart)	C

B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

C: REPLACE ECM

A: GO TO NEXT STEP

1. Disconnect the stop light switch assembly connector.
2. Measure the resistance according to the values in STOP LIGHT SWITCH ASSEMBLY  .

   Resistance

   STOP LIGHT SWITCH ASSEMBLY



   Switch condition	Tester connection	Specified value
   Switch pin free	1 - 2	Below 1 Ω
   Switch pin free	3 - 4	10 kΩ or higher
   Switch pin pushed in	1 - 2	10 kΩ or higher
   Switch pin pushed in	3 - 4	Below 1 Ω

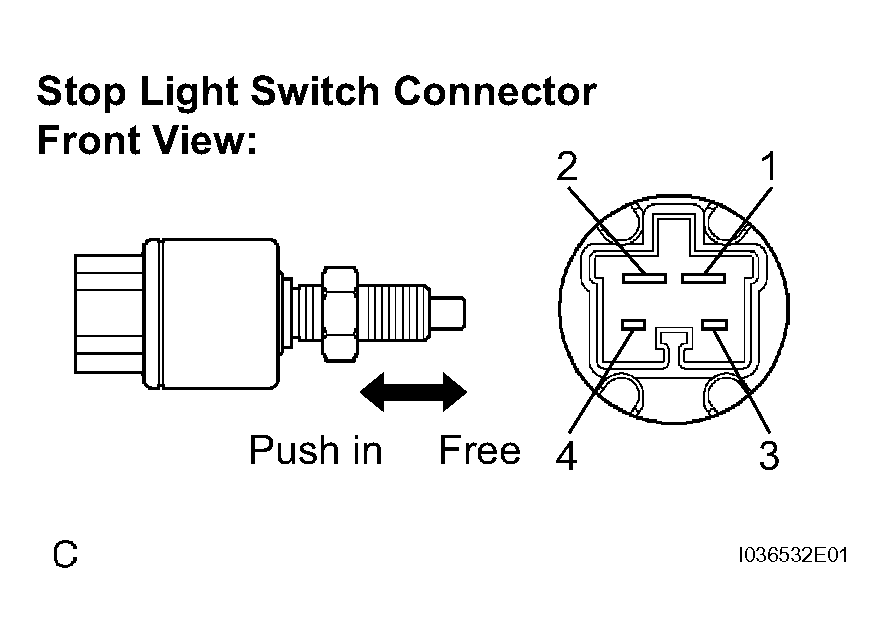

   Fig 1: Inspecting Stop Light Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE STOP LIGHT SWITCH ASSEMBLY

OK: GO TO NEXT STEP

1. Measure the voltage according to the value(s) in HARNESS AND CONNECTOR  .

   Voltage

   HARNESS AND CONNECTOR



   Tester connection	Condition	Specified condition
   S7-2 - Body ground	Always	10 to 14 V
   S7-3 - Body ground	Ignition SW ON	10 to 14 V

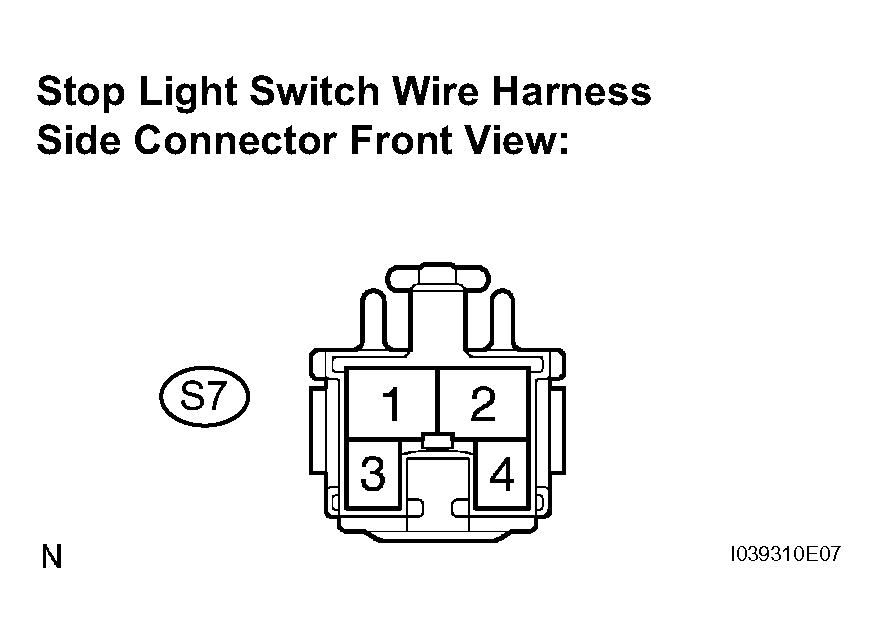

   Fig 2: Checking Harness And Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP

1. Reconnect the stop light switch connector.
2. Disconnect the connector from the ECM.
3. Turn the ignition switch to the ON position.
4. Measure the voltage according to the value(s) in ECM  .

   Voltage

   ECM



   Tester connection	Condition	Specified condition
   E5-19 (STP) - Body ground	Brake pedal depressed	10 to 14 V
   E5-19 (STP) - Body ground	Brake pedal released	Below 1 V
   E5-12 (ST1-) - Body ground	Brake pedal depressed	Below 1 V
   E5-12 (ST1-) - Body ground	Brake pedal released	10 to 14 V

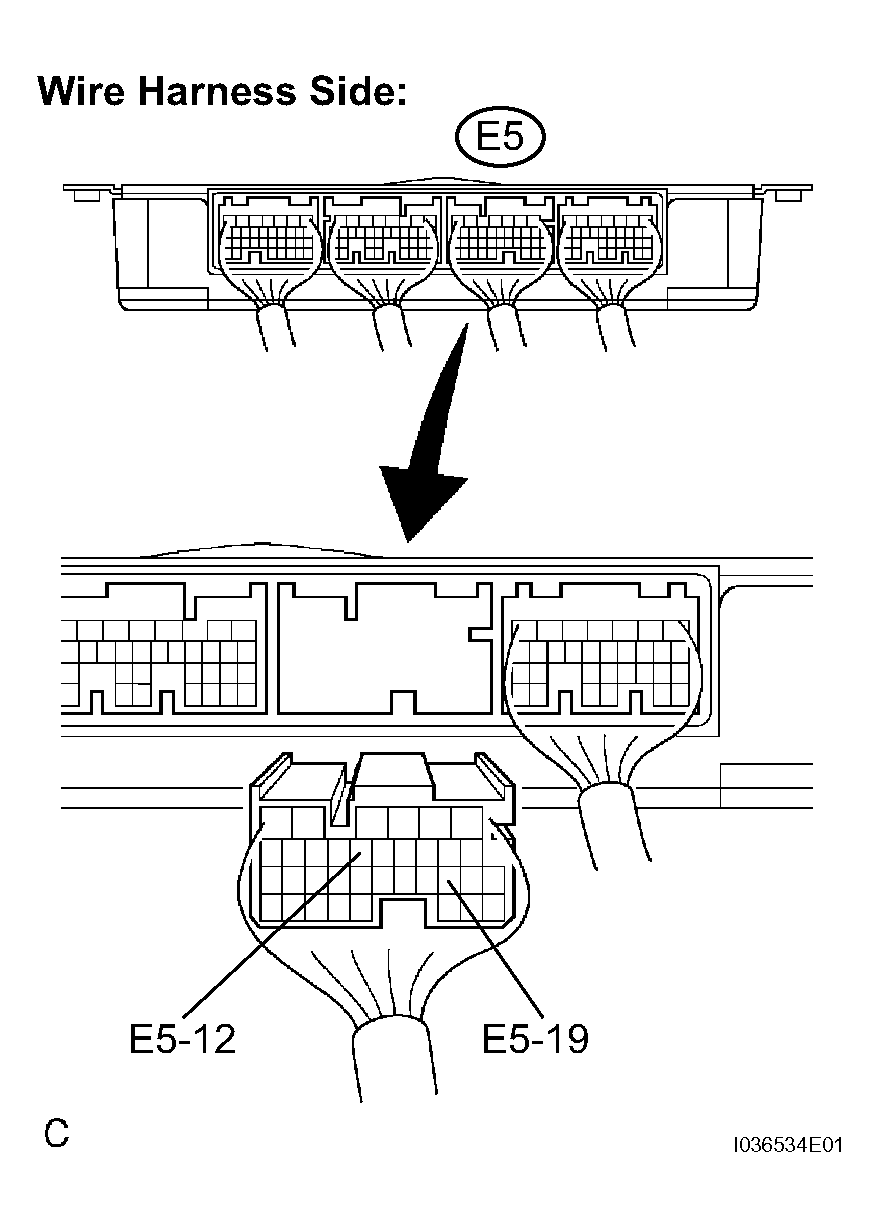

   Fig 3: Inspecting ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE ECM
