Communication Circuit between ECM and Cruise Control ECU: Wiring Diagram

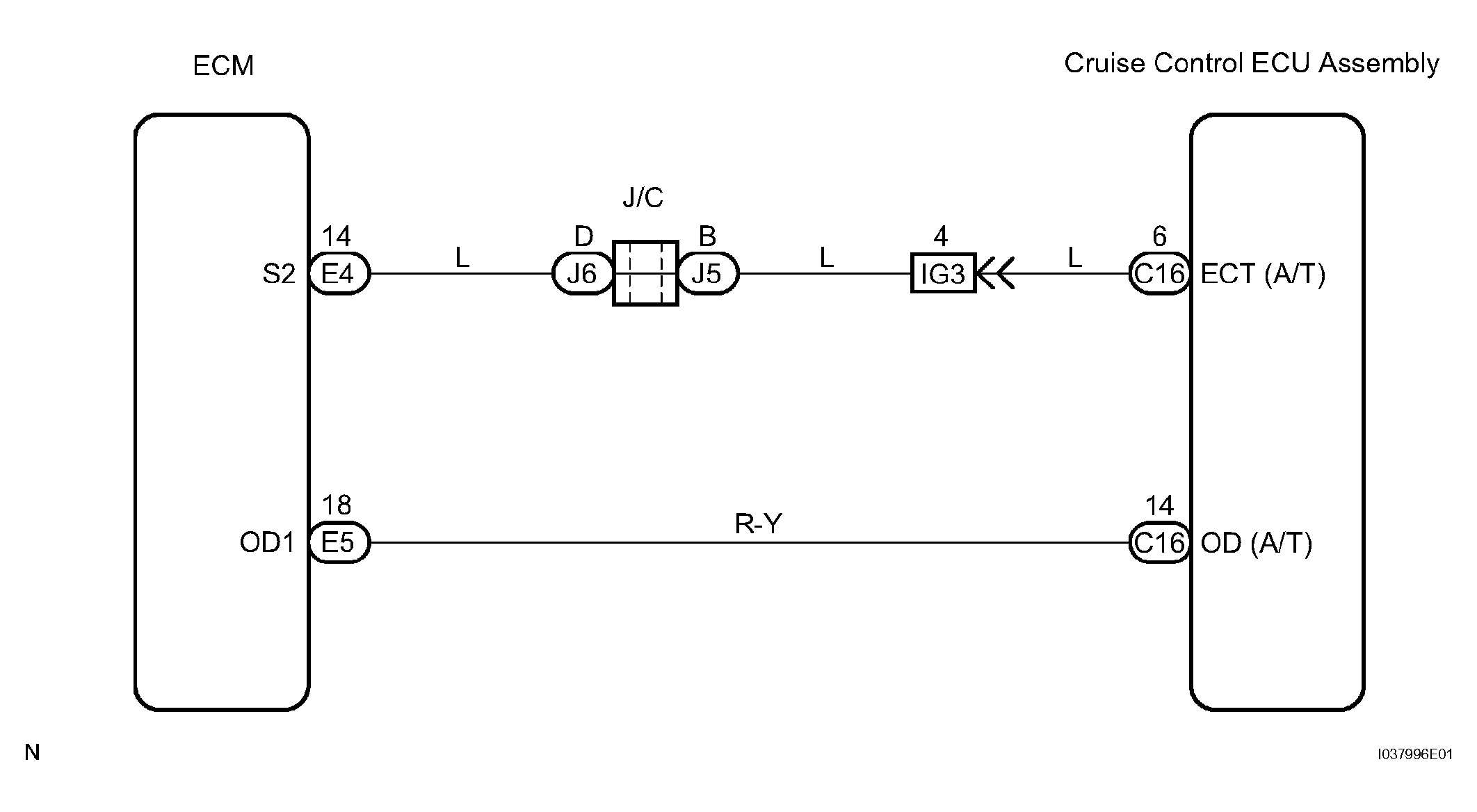

Fig 1: Communication Circuit Between ECM And Cruise Control ECU Wiring Diagram
G04466417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
