DTC 51: Idle Signal Circuit: Wiring Diagram

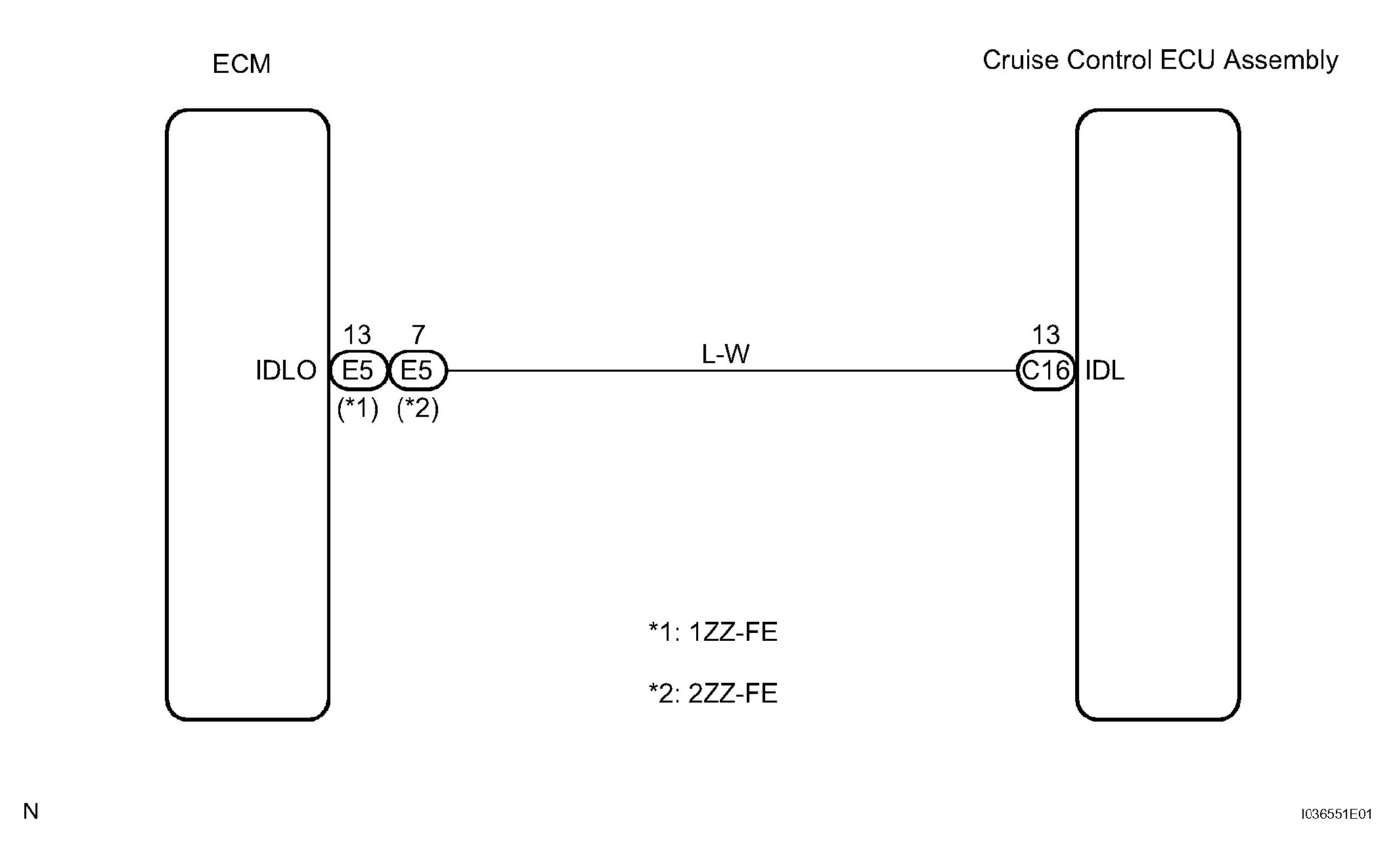

Fig 1: Idle Signal Circuit Wiring Diagram
G04466395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
