Park / Neutral Position Switch Circuit: Wiring Diagram

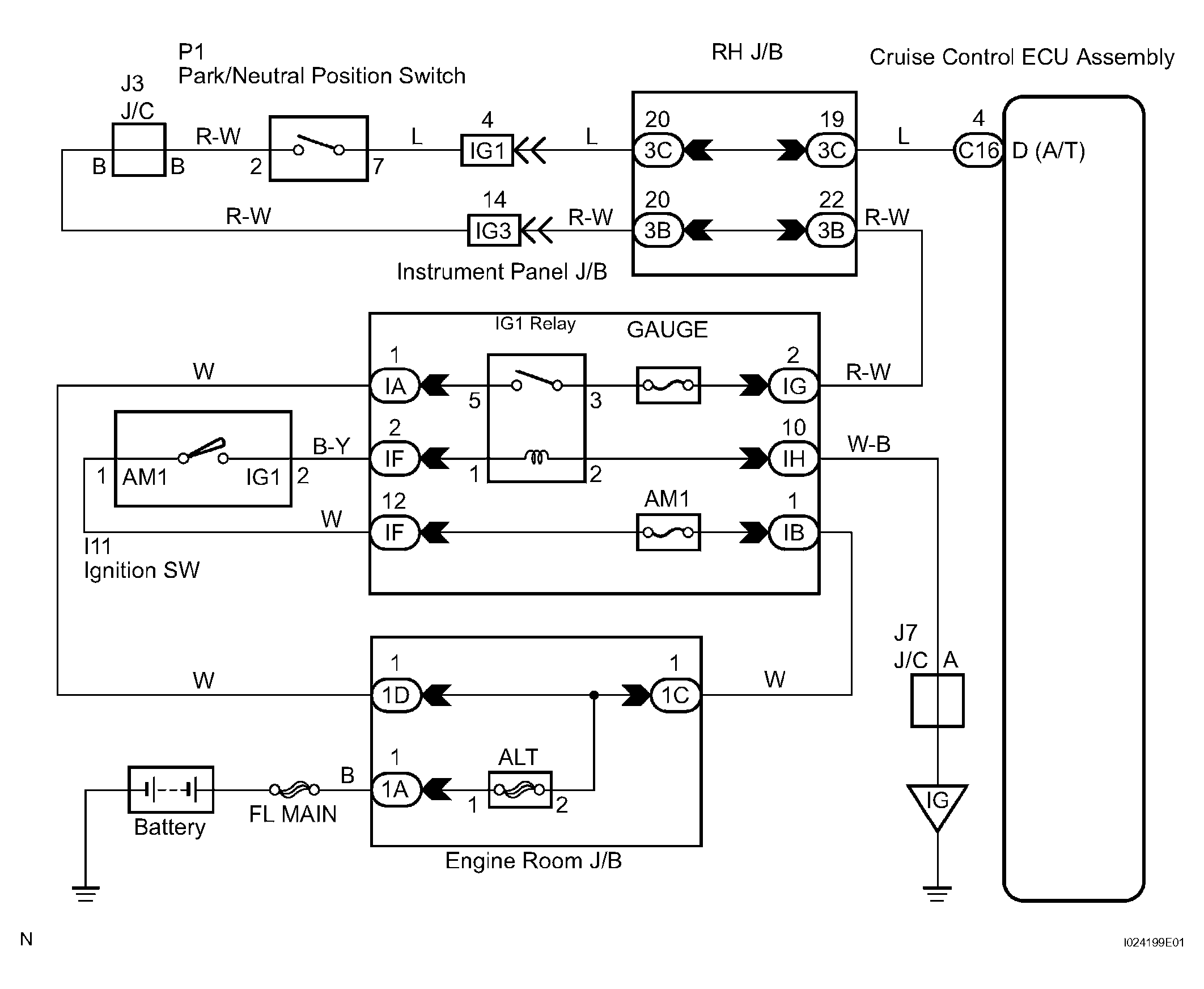

Fig 1: Park/Neutral Position Switch Circuit Wiring Diagram
G04466401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
