Inspection Procedure

HINT:

Read freeze frame data using an intelligent tester or OBD II scan tool. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

1. CHECK FUSE (ETCS)
   1. Remove the ETCS fuse from the engine room R/B.

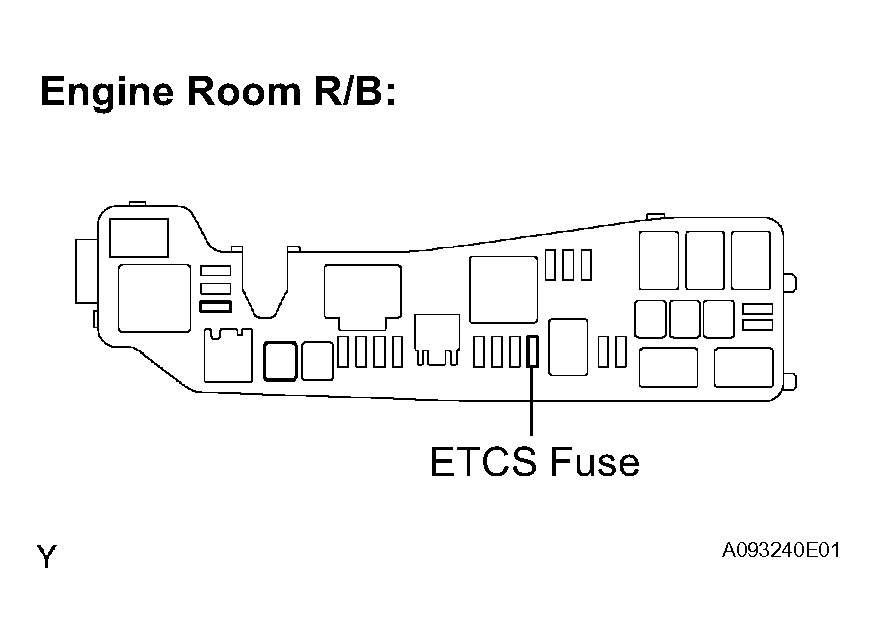

      Fig 1: Checking Fuse (ETCS)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check the ETCS fuse resistance.

      Standard resistance: Below 1

   3. Reinstall the ETCS fuse.

   NG : REPLACE FUSE

   OK : Go to Next Step

2. INSPECT ECM (+BM VOLTAGE)
   1. Measure the voltage between the terminals of the E3 and E5 ECM connectors.

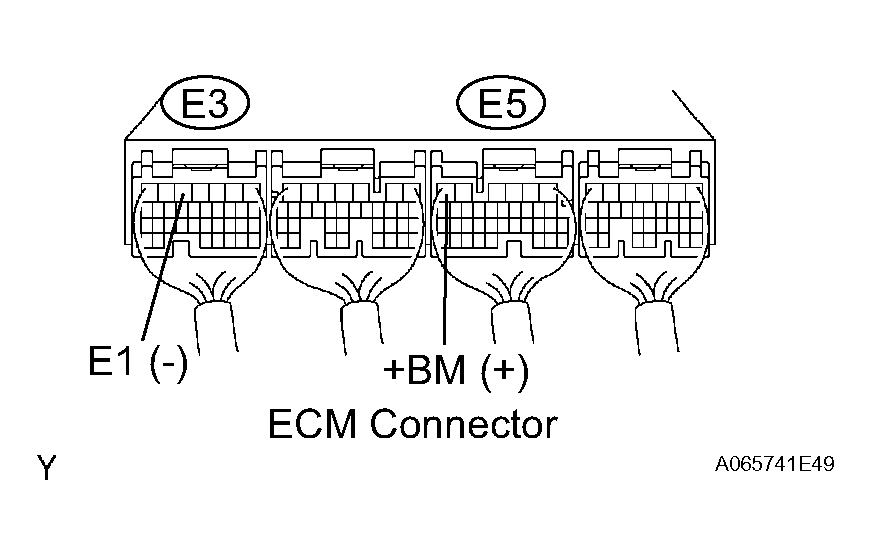

      Fig 2: Inspecting ECM (+BM Voltage)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      TESTER CONNECTIONS - SPECIFIED CONDITIONS



      Tester Connections	Specified Conditions
      +BM (E5-6) - E1 (E3-5)	Between 9 V and 14 V

   OK : CHECK FOR INTERMITTENT PROBLEMS

   NG : Go to Next Step

3. CHECK HARNESS AND CONNECTOR (ECM - ETCS FUSE, ETCS FUSE - BATTERY)
   1. Check the harness and connector between the ETCS fuse and ECM.
      1. Remove the ETCS fuse from the engine room R/B.
      2. Disconnect the E5 ECM connector.
      3. Check the resistance.

         Standard resistance (Check for open)

         TESTER CONNECTIONS - SPECIFIED CONDITIONS (CHECK FOR OPEN)



         Tester Connections	Specified Conditions
         ETCS fuse (2) - +BM (E5-6)	Below 1

         Standard resistance (Check for short)

         TESTER CONNECTIONS - SPECIFIED CONDITIONS (CHECK FOR SHORT)



         Tester Connections	Specified Conditions
         ETCS fuse (2) or +BM (E5-6) - Body ground	10 k or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the ECM connector.
   2. Check the harness and connector between the ETCS fuse and positive battery cable.
      1. Remove the ETCS fuse from the engine room R/B.
      2. Disconnect the positive battery cable.
      3. Check the resistance.

         Standard resistance (Check for open)

         TESTER CONNECTIONS - SPECIFIED CONDITIONS (CHECK FOR OPEN)



         Tester Connections	Specified Conditions
         Positive battery cable terminal - ETCS fuse (1)	Below 1

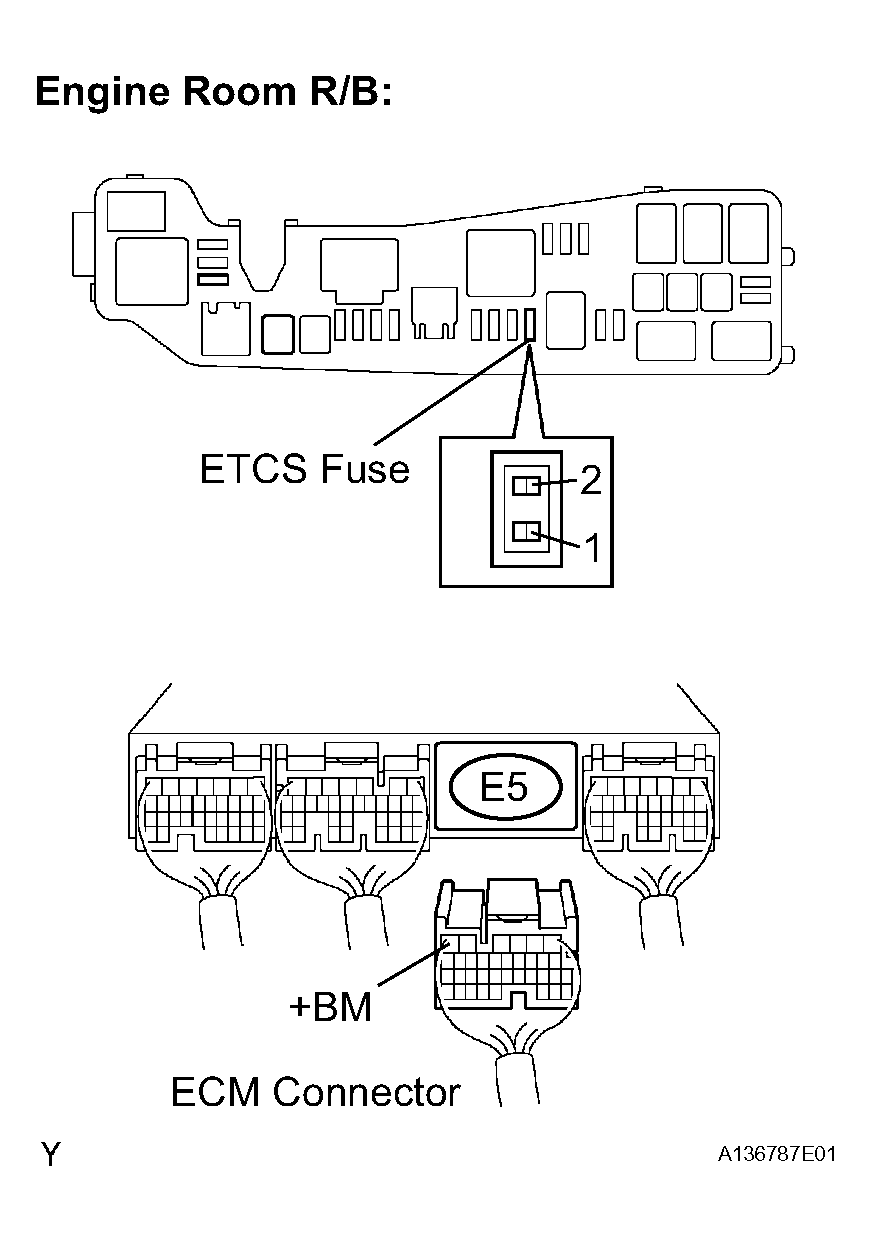

         Fig 3: Checking Harness And Connector (ECM - ETCS Fuse, ETCS Fuse - Battery)

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Standard resistance (Check for short)

         TESTER CONNECTIONS - SPECIFIED CONDITIONS (CHECK FOR SHORT)



         Tester Connections	Specified Conditions
         Positive battery cable terminal or ETCS fuse (1) - Body ground	10 k or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the positive battery cable.

   NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK : REPLACE ECM
