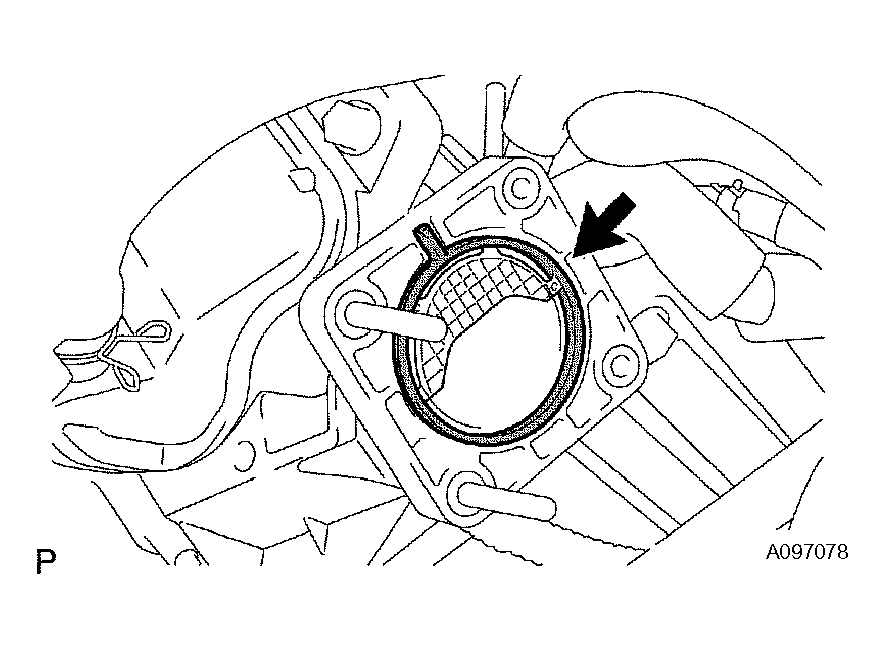

THROTTLE BODY (for 2WD): Installation

1. Install a new gasket onto the intake manifold.
   Fig 1: Installing Gasket Onto Intake Manifold

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

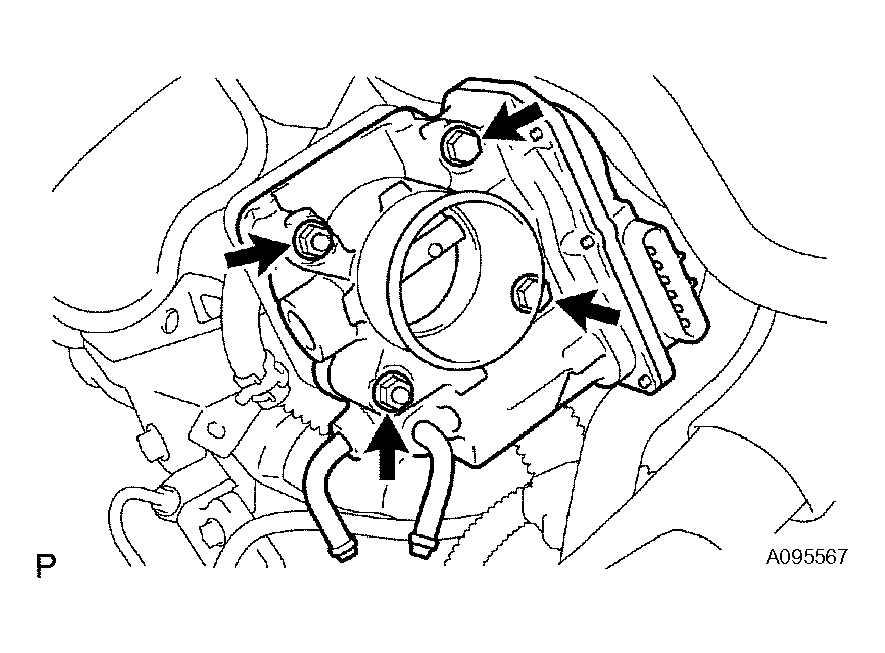

2. Install the throttle body with the 2 bolts and 2 nuts.

   Torque: 9.0 N*m (90 kgf*cm, 80 in.*lbf)

   Fig 2: Installing Throttle Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

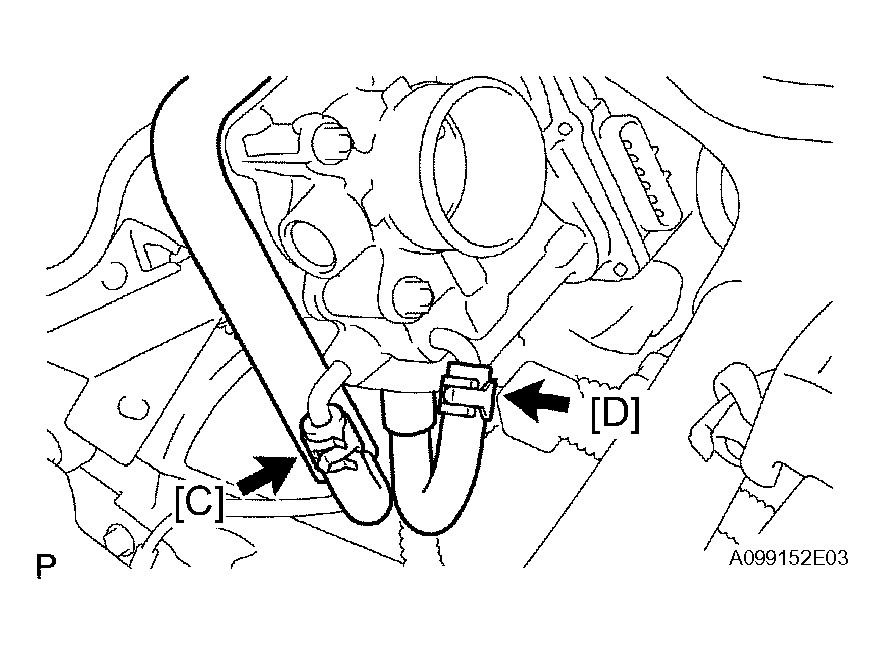

3. Connect the water by-pass hose No. 2 [C] to the throttle body.
4. Connect the water by pass hose [D] to the throttle body.
   Fig 3: Connecting Water By-Pass Hose To Throttle Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

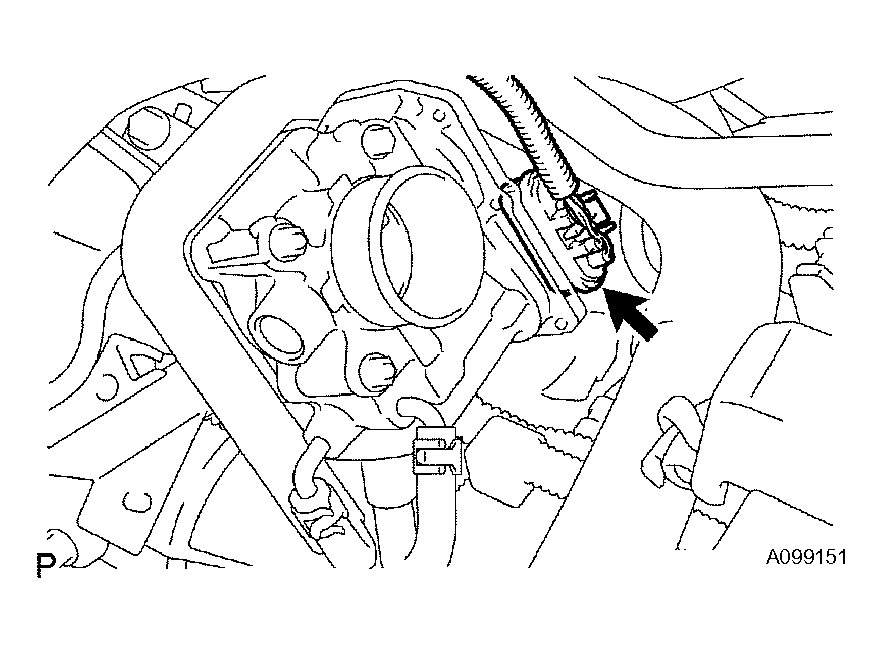

5. Connect the throttle control motor connector.
   Fig 4: Connecting Throttle Control Motor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

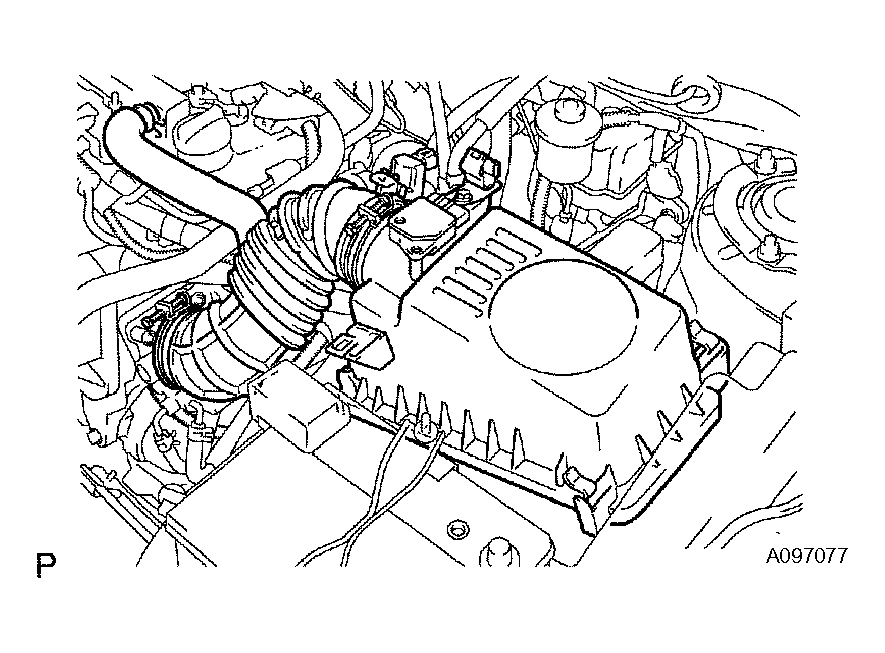

1. Install the air cleaner cap together with the air cleaner hose.
   Fig 5: Installing Air Cleaner Cap Together With Air Cleaner Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

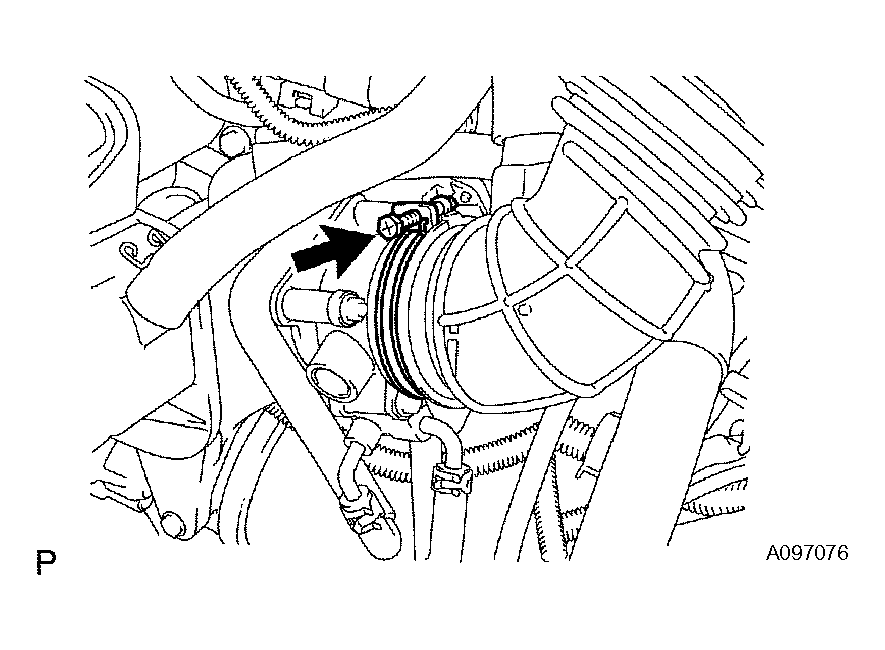

2. Tighten the hose clamp bolt, then connect the air cleaner hose.

   Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

   Fig 6: Tightening Hose Clamp Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

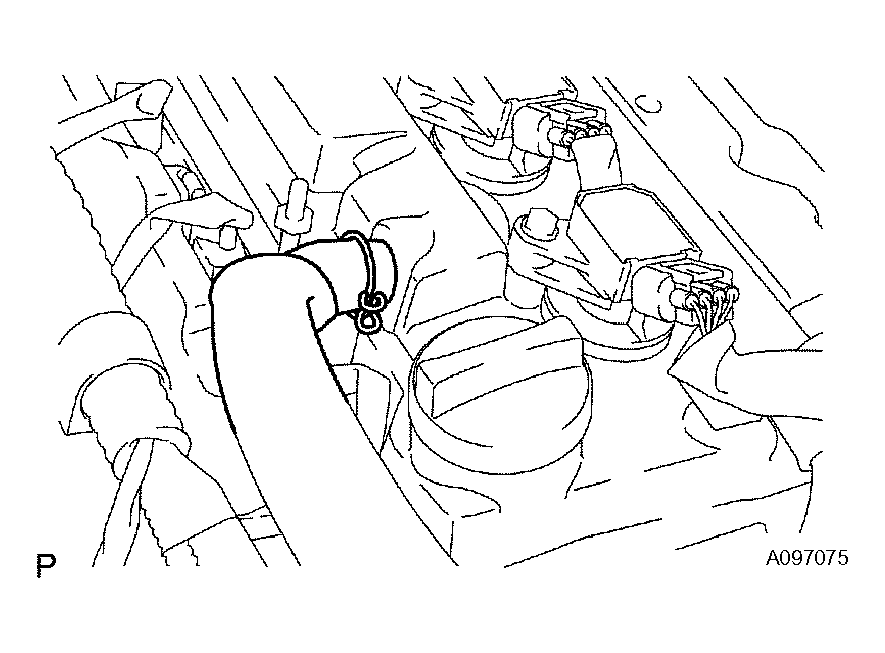

3. Connect the ventilation hose No. 1 to the cylinder head cover.
   Fig 7: Connecting Ventilation Hose No. 1 To Cylinder Head Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

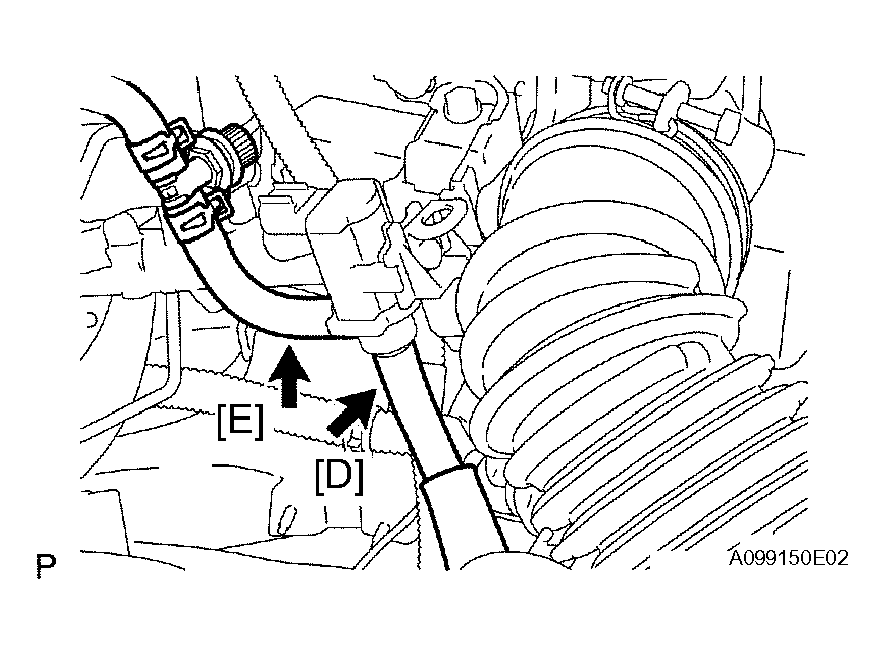

4. Connect the fuel vapor feed hose No. 3 [D] to the VSV.
5. Connect the fuel vapor feed hose No. 1 [E] to the VSV.
   Fig 8: Connecting Fuel Vapor Feed Hose To VSV

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

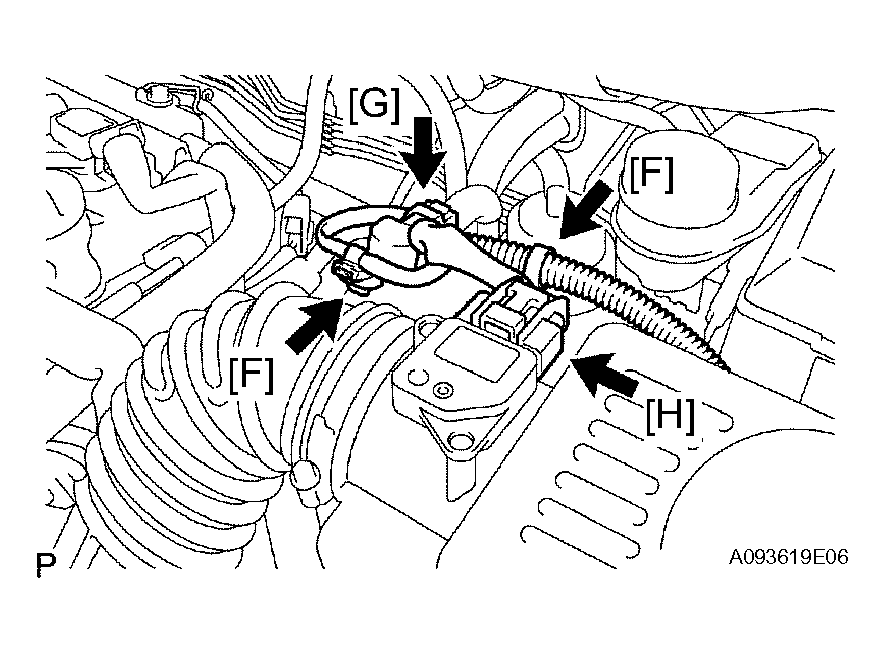

6. Install the 2 wire harness clamps [F].
7. Connect the VSV connector [G].
8. Connect the mass air flow meter connector [H].

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

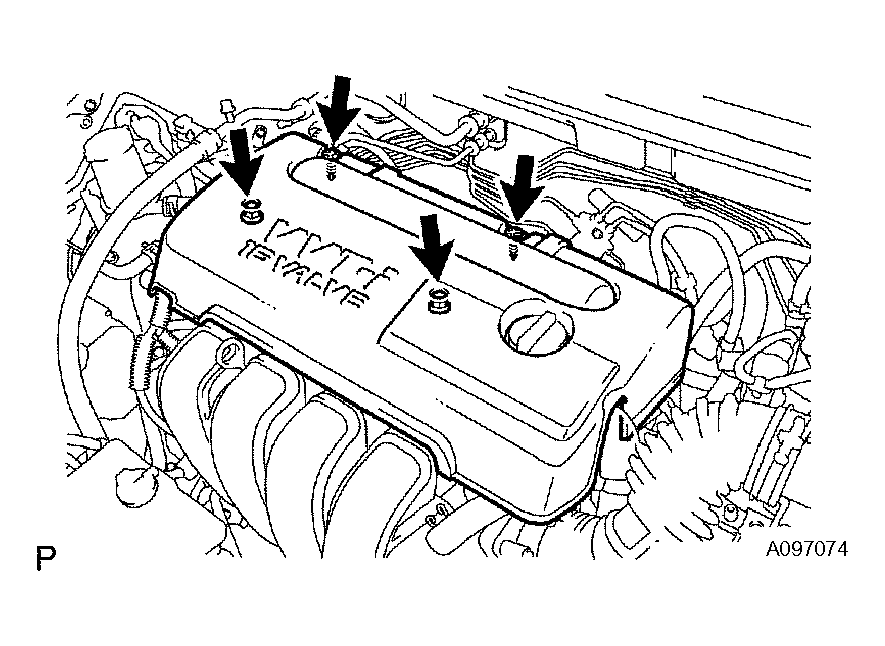

1. Install the cylinder head cover No. 2 with the 2 nuts and 2 clips.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

   Fig 10: Installing Cylinder Head Cover No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
