Circuit Opening Relay: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT E.F.I. CIRCUIT OPENING RELAY ASSEMBLY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Resistance

        RESISTANCE SPECIFIED CONDITIONS

        Tester Connection Specified Condition
        3 - 5 10 k or higher
        3 - 5 Below 1 (Apply battery voltage to terminal 1 and 2)

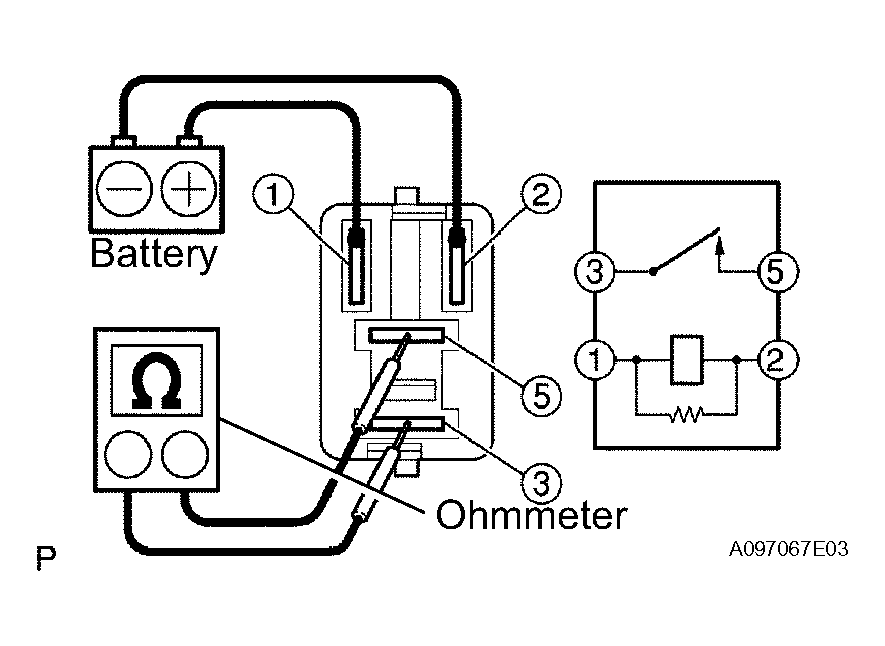

        Fig 1: Checking E.F.I. Circuit Opening Relay Resistance
        G04460909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        If the result is not as specified, replace the E.F.I. circuit opening relay assembly.
