DTC P0115 Engine Coolant Temperature Circuit; DTC P0117 Engine Coolant Temperature Circuit Low Input; DTC P0118 Engine Coolant Temperature Circuit High Input
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0115 Engine Coolant Temperature Circuit; DTC P0117 Engine Coolant Temperature Circuit Low Input; DTC P0118 Engine Coolant Temperature Circuit High Input: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

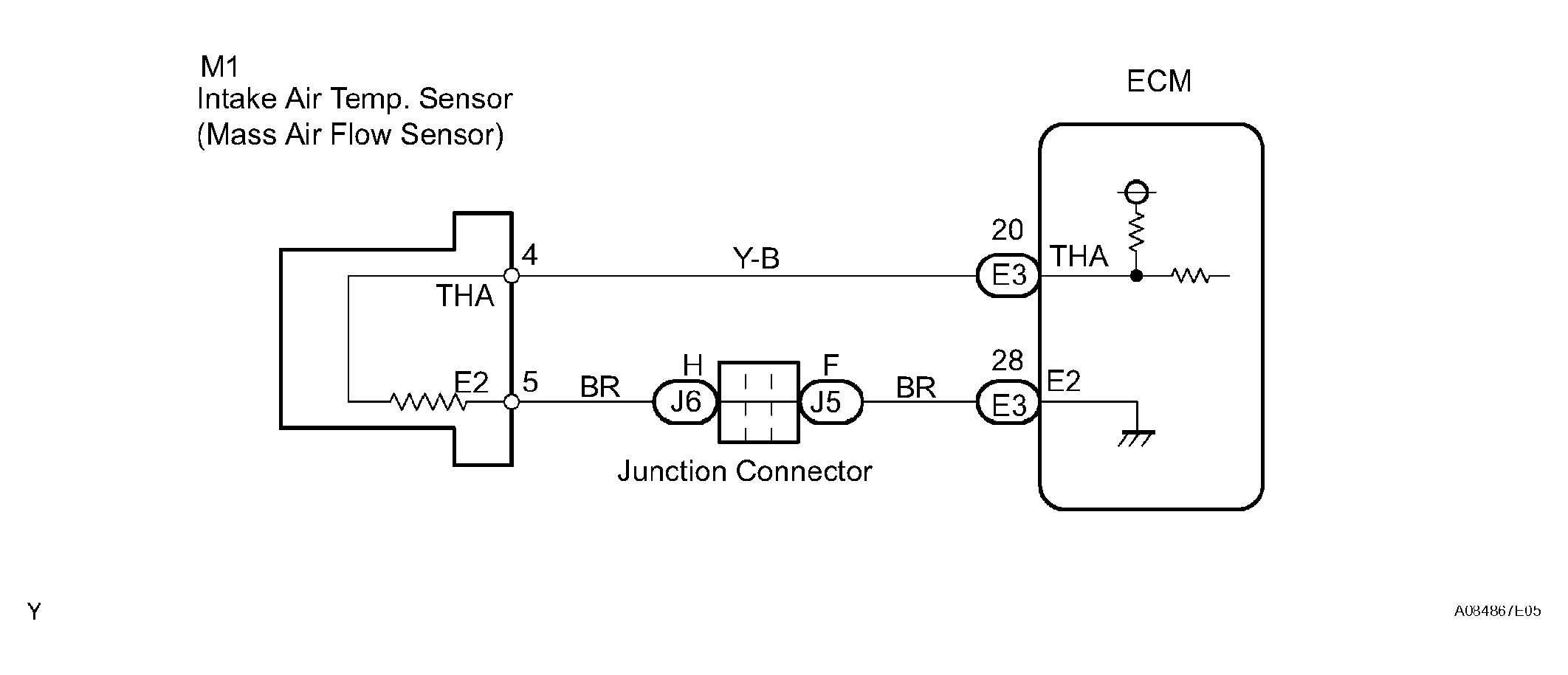

Fig 1: Intake Air Temperature Sensor - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
