Fuel Pump Control Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

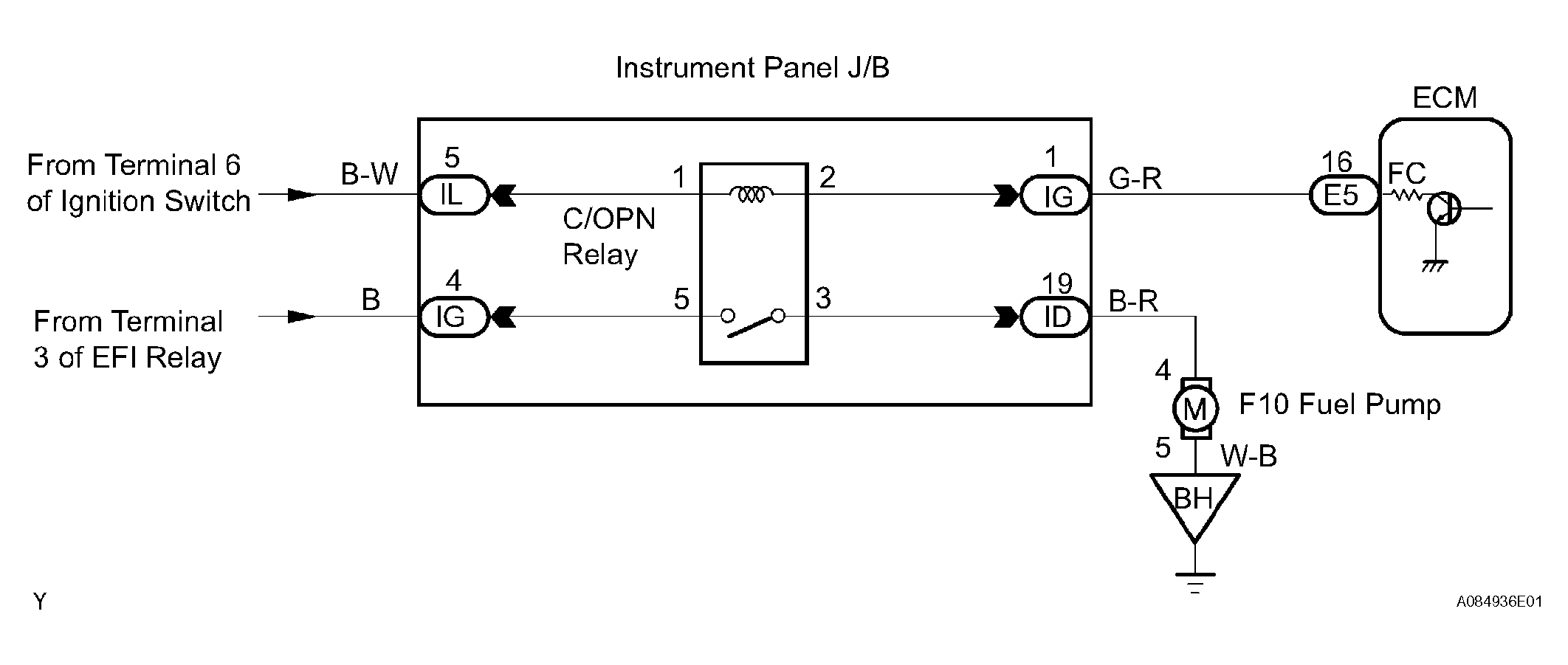

Fig 1: Fuel Pump - Wiring Diagram
G04460870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
